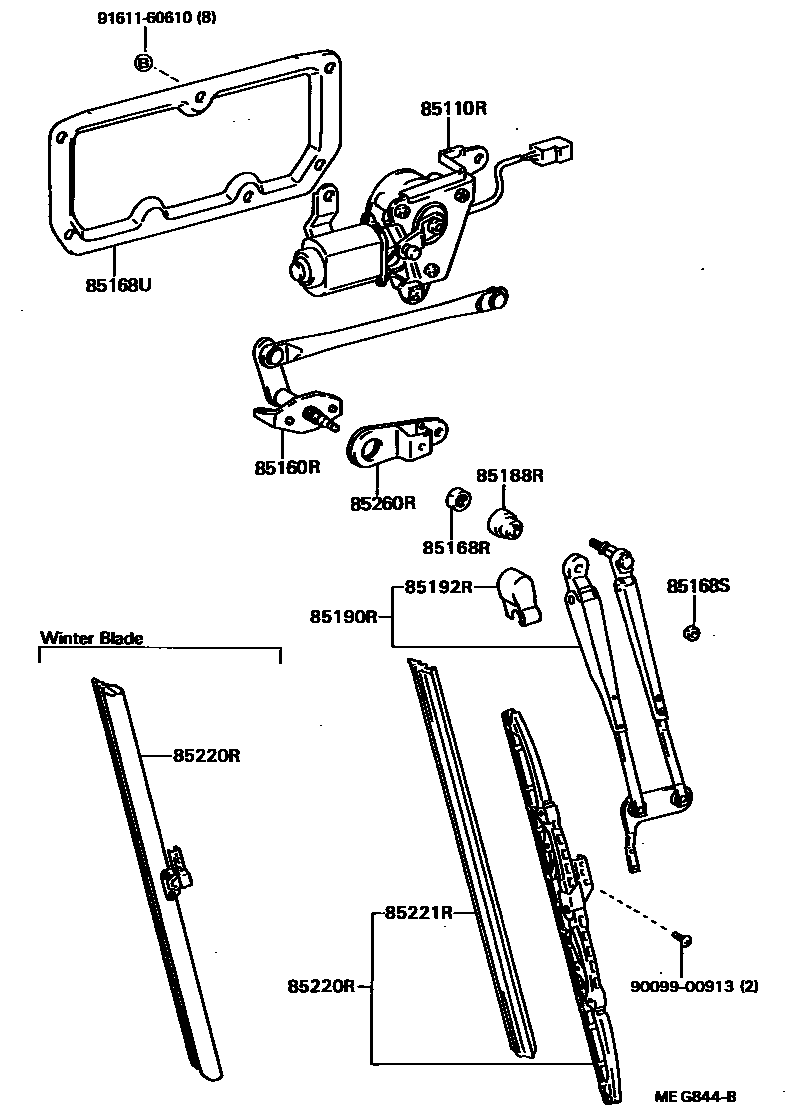

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85120-90F00iBU60..D198601-199505

85160RLINK ASSY, REAR WIPER

main85160-90F01iBU60198601-199505

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main85186-90D00iBU60198601-199505

85168SNUT, REAR WIPER LINK PIVOT, NO.2

main90179-06158iBU60198601-199505

85168UCOVER, REAR WIPER

main85298-90D00iBU60198601-199505

85188RCAP, REAR WIPER PIVOT, NO.1

main85178-90D00iBU60198601-199505

85190RARM ASSY, REAR WIPER

main85190-90F01iBU60..D198601-199505

85192RCOVER, REAR WIPER ARM

main85192-14020iBU60..D198601-199505

sub85192-13060

85220RBLADE ASSY, REAR WIPER

main85220-16530iBU60..D198805-199008

sub85242-90D00

main85220-16530iBU60198601-198805

sub85242-90D00

main85220-90D00iBU60..D198610-198805

WINTER BLADE

sub85291-90D00

main85220-90D00iBU60..D198805-199003

sub85291-90D00

main85242-90D00iBU60..D..CBU199008-199505

main85291-90D00iBU60..D..CBU199003-199505

85221RBLADE, REAR WIPER

main85221-14210iBU60198601-199505

sub85214-24H90

85260RLINK ASSY, REAR WIPER, NO.2

main85150-90D00iBU60198601-199505

9009900913

main90099-00913

9161160610

main91611-60610

13 parts on this diagram · 1 diagram in section
