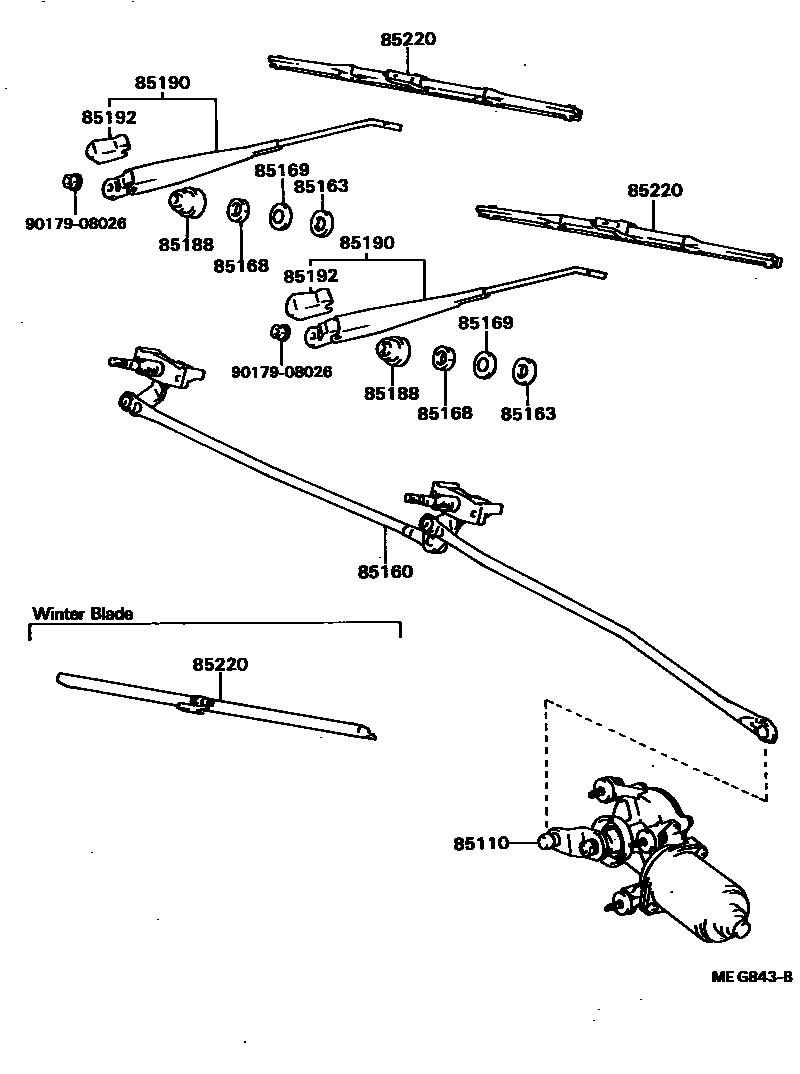

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-90F01iBU60198601-199505

85160LINK ASSY, WINDSHIELD WIPER

main85160-90F00iBU60198601-199505

85163PACKING, WINDSHIELD WIPER PIVOT

main85185-95010×2iBU60198601-199505

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-95010×2iBU60198601-199505

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85169-95010×2iBU60198601-199505

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85135-95010×2iBU60198601-199505

85190ARM ASSY, WINDSHIELD WIPER

main85190-90F00×2iBU60198601-199505

85192COVER, WINDSHIELD WIPER ARM

main85195-95J00iBU60198603-199505

85220BLADE ASSY, WINDSHIELD WIPER

main85212-90F00×2iBU60199008-199505

main85220-16590×2iBU60198601-199008

main85220-90F00×2iBU60..D..CBU; BU60..N;BU60..IV3198805-199505

9017908026

main90179-08026

10 parts on this diagram · 1 diagram in section
