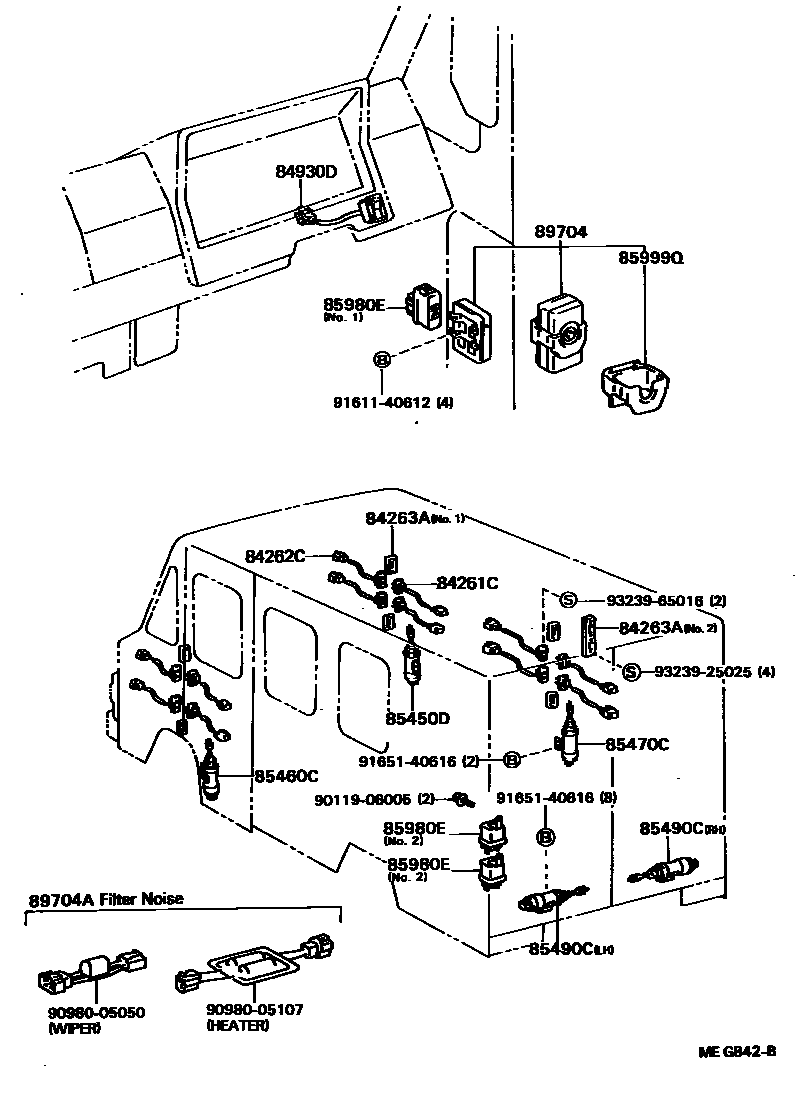

WIRELESS DOOR LOCK

84261CJUNCTION, SLIDE DOOR CONTROL,MALE NO.1

main84261-90D00×6iBU60198601-198805

84262CJUNCTION, SLIDE DOOR CONTROL, FEMALE, NO.1

main84262-95J00×6iBU60198601-198805

84263ACUSION, SLIDE DOOR JUNCTION

main84263-90D00×6iBU60..N..3D; BU60..N..4D198805-199505

main84264-90D01iBU60..N198601-198805

NO.2

84930DSWITCH, DOOR CONTROL

main84931-95400iBU60..N198601-199505

85450DSOLENOID ASSY, DOOR CONTROL, FRONT RH

main85450-90F00iBU60..N198601-199505

85460CSOLENOID ASSY, DOOR CONTROL, FRONT LH

main85450-90F00iBU60..N198601-199505

85470CSOLENOID ASSY, DOOR CONTROL, REAR RH

main85450-90F02iBU60..N..4D198601-198805

85490CSOLENOID ASSY, BACK DOOR CONTROL

main85450-36020iBU60..N199101-199505

main85450-90F00×2iBU60..N..3D; BU60..N..4D198805-199505

main85450-90F04iBU60..N198601-198805

LH

85980ERELAY ASSY, DOOR CONTROL

main85980-90A00×2iBU60..N198805-199505

NO.2

main85980-90F00iBU60..N198805-199505

NO.1

85999QBRACKET, DOOR CONTROL TRANSMITTER

main85999-36040iBU60..N198701-198805

DENSO

main85999-36050iBU60..N198701-198805

TOKAIRIKA

89704CONTROL SET, WIRELESS DOOR LOCK

main89704-37020iBU60..N199403-199505

main89704-90F00iBU60..N198601-198805

DENSO

main89704-90F01iBU60..N198601-198805

TOKAIRIKA

main89704-90F02iBU60..N198904-199505

main89704-90F03iBU60..N198909-199403

89704AFILTER, NOISE(FOR WIRELESS DOOR LOCK)

main90980-05050iBU60..N198601-198805

WIPER

main90980-05107iBU60..N198601-198805

HEATER

9011906005

main90119-06005

9098005050

main90980-05050

9098005107

main90980-05107

9161140612

main91611-40612

9165140616

main91651-40616

9323925025

main93239-25025

9323965016

main93239-65016

19 parts on this diagram · 1 diagram in section
