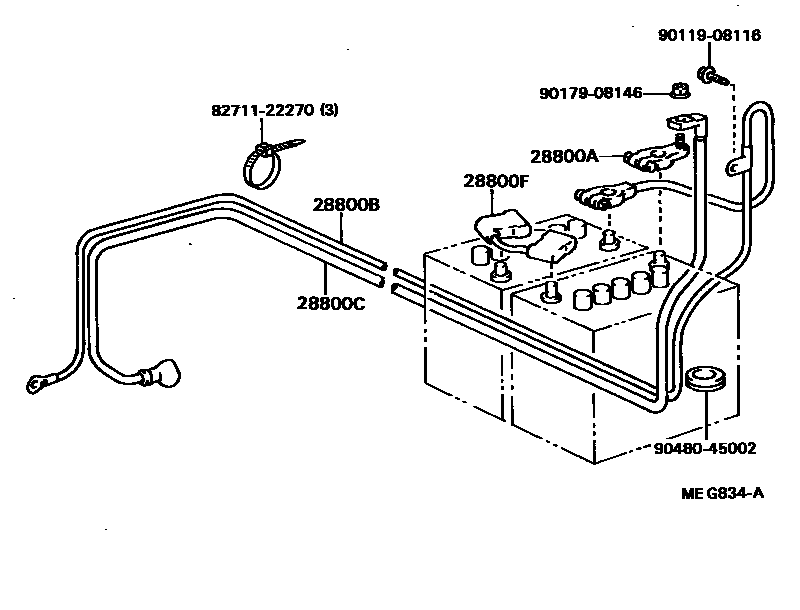

Toyota DYNA/TOYOACE QUICK — BATTERY & BATTERY CABLE
28800ATERMINAL, BATTERY POSITIVE
28800BCABLE, BATTERY TO GROUND
28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
28800FCABLE, BATTERY TO BATTERY
8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9011908116
9017908146
9048045002
8 parts on this diagram · 1 diagram in section
BATTERY & BATTERY CABLE for Toyota DYNA/TOYOACE QUICK
This section contains 8 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota DYNA/TOYOACE QUICK. Key components include: TERMINAL, BATTERY POSITIVE, CABLE, BATTERY TO GROUND, CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH), CABLE, BATTERY TO BATTERY, WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER).
