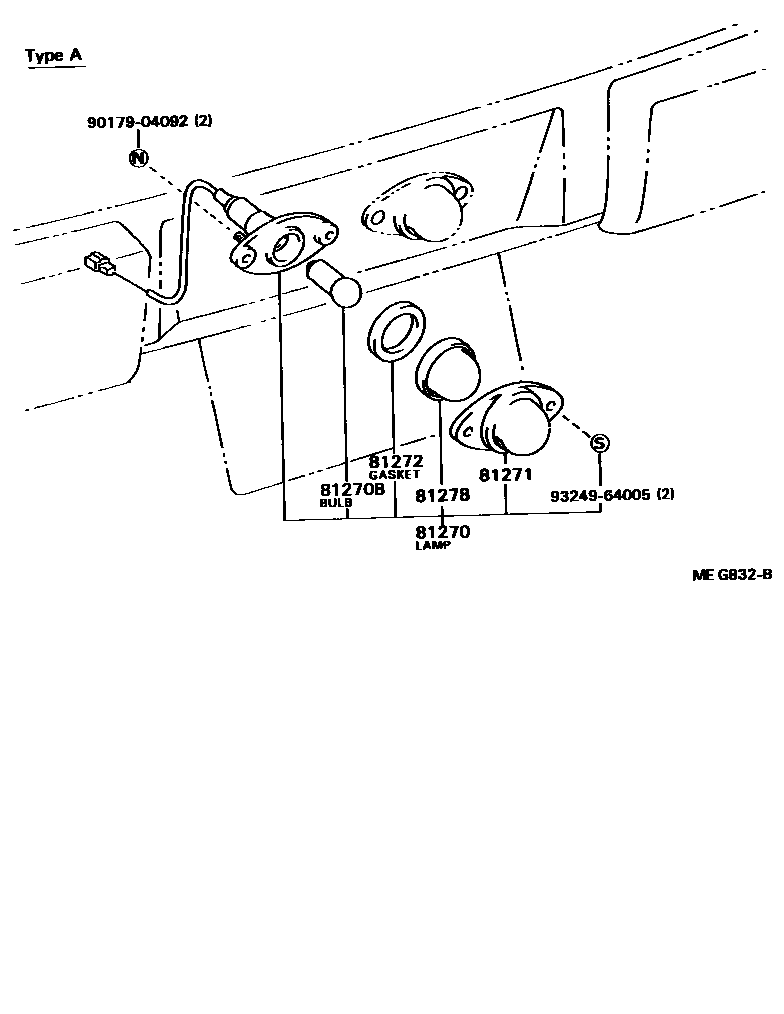

REAR LICENSE PLATE LAMP

0001 1 0003 1

81270LAMP ASSY, LICENSE PLATE

main81270-90F00iBU60198601-198805

RH,TYPE B

main81270-90F01×2iBU60198601-198805

TYPE A

main81270-90F02×2iBU60..N198808-199505

main81690-90F00iBU60..N198805-198808

LH,TYPE B

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-16016×2iBU60198601-198805

main99132-11120×2iBU60198601-199505

12V 12W,TYPE A

81271LENS, LICENSE PLATE LAMP

main81271-10010×2iBU60198702-198805

TYPE A

main81271-10011×2iBU60198601-198702

TYPE A

main81271-17010×2iBU60..N198808-199505

81272GASKET, LICENSE PLATE LAMP LENS

main81272-10010×2iBU60..D198808-199505

81278COVER, LICENSE PLATE LAMP

main81271-16030iBU60..N198805-198808

RH,TYPE B

main81278-10011×2iBU60..D198808-199008

main81278-12230×2iBU60..N198808-199505

main81278-27010×2iBU60198601-198805

TYPE A

main81691-16020iBU60..N198805-198808

LH,TYPE B

9017904092

main90179-04092

9324964005

main93249-64005

7 parts on this diagram · 2 diagrams in section
