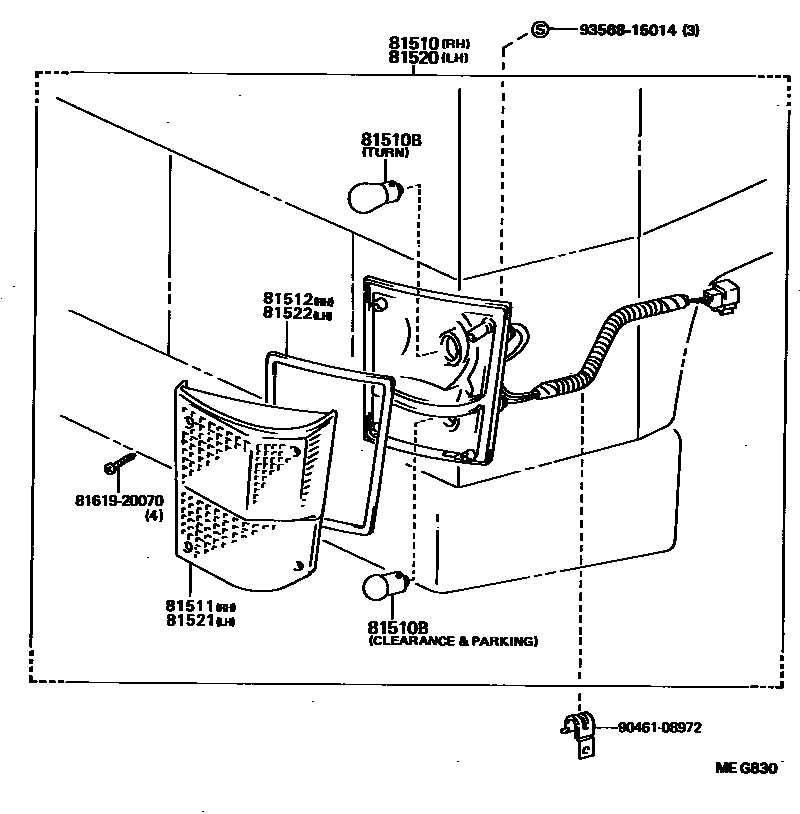

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-90F00iBU60198601-199505

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-16016×2iBU60198601-198805

main99134-11250×2iBU60198601-198805

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-90D00iBU60198601-199505

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-90B00iBU60198601-199505

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-90F00iBU60198601-199505

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-90D00iBU60198601-199505

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-90B00iBU60198601-199505

8161920070

main81619-20070

9046108972

main90461-08972

9356815014

main93568-15014

10 parts on this diagram · 1 diagram in section
