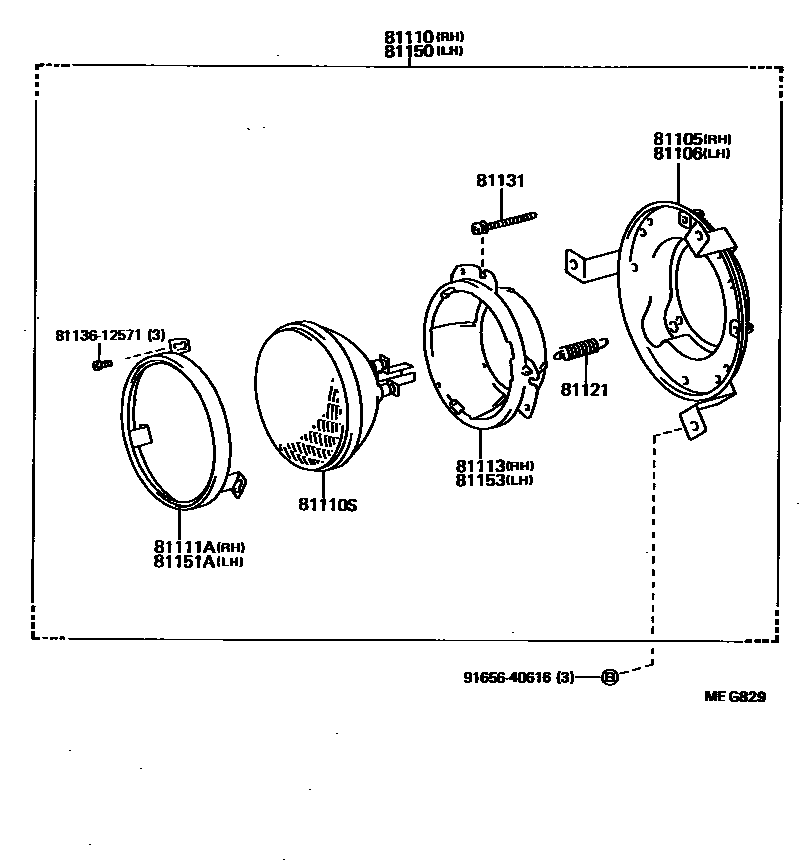

HEADLAMP

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-90D00iBU60198601-199505

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-90D00iBU60198601-199505

81110HEADLAMP ASSY, RH

main81110-90F00iBU60198601-199505

81110SSEALED BEAM UNIT, NO.1

main90981-06014×2iBU60198601-198805

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-89117iBU60198601-199505

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-90A02iBU60198601-198805

81121SPRING, HEADLAMP TENSION

main81121-62010×2iBU60198601-199505

81131SCREW, HEADLAMP ADJUSTING

main81131-10031×4iBU60198601-199505

81150HEADLAMP ASSY, LH

main81150-90F00iBU60198601-199505

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-89117iBU60198601-199505

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-90A02iBU60198601-198805

8113612571PROTECTOR, HEADLAMP, NO.1 RH

main81136-12571

9165640616

main91656-40616

13 parts on this diagram · 1 diagram in section
