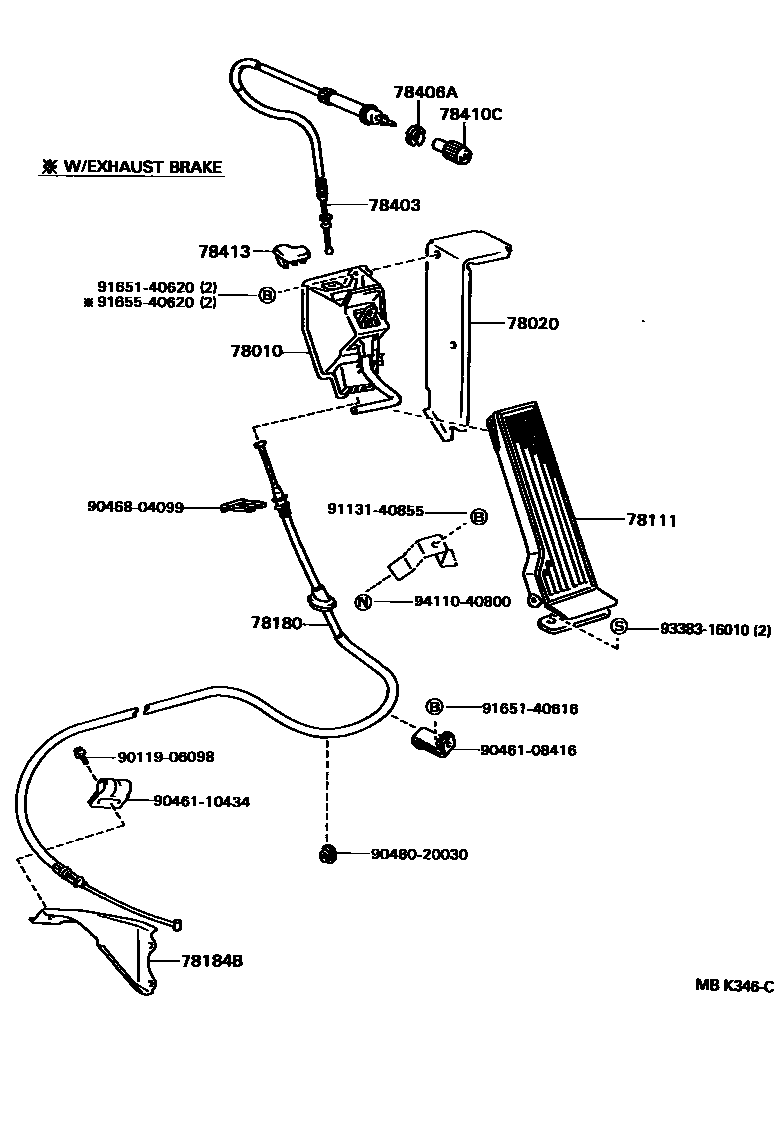

ACCELERATOR LINK

78010LINK, ACCELERATOR

main78202-90D00iBU60198910-199505

main78202-95010iBU60198601-198910

main78202-95400iBU60198805-199505

78020BRACKET ASSY, ACCELERATOR CONTROL

main78114-90D03iBU60198601-199505

78111PEDAL, ACCELERATOR

main78110-95410iBU60198601-199505

78180WIRE ASSY, ACCELERATOR

main78150-90F00iBU60198601-198808

main78150-90F01iBU60198808-199505

main78150-90F02iBU60..N..3D198904

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-90B02iBU60198601-199505

78403CABLE SUB-ASSY, THROTTLE CONTROL

main78404-90D00iBU60198601-199505

78406ANUT, HOLDER (FOR THROTTLE BUTTON)

main78314-95010iBU60198601-199505

78410CKNOB, THROTTLE CABLE

main78411-22010iBU60198601-199505

78413COVER, THROTTLE CONTROL CABLE

main78413-95701iBU60198910-199505

9011906098

main90119-06098

9046108416

main90461-08416

9046110434

main90461-10434

9046804099

main90468-04099

9048020030

main90480-20030

9113140855

main91131-40855

9165140616

main91651-40616

9165140620

main91651-40620

9165540620

main91655-40620

9338316010

main93383-16010

9411040800

main94110-40800

20 parts on this diagram · 1 diagram in section
