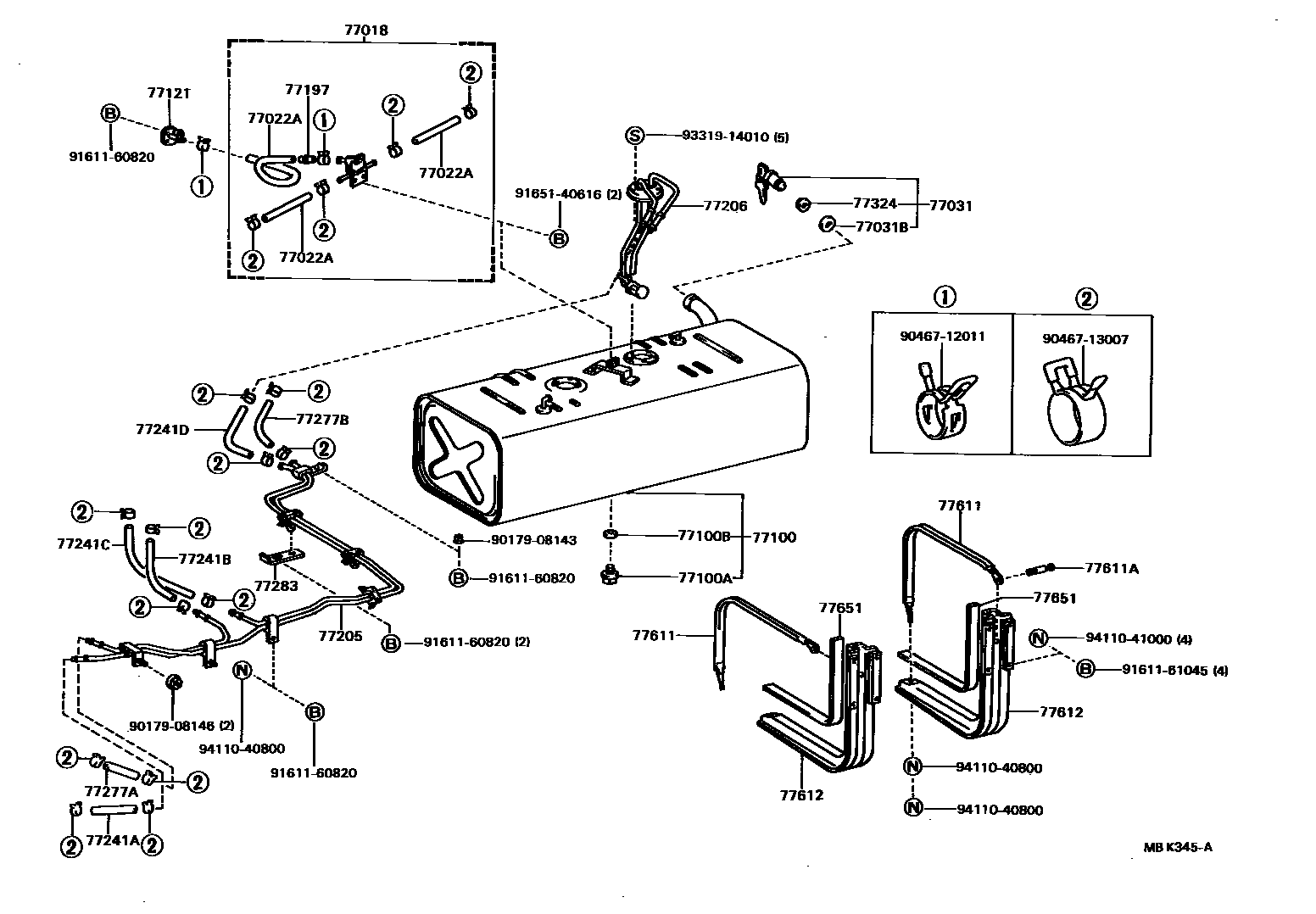

FUEL TANK & TUBE

0001 1 0002 1

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-36071iBU60198601-198708

main77018-36230iBU60198708-199505

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95332-06040iBU60198601-198708

sub95333-06040

main95332-08030iBU60198601-198805

sub95333-08030

main95333-08030iBU60198805-199505

77031CAP ASSY, FUEL TANK

main69058-89102iBU60198601-199505

sub69058-25010

77031BGASKET (FOR FUEL TANK CAP)

main77316-12031iBU60198601-199505

77100TANK ASSY, FUEL

main77001-36820iBU60198601-198708

main77001-36821iBU60198708-199505

sub77001-36822

main77001-3B160iBU60..N..3D198902-199505

77100APLUG(FOR FUEL TANK)

main90105-12018iBU60198601-198708

main90105-12116iBU60198708-199505

77100BGASKET(FOR FUEL TANK)

main90430-12245iBU60198601-199505

77121PROTECTOR, FUEL TUBE

main77243-36010iBU60198601-198708

77197ORIFICE, FUEL VAPOR

main90977-02001iBU60198601-198805

77205TUBE SUB-ASSY, FUEL MAIN

main77205-36420iBU60198601-198808

main77205-36421iBU60198808-199505

main77205-36650iBU60..N..3D198902-199505

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-36111iBU60198601-198808

main77017-36340iBU60198808-199505

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main23271-56050iBU60198601-198808

main23271-56060iBU60198808-199505

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main95332-08030iBU60198601-198805

sub95333-08030

main95332-10030iBU60198808-199505

main95333-08030iBU60198805-198808

77241CHOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)

main95332-08040iBU60198601-198805

sub95333-08040

main95332-10040iBU60198808-199505

main95333-08040iBU60198805-198808

sub95337-08040

77241DHOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1)

main95332-06022iBU60..N..3D199008-199505

sub95332-06030

main95332-08030iBU60198601-198805

sub95333-08030

main95333-06030iBU60198808-199505

sub95338-06030

main95333-08030iBU60198805-198808

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main23273-56010iBU60198808-199505

main95332-08020iBU60198601-198805

sub95333-08020

main95333-08020iBU60198805-198808

sub95337-08020

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main95332-08030iBU60198601-198805

sub95333-08030

main95332-10022iBU60..N..3D199008-199505

sub95332-10030

main95332-10024iBU60198808-199505

sub95332-10030

main95333-08030iBU60198805-198808

77283BRACKET, FUEL TUBE

main58266-36200iBU60198601-199505

sub58266-36201

77324SPRING, FUEL TANK CAP

main77324-12011iBU60198601-199505

77611BAND, FUEL TANK

main77601-36090iBU60198601-199505

77611APIN (FOR FUEL TANK BAND)

main77629-36010iBU60198601-199505

77612BRACKET SUB-ASSY, FUEL TANK

main77501-36090iBU60198601-198708

main77501-36091iBU60198708-199505

sub77501-25100

main77501-36091iBU60..N..3D198902

sub77501-25100

main77501-36110iBU60..N..3D198902

sub77501-25110

77651PACKING, FUEL TANK BRACKET

main77651-36110iBU60198601-199505

9017908143

main90179-08143

9017908146

main90179-08146

9046712011

main90467-12011

9046713007

main90467-13007

9161160820

main91611-60820

9161161045

main91611-61045

9165140616

main91651-40616

9331914010

main93319-14010

9411040800

main94110-40800

9411041000

main94110-41000

33 parts on this diagram · 2 diagrams in section
