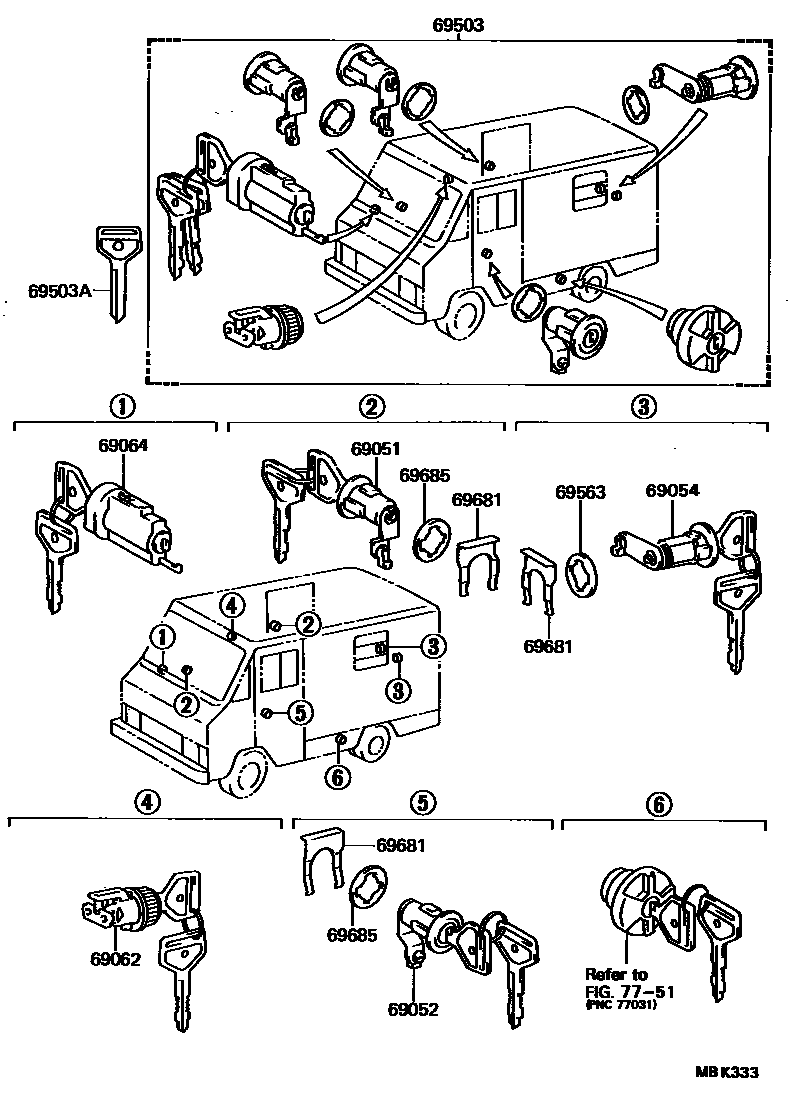

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69053-26010iBU60199404-199505

main69053-95701iBU60..3D198601-199404

sub69053-26010

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69054-26040iBU60199404-199505

main69054-95701iBU60198601-199404

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69009-90D00iBU60198805-199505

main69009-90D00iBU60198601-198805

LH

main69055-90D00iBU60198805-199505

main69055-90D00iBU60198601-198805

RH

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-20020iBU60198601-198805

sub69056-30030

main69056-30030iBU60198805-199505

sub69056-90P01

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-20010iBU60198601-199505

sub69057-25010

69503CYLINDER SET, LOCK

main69005-90D03iBU60..N..3D198805-199505

sub69005-25030

main69005-90D03iBU60..3D198601-198805

W/OVER HEAD GLOVE BOX

sub69005-25030

main69005-90D04iBU60..D..4D198805-199505

main69005-90D04iBU60..4D198601-198805

W/OVER HEAD GLOVE BOX

main69005-90D06iBU60..D..3D198601-199505

main69005-90D07iBU60..D..4D198601-199505

69503AKEY, BLANK

main90999-00066iBU60198601-199505

sub90999-00085

69563PAD, BACK DOOR LOCK CYLINDER

main69513-90A00iBU60198601-199505

sub69513-38010

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-20040iBU60..3D198601-199505

69685PAD, LOCK CYLINDER

main69513-12020iBU60..3D198601-199505

7751

11 parts on this diagram · 1 diagram in section
