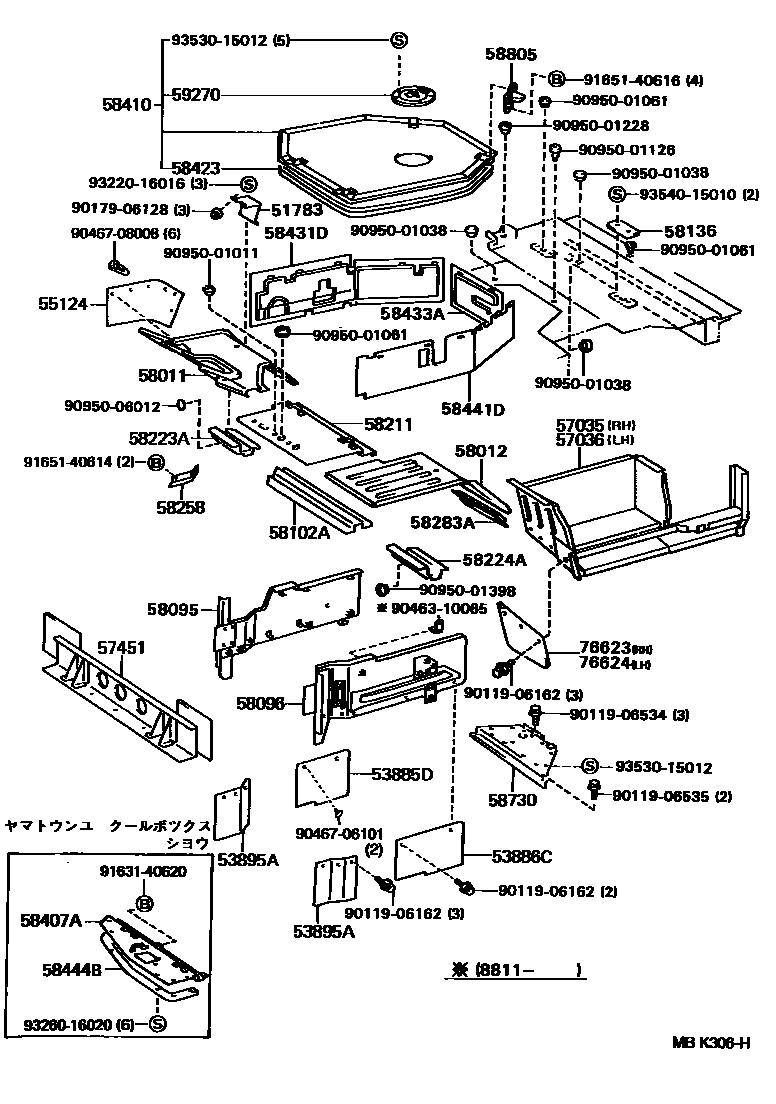

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1

51783PANEL, STEP, FRONT RH

main51783-90F00iBU60198708-199505

53885DSHIELD, SIDE FLOOR APRON, REAR

main53885-36010iBU60199102-199505

main53885-90F00iBU60198601-199102

53886CSEAL, FENDER APRON MUDGUARD, LH

main53886-36010iBU60199102-199309

main53886-37010iBU60199309-199505

main53886-90F00iBU60198601-199102

53895ASHIELD, SIDE FLOOR APRON, FRONT

main53895-36010iBU60199102-199505

main53895-90F00iBU60198601-198805

RH

main53895-90F01iBU60..N..3D198710-199505

main53896-36010iBU60199102-199505

main53896-90F00iBU60198805-199102

55124SHIELD, STEERING SUPPORT

main55124-90F00iBU60198601-199505

57035PANEL SUB-ASSY, FRONT STEP, RH

main57035-90F00iBU60198601-198708

main57035-90F01iBU60198708-198804

main57035-90F02iBU60..N..3D198710-198804

main57035-90F03iBU60198804-198910

main57035-90F04iBU60..N..3D198804-198902

main57035-90F05iBU60..N..3D198902-198910

main57035-90F06iBU60198910-199008

main57035-90F07iBU60..N..3D198910-199008

main57035-90F08iBU60..CBU199008-199505

main57035-90F09iBU60..N..3D199008-199505

57036PANEL SUB-ASSY, FRONT STEP, LH

main57036-37010iBU60..CBU199309-199505

main57036-90F00iBU60198601-198708

main57036-90F01iBU60198601-198708

main57036-90F02iBU60198708-198804

main57036-90F03iBU60198708-198804

main57036-90F04iBU60..N..3D198710-198804

main57036-90F05iBU60..N..3D198710-198804

main57036-90F06iBU60198804-198910

main57036-90F07iBU60198804-198805

main57036-90F08iBU60..N..3D198804-199505

main57036-90F09iBU60..N..3D198804-198910

main57036-90F10iBU60198910-199008

main57036-90F11iBU60198910-199008

main57036-90F12iBU60..N..3D198910-199505

main57036-90F13iBU60..CBU199008-199505

main57036-90F14iBU60..CBU199008-199505

main57036-90F15iBU60..N..3D199008-199505

57451MEMBER, FRONT FLOOR CROSS

main57408-90F00iBU60198601-198609

main57408-90F01iBU60198609-199505

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main58011-90F00iBU60198601-198708

main58011-90F01iBU60198708-198910

main58011-90F02iBU60..N..3D198904-198910

main58011-90F03iBU60..CBU198910-199505

main58011-90F04iBU60..N..3D198910-199008

main58011-90F05iBU60..N..3D199008-199505

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main58012-90F00iBU60198601-198910

main58012-90F01iBU60198805-198910

main58012-90F02iBU60..N..3D198904-198910

main58012-90F03iBU60..CBU198910-199505

main58012-90F05iBU60..N..3D198910-199008

main58012-90F06iBU60..N..3D199008-199505

58095PANEL SUB-ASSY, FRONT FLOOR APRON, RH

main58095-90F00iBU60198601-198607

main58095-90F01iBU60..CBU198805-199505

main58095-90F03iBU60..N..3D198904-199505

58096PANEL SUB-ASSY, FRONT FLOOR APRON, LH

main58096-90F00iBU60198601-198811

main58096-90F01iBU60..CBU198811-199505

main58096-90F02iBU60..N..3D198902-198904

main58096-90F03iBU60..N..3D198904-199008

main58096-90F04iBU60..N..3D199008-199505

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-90F00iBU60198601-198805

58136COVER, FRONT FLOOR HOLE

main58136-90D00×2iBU60198601-198611

58211PANEL, FRONT FLOOR

main58008-90F00iBU60198601-198805

main58008-90F01iBU60..N..3D198710-198904

main58008-90F02iBU60..N..3D198904-198910

main58008-90F03iBU60..N..3D198910-199505

58223AREINFORCEMENT, FLOOR SIDE PANEL, RH

main58277-90F00iBU60198601-198805

58224AREINFORCEMENT, FLOOR SIDE PANEL, LH

main58287-90F00iBU60198601-198805

58258PLATE, WATER GUARD, NO.1

main58258-90F00iBU60198601-199505

58283AREINFORCEMENT, NO.2 SEAT, FRONT LH

main58283-90F00iBU60198601-198805

58407ACOVER SUB-ASSY, ENGINE SERVICE HOLE SUB

main58407-90F00iBU60..N..3D198904-199505

58410COVER, ENGINE SERVICE HOLE

main58720-37010iBU60..D199109-199505

main58720-37020iBU60..D; BU60..N199109-199505

main58720-37030iBU60..N..3D199109-199505

main58720-90F00iBU60..D198601-198605

main58720-90F01iBU60198601-198605

W/INSPECTION HOLE

main58720-90F02iBU60..D198605-199109

main58720-90F03iBU60..D; BU60..N198805-199109

main58720-90F04iBU60..N..3D198904-199008

main58720-90F05iBU60..N..3D199008-199109

58423PACKING, ENGINE SERVICE HOLE COVER, NO.2

main58733-90D01iBU60198601-198605

main58733-90D02iBU60198605-199505

main58733-90D03iBU60..N..3D198904-199505

58431DSILENCER, ENGINE ROOM SIDE, FRONT RH

main58431-36010iBU60199106-199505

main58431-90F00iBU60198601-199106

58433ASILENCER, ENGINE ROOM SIDE END

main58433-36010iBU60199106-199505

main58433-90F00iBU60198601-199106

58441DSILENCER, ENGING ROOM SIDE, FRONT LH

main58441-36010iBU60199106-199505

main58441-90F00iBU60198601-198605

main58441-90F01iBU60198605-199106

58444BPACKING, ENGINE SUB COVER

main58444-90D00iBU60..N..3D198904-199505

58730COVER ASSY, ENGINE SERVICE, REAR

main58730-37010iBU60..N..3D199109-199505

main58730-90F00iBU60..N..3D198904-199109

58805CATCH SUB-ASSY, ENGINE SERVICE HOLE COVER

main58804-90740×2iBU60198601-199008

main58804-90740-D0×2iBU60199008-199505

BROWN,TRIM4#

59270COVER ASSY, INSPECTION HOLE

main59270-90D02iBU60198601-198605

main59270-90D03iBU60198605-199505

76623MUDGUARD, FRONT BODY, REAR RH

main76621-90F00iBU60198601-199505

76624MUDGUARD, FRONT BODY, REAR LH

main76622-90F00iBU60198601-199505

9011906162

main90119-06162

9011906534

main90119-06534

9011906535

main90119-06535

9017906128

main90179-06128

9046310065

main90463-10065

9046706101

main90467-06101

9046708008

main90467-08008

9095001011

main90950-01011

9095001038

main90950-01038

9095001061

main90950-01061

9095001126

main90950-01126

9095001228

main90950-01228

9095001398

main90950-01398

9095006012

main90950-06012

9163140620

main91631-40620

9165140614

main91651-40614

9165140616

main91651-40616

9322016016

main93220-16016

9326016020

main93260-16020

9353015012

main93530-15012

9354015010

main93540-15010

52 parts on this diagram · 2 diagrams in section
