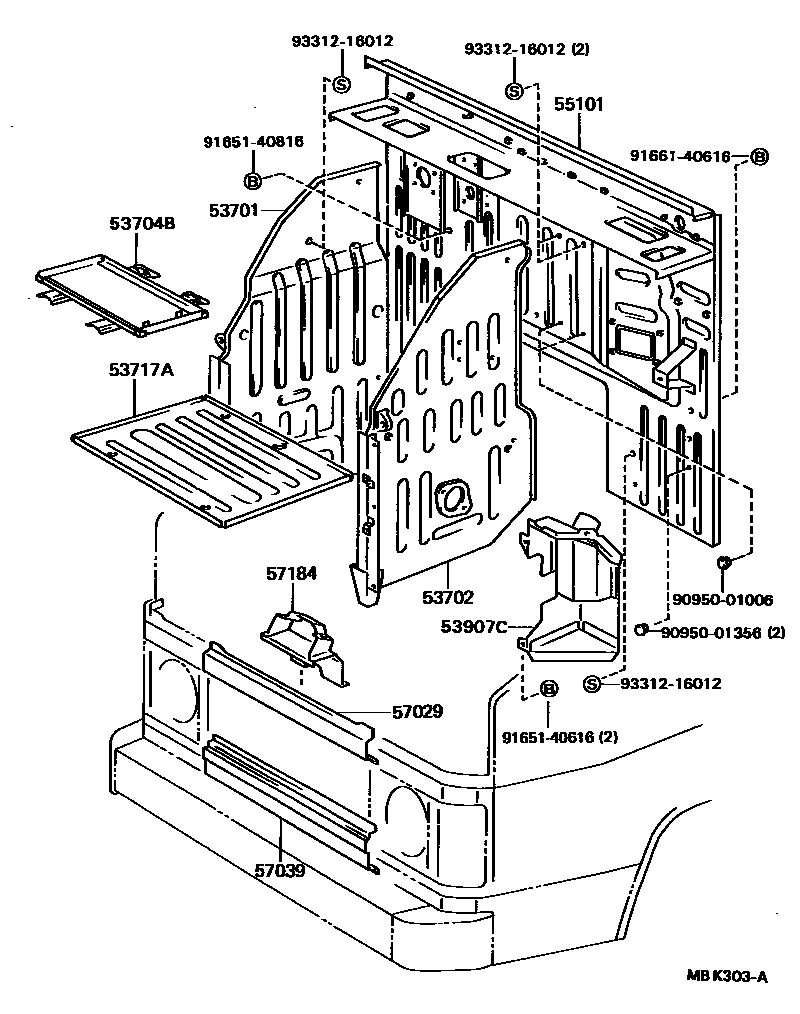

FRONT FENDER APRON & DASH PANEL

53701APRON SUB-ASSY, FRONT FENDER, RH

main53707-90F00iBU60..D198601-198708

main53707-90F01iBU60198601-198708

W/CLUCH BOOSTER

main53707-90F04iBU60..D198708-199008

main53707-90F05iBU60..D; BU60..N198805-199008

53702APRON SUB-ASSY, FRONT FENDER, LH

main53708-90F00iBU60198601-198708

main53708-90F03iBU60198708-198808

main53708-90F05iBU60198808-199505

53704BSUPPORT SUB-ASSY, BATTERY, LH

main53704-90F00iBU60198601-199008

main53704-90F02iBU60199008-199505

53717APLATE, FENDER APRON

main53701-90F00iBU60198601-199008

main53701-90F01iBU60199008-199505

53907CBOX SUB-ASSY, AIR INLET

main53907-90D01iBU60198601-198809

55101PANEL SUB-ASSY, DASH

main55101-37010iBU60199208-199505

main55101-90F00iBU60..D198601-198704

main55101-90F01iBU60198601-198704

W/CLUCH BOOSTER

main55101-90F02iBU60..D198704-198708

main55101-90F03iBU60198704-198708

W/CLUCH BOSTER

main55101-90F04iBU60..D198708-198808

main55101-90F05iBU60..D; BU60..N198805-198808

main55101-90F06iBU60..D198808-199008

main55101-90F07iBU60..D; BU60..N198808-199008

main55101-90F08iBU60..N..3D199008-199505

57029MEMBER SUB-ASSY, FRONT CROSS, UPPER

main57161-90F00iBU60198601-199008

main57161-90F01iBU60199008-199505

57039MEMBER SUB-ASSY, FRONT CROSS, LOWER

main57162-90F00iBU60198601-198702

main57162-90F01iBU60198702-199008

main57162-90F02iBU60199008-199505

57184BRACKET, HOOD LOCK SUPPORT

main57184-90D01iBU60198601-199008

main57184-90D02iBU60199008-199505

9095001006

main90950-01006

9095001356

main90950-01356

9165140616

main91651-40616

9165140816

main91651-40816

9166140616

main91661-40616

9331216012

main93312-16012

15 parts on this diagram · 1 diagram in section
