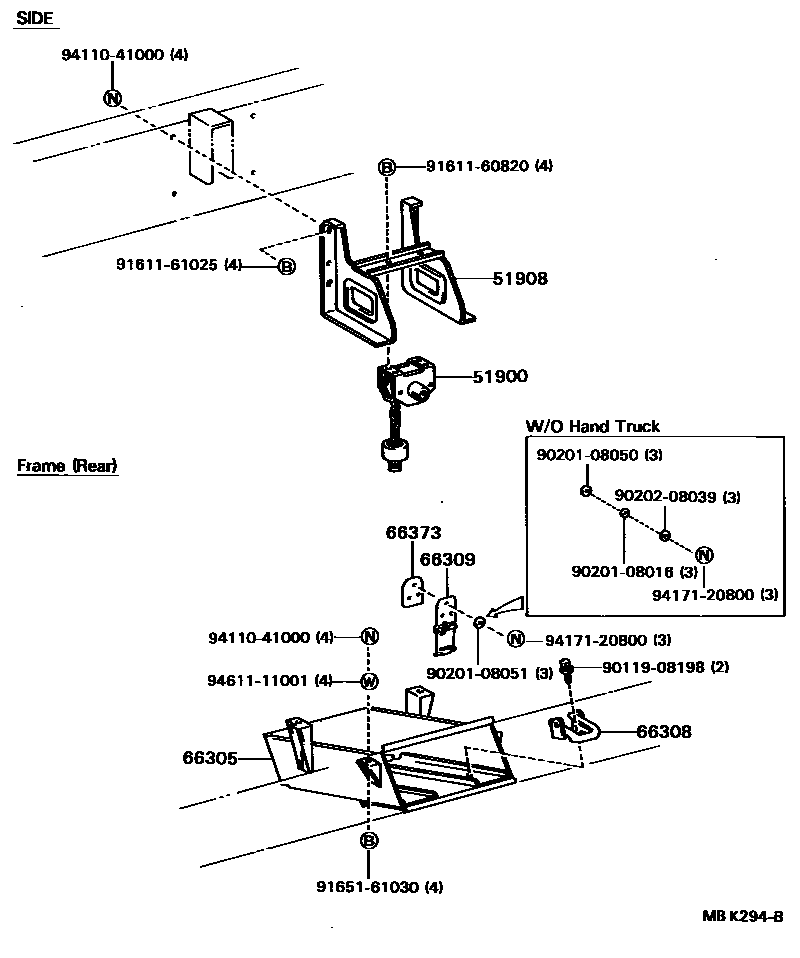

SPARE WHEEL CARRIER

0001 1 0002 1

51900CARRIER ASSY, SPARE WHEEL

main51900-36080iBU60198601-198607

main51900-36100iBU60198607-198802

main51900-36101iBU60198802-199505

main51903-90F00iBU60..N..3D198902-199008

main51903-90F01iBU60..N..3D199008-199505

51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER

main51908-36060iBU60198601-199505

66305BOX SUB-ASSY, HAND TRUCK

main66305-90F01iBU60..N198601-198708

main66305-90F02iBU60..N198708-198910

main66305-90F03iBU60..N198910-199505

66308STOPPER SUB-ASSY, HAND TRUCK

main66308-90D00iBU60..N198601-198708

66309HINGE SUB ASSY, HAND TRUCK STOPPER

main66309-90F02iBU60..N198601-198708

66373PACKING, STOPPER HINGE MALE

main66373-90D00iBU60..N198601-198708

9011908198

main90119-08198

9020108016

main90201-08016

9020108050

main90201-08050

9020108051

main90201-08051

9020208039

main90202-08039

9161160820

main91611-60820

9161161025

main91611-61025

9165161030

main91651-61030

9411041000

main94110-41000

9417120800

main94171-20800

9461111001

main94611-11001

17 parts on this diagram · 2 diagrams in section
