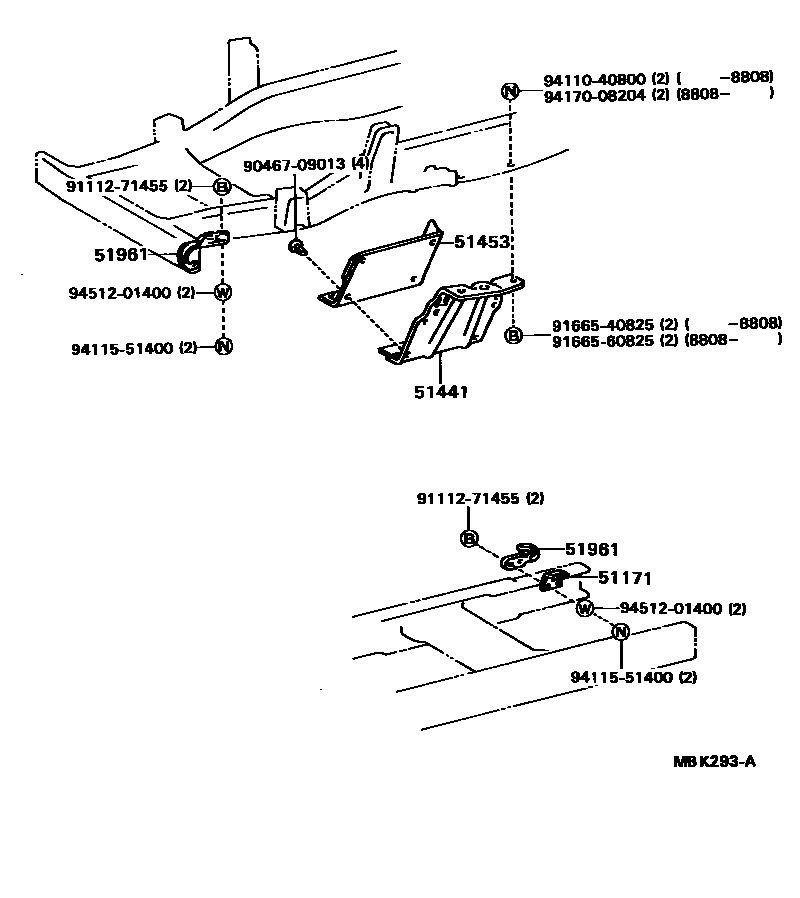

SUSPENSION CROSSMEMBER & UNDER COVER

51171REINFORCEMENT, SIDE RAIL REAR HOOK

main51171-36080iBU60198601-199505

51441COVER, ENGINE UNDER, NO.1

main51407-36020iBU60198601-198808

main51407-36050iBU60198808-199505

51453SILENCER, ENGINE UNDER COVER, FRONT

main51453-36020iBU60198808-199505

main51453-36040iBU60198601-198808

51961HOOK, NO.1

main51961-36020iBU60198601-198805

RR

main51961-36040iBU60198601-198805

FR

9046709013

main90467-09013

9111271455

main91112-71455

9166540825

main91665-40825

9166560825

main91665-60825

9411040800

main94110-40800

9411551400

main94115-51400

9417008204

main94170-08204

9451201400

main94512-01400

12 parts on this diagram · 1 diagram in section
