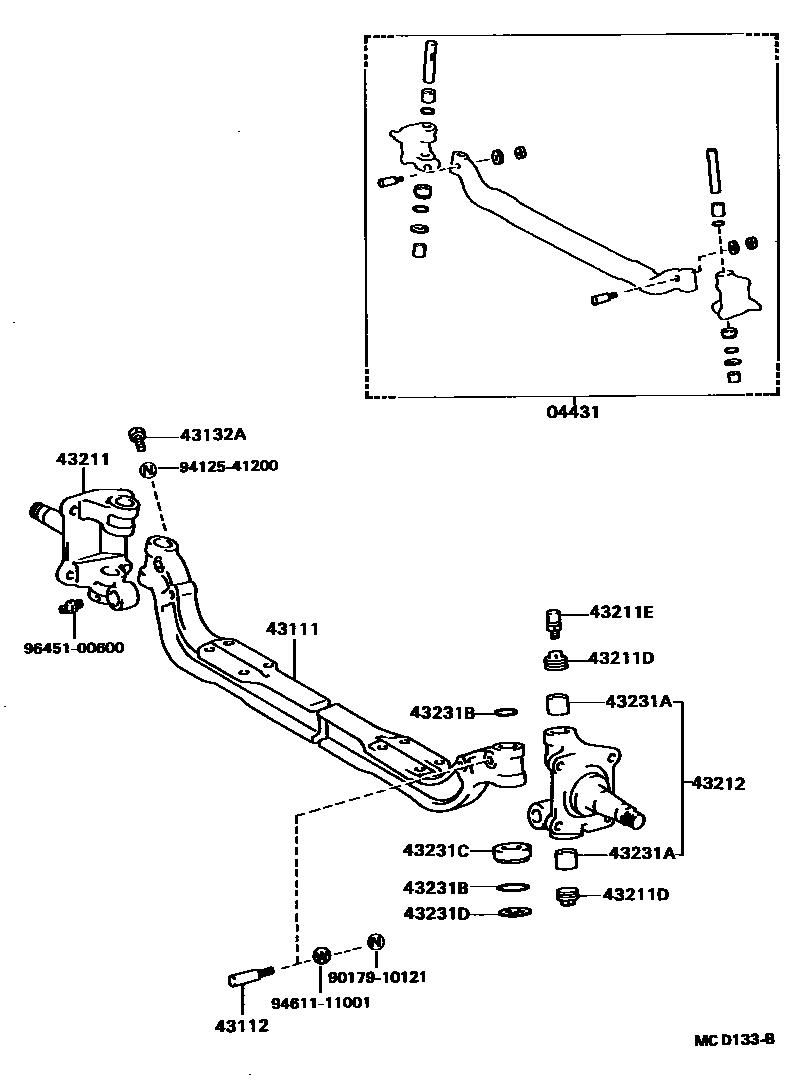

FRONT AXLE ARM & STEERING KNUCKLE

04431PIN KIT, STEERING KNUCKLE KING

main04431-25020iBU60198601-199505

43111I BEAM, FRONT AXLE

main43111-36100iBU60198601-198708

main43111-36140iBU60198708-199505

sub43111-36141

43112PIN, KING PIN LOCK

main43112-36020×2iBU60198601-199505

43132ABOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)

main90106-12001×2iBU60198601-199505

43211KNUCKLE, STEERING, RH

main43201-36080iBU60198601-198708

main43201-36090iBU60198708-199505

43211DPLUG (FOR STEERING KNUCKLE)

main90345-33001×2iBU60198601-198805

UPR

main90345-33002×2iBU60198601-198805

LWR

main90345-33003×2iBU60199003-199505

main90345-33004×2iBU60199003-199505

43211EDEFLECTOR, DUST (FOR STEERING KNUCKLE)

main90930-03031×2iBU60198601-199505

43212KNUCKLE, STEERING, LH

main43202-36070iBU60198601-198708

main43202-36080iBU60198708-199505

43231ABUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUSH)

main90999-73086×4iBU60198601-199505

43231BSEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)

main96711-19028×2iBU60198601-198805

43231CBEARING (FOR STEERING KNUCKLE KING PIN)

main90367-28001×2iBU60198601-199505

43231DSHIM (FOR KING PIN)

main90564-28128×2iBU60198601-198805

main90564-28129×2iBU60198601-198805

main90564-28130×2iBU60198601-198805

main90564-28131iBU60198805-199505

main90564-28144×2iBU60198601-198805

main90564-28145iBU60198805-199505

9017910121

main90179-10121

9412541200

main94125-41200

9461111001

main94611-11001

9645100600

main96451-00600

16 parts on this diagram · 1 diagram in section
