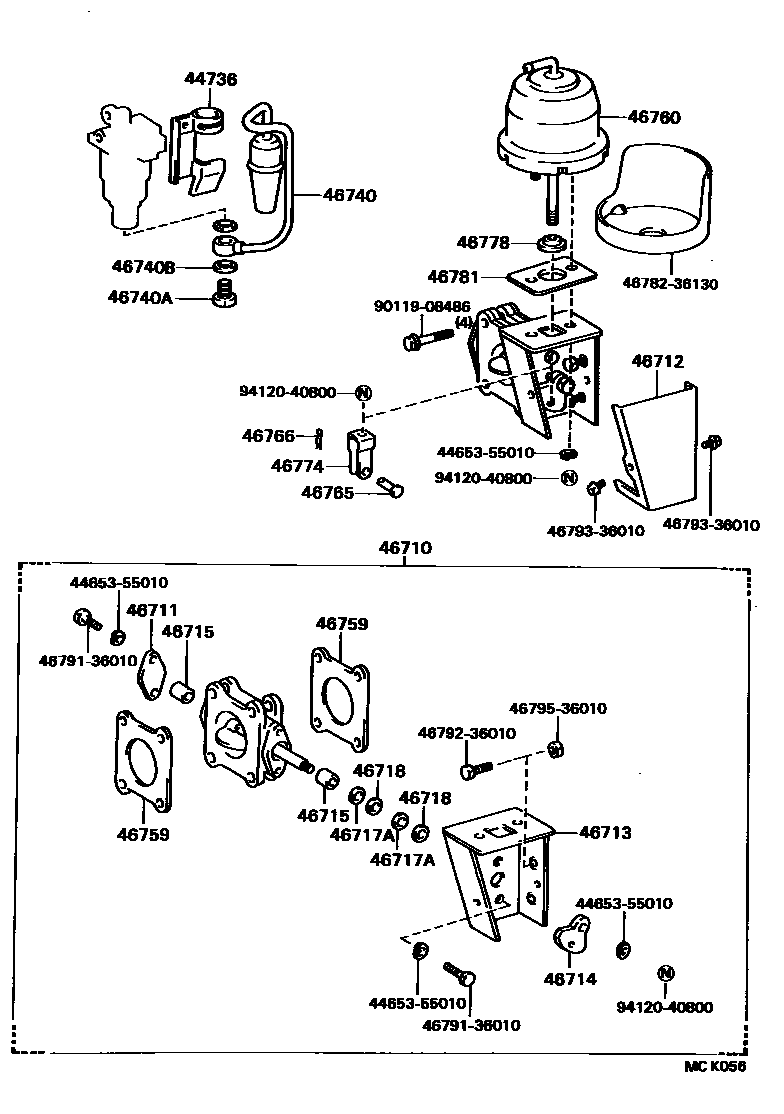

EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER
46711COVER, EXHAUST VALVE
46712COVER, EXHAUST VALVE LINK
46713BRACKET, EXHAUST VALVE
46714LEVER, EXHAUST VALVE
46717ARING, EXHAUST VALVE SEAL, NO.1
46718RING, EXHAUST VALVE SEAL, NO.2
46740CLEANER ASSY, EXHAUST RETARDER
46740ABOLT, UNION(FOR EXHAUST BRAKE CLEANER ASSY)
46740BGASKET(FOR EXHAUST BRAKE CLEANER ASSY)
46760CYLINDER ASSY, EXHAUST RETARDER VACUUM
46765PIN, VACUUM CYLINDER CLEVIS
46766PIN, VACUUM CYLINDER CLEVIS SNAP
46774CLEVIS, EXHAUST BRAKE ROD
46778BEARING, VACUUM CYLINDER
46781INSULATOR, EXHAUST BRAKE CHAMBER, NO.1
4465355010HUB SUB-ASSY, BOOSTER
main44653-55010
4678236130INSULATOR, EXHAUST BRAKE CHAMBER, NO.2
main46782-36130
4679136010BOLT, EXHAUST VALVE COVER
main46791-36010
4679236010BOLT, EXHAUST VALVE STOPPER
main46792-36010
4679336010BOLT, EXHAUST VALVE LINK COVER
main46793-36010
4679536010NUT, EXHAUST VALVE BRACKET
main46795-36010
9011908486
main90119-08486
9412040800
main94120-40800
27 parts on this diagram · 1 diagram in section
