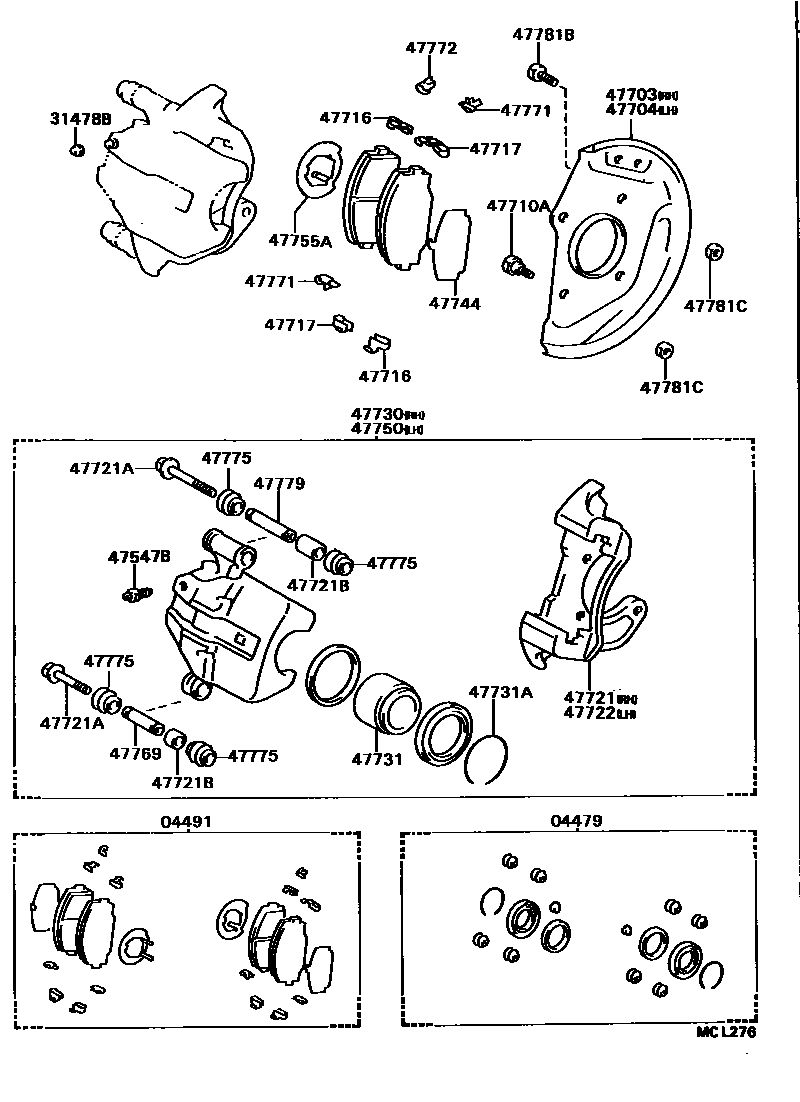

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-25010iBU60199008-199202

04491PAD KIT, DISC BRAKE, FRONT

main04491-36020iBU60199008-199201

main04491-36040iBU60199201-199202

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iBU60199008-199202

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010×2iBU60199008-199202

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-25020iBU60..N199202-199505

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-25020iBU60199008-199202

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90109-12027×6iBU60199008-199202

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-25011×4iBU60199008-199202

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-25011×4iBU60199008-199202

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-25020iBU60199008-199202

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-10451×2iBU60199008-199202

main90119-10452×2iBU60199008-199202

sub90119-10249

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-16004×2iBU60199008-199202

main90387-16005×2iBU60199008-199202

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-25020iBU60..N199202-199505

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-25020iBU60199008-199202

47731PISTON, FRONT DISC BRAKE

main47731-25010×2iBU60199008-199202

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-76001×2iBU60199008-199202

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-25020×2iBU60199008-199202

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-25020iBU60199008-199202

47755AINSULATOR, DISC BRAKE HEAT

main47755-25010×2iBU60199008-199202

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-40010×2iBU60..N199202-199505

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-25010×2iBU60199201-199202

main47771-36010×2iBU60199008-199201

47772PLATE, PAD WEAR INDICATOR, NO.2

main47772-25010×2iBU60199201-199202

main47772-36010×2iBU60199008-199201

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-40010×8iBU60..N199202-199505

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-40010×2iBU60199008-199202

47781BBOLT(FOR DUST COVER SETTING)

main90101-12155×2iBU60199008-199202

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main94115-71200×2iBU60199008-199202

26 parts on this diagram · 2 diagrams in section
