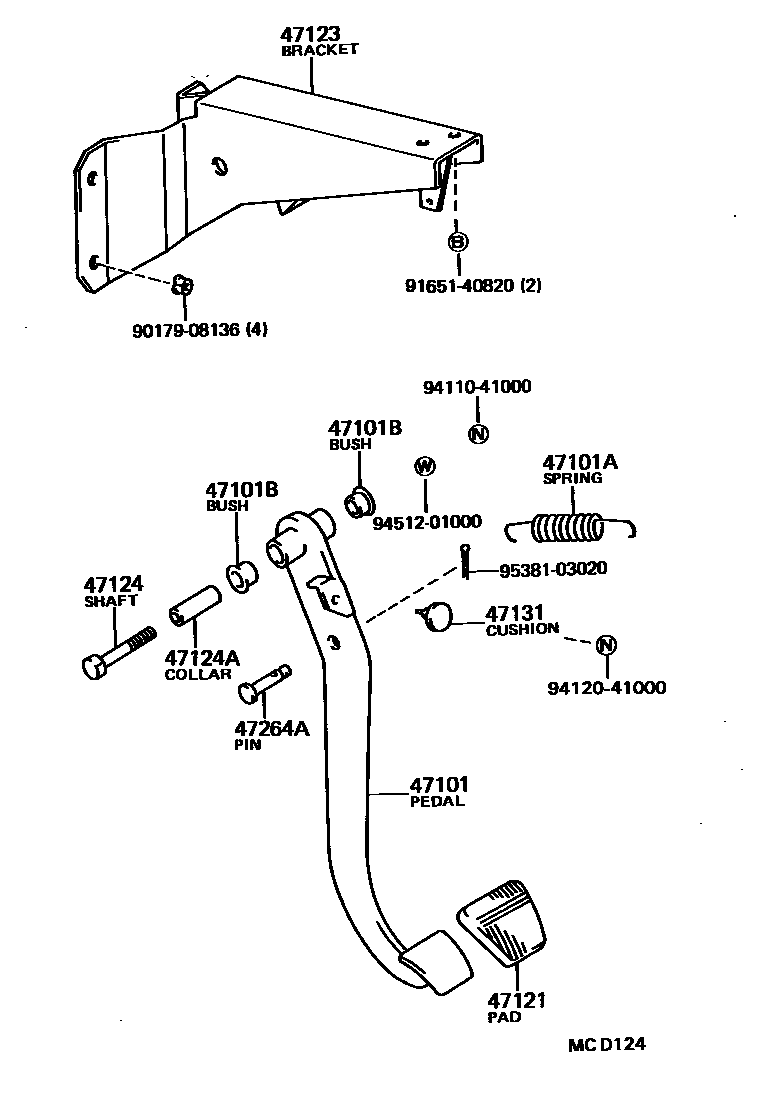

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-35150iBU60198601-199505

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-16021iBU60198601-199505

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007×2iBU60198601-199505

47121PAD, BRAKE PEDAL

main31321-14020iBU60198601-199505

47123BRACKET, BRAKE PEDAL

main55155-90F00iBU60198601-199505

47124SHAFT, BRAKE PEDAL

main91121-51065iBU60198601-199505

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iBU60198601-199505

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iBU60198601-199505

47264APIN(FOR PUSH ROD)

main90249-10048iBU60198601-199505

9017908136

main90179-08136

9165140820

main91651-40820

9411041000

main94110-41000

9412041000

main94120-41000

9451201000

main94512-01000

9538103020

main95381-03020

15 parts on this diagram · 1 diagram in section
