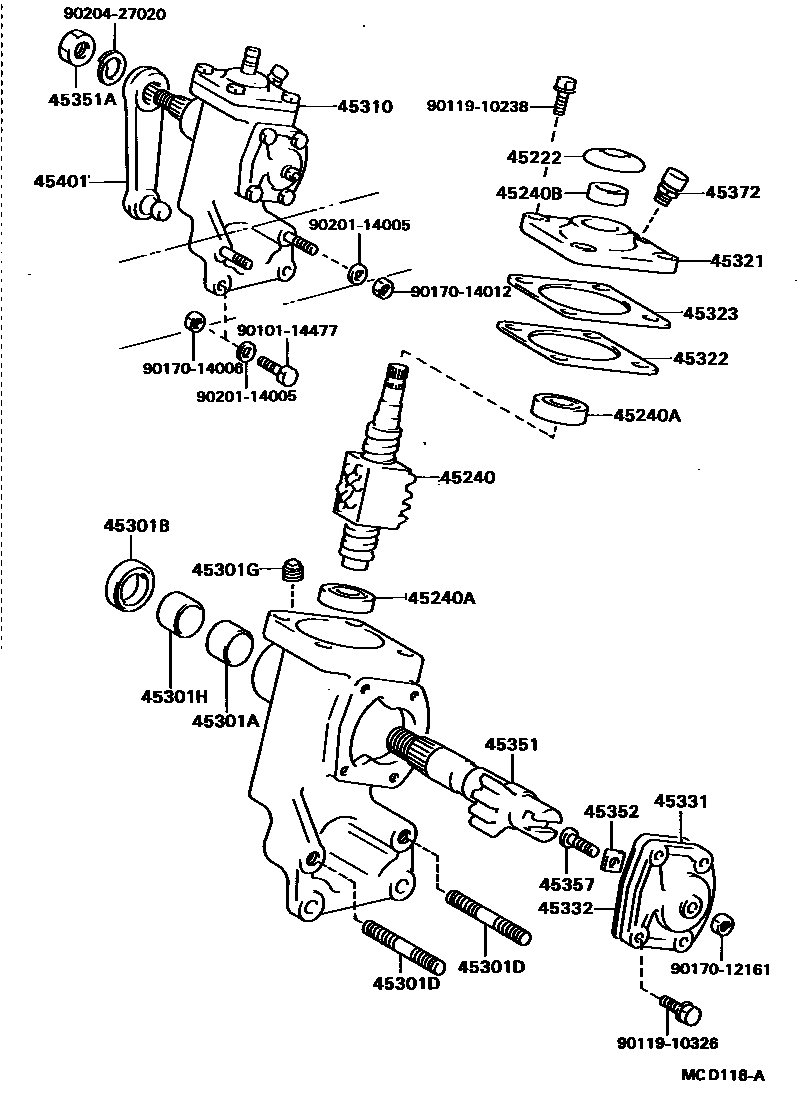

FRONT STEERING GEAR & LINK
45222COVER, STEERING GEAR DUST
45240WORM ASSY, STEERING
45240ABEARING(FOR STEERING WORM)
45240BSEAL, OIL(FOR STEERING WORM)
45301ABUSH OR BEARING, SECTOR SHAFT, NO.1
45301BSEAL, OIL(FOR SECTOR SHAFT)
45301DBOLT, STUD(FOR STEERING GEAR HOUSING)
45301GPLUG, STEERING GEAR BOX OIL
45301HBUSH OR BEARING, SECTOR SHAFT, NO.2
45310HOUSING ASSY, STEERING GEAR
45321COVER, GEAR HOUSING END
45322GASKET, GEAR HOUSING END COVER
45323SHIM, GEAR HOUSING END COVER
45331COVER, SECTOR SHAFT END
45332GASKET, SECTOR SHAFT END COVER
45351SHAFT, STEERING SECTOR
45351ANUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
45352WASHER, SECTOR SHAFT THRUST
45357SCREW, SECTOR SHAFT ADJUSTING
45372PLUG, STEERING GEAR HOUSING OIL
45401ARM SUB-ASSY, PITMAN
9010114477
main90101-14477
9011910238
main90119-10238
9011910326
main90119-10326
9017012161
main90170-12161
9017014006
main90170-14006
9017014012
main90170-14012
9020114005
main90201-14005
9020427020
main90204-27020
29 parts on this diagram · 5 diagrams in section
