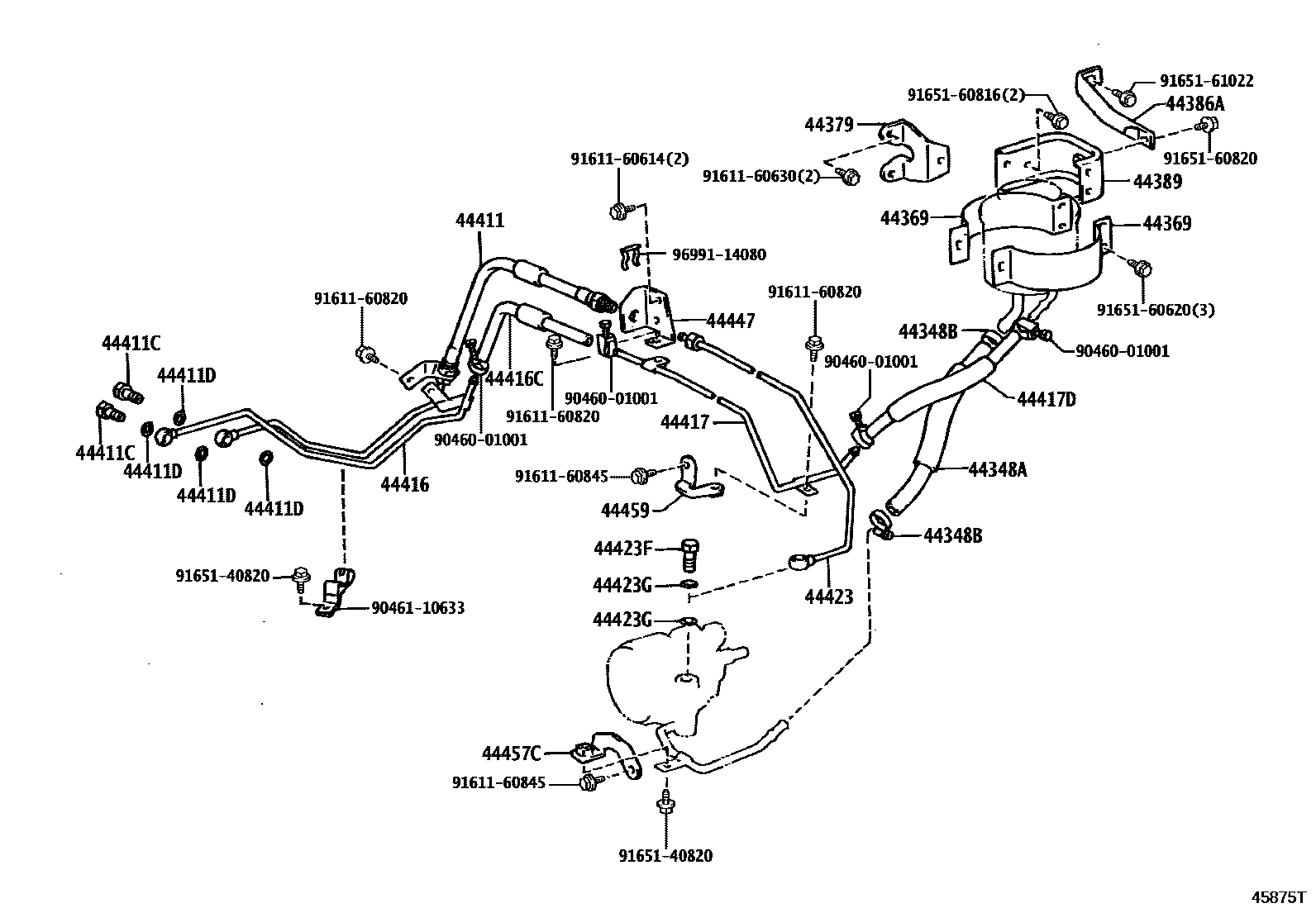

POWER STEERING TUBE

0001 1 0002 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-36100iBU60198601-198808

sub44348-36101

main44348-36170iBU60198808-199505

sub44348-36171

main44348-36200iBU60..N..3D198910

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001iBU60198601-198808

main90467-21005iBU60198808-199505

sub90467-21010

44369BRACKET, OIL RESERVOIR, NO.1

main44369-36020iBU60198601-199505

44379BRACKET, OIL RESERVOIR, NO.2

main44379-36031iBU60198601-198808

main44379-36150iBU60198808-199505

sub44379-37020

44386ASUPPORT, OIL RESERVOIR

main44386-36011iBU60198601-198808

main44386-36100iBU60198808-199505

44389BRACKET, OIL RESERVOIR, NO.3

main44389-36021iBU60198601-198808

main44389-36060iBU60198808-199505

44411HOSE, PRESSURE FEED

main44411-36240iBU60198601-198712

sub44411-36242

main44411-36241iBU60198712-199112

sub44411-36450

sub44413-36130

main44411-36450iBU60199112-199303

sub44411-36451

main44411-36451iBU60199303-199505

sub44411-36452

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-14003iBU60198601-199505

44411DGASKET(FOR PRESSURE FEED HOSE)

main90430-14235iBU60198601-199505

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-36150iBU60198601-198712

main44416-36151iBU60198712-199505

44416CHOSE(FOR RETURN TUBE TO RESERVIOR)

main90445-18133iBU60198601-198808

main90447-18038iBU60198808-199505

44417TUBE, RETURN, NO.2

main44417-36060iBU60198601-198808

main44417-36100iBU60..N..3D198710-198910

main44417-36120iBU60198808-198911

sub44417-36121

main44417-36121iBU60198911-199505

main44417-36140iBU60..N..3D198910

44417DHOSE(FOR RETURN TUBE TO RESERVOIR)

main90445-18139iBU60198808-199505

main90447-18022iBU60198601-198808

44423TUBE, OIL PUMP TO GEAR BOX

main44423-36130iBU60..N..3D198710-198808

main44423-36140iBU60198601-198808

main44423-36180iBU60198808-199505

44423FBOLT, UNION

main90401-16004iBU60198601-199310

sub90401-16027

main90401-16027iBU60199310-199505

44423GGASKET, UNION BOLT

main90430-16168iBU60198601-199505

44447BRACKET, POWER STEERING OIL COOLER TUBE SUPPORT

main44447-36120iBU60198601-198808

main44447-36130iBU60..N..3D198710

main44447-36160iBU60198808-198911

sub44447-36161

main44447-36161iBU60198911-199505

44457CBRACKET, POWER STEERING TUBE SUPPORT, NO.1

main44457-36040iBU60198808-199505

main44457-36080iBU60198601-198808

44459BRACKET, TUBE SUPPORT, NO.3

main44459-36070iBU60198601-198808

9046001001

main90460-01001

9046110633

main90461-10633

9161160614

main91611-60614

9161160630

main91611-60630

9161160820

main91611-60820

9161160845

main91611-60845

9165140820

main91651-40820

9165160620

main91651-60620

9165160816

main91651-60816

9165160820

main91651-60820

9165161022

main91651-61022

9699114080

main96991-14080

31 parts on this diagram · 2 diagrams in section
