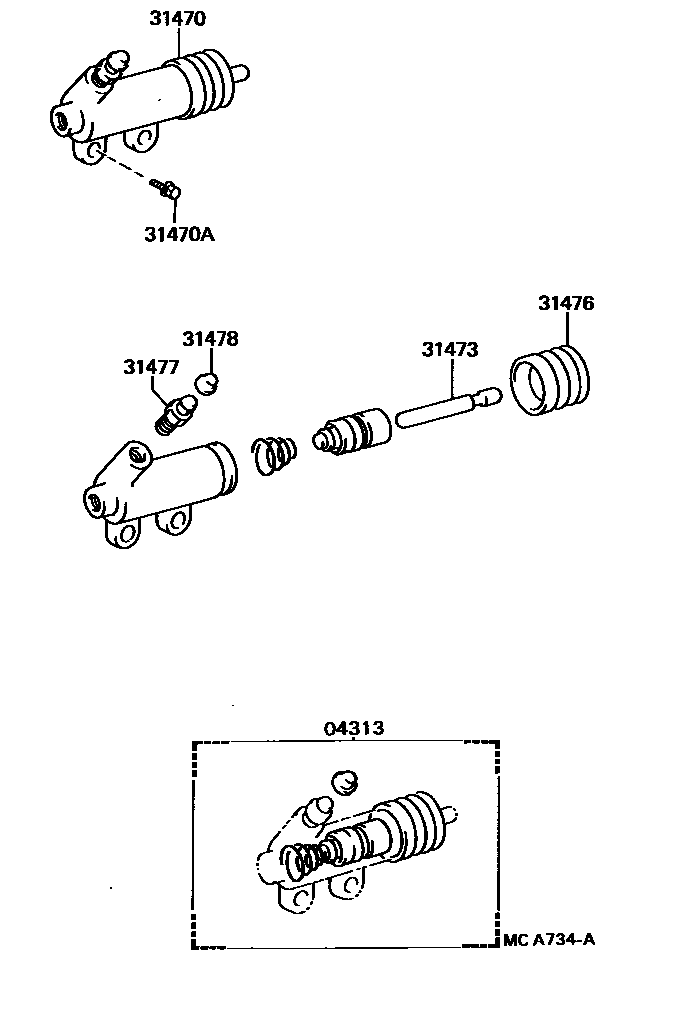

CLUTCH RELEASE CYLINDER

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-36211iBU60198808-199206

main31470-36212iBU60199206-199408

main31470-36213iBU60199408-199505

main31470-36221iBU60198601-198808

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60820×2iBU60198805-199505

sub91611-G0820

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iBU60198601-199505

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iBU60198601-199505

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iBU60198601-199505

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iBU60198601-199505

6 parts on this diagram · 1 diagram in section
