INJECTION NOZZLE

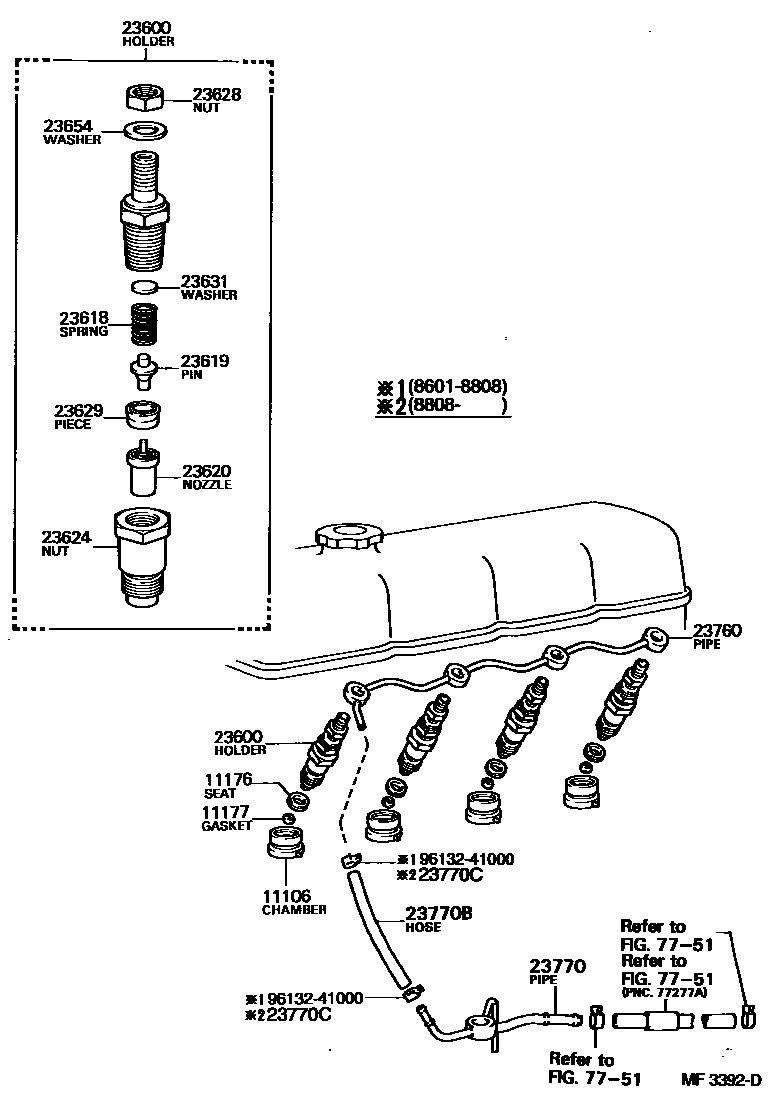

Parts diagram
11106CHAMBER SUB-ASSY, COMBUSTION
main11106-56010i198601-198704
sub11106-56030
main11106-56030i198704-198805
sub11106-56032
main11106-56032i198808-199505
11176SEAT, INJECTION NOZZLE
main11176-56010i198601-199505
11177GASKET, INJECTION NOZZLE SEAT
main11177-56010i198601-199505
23600HOLDER & NOZZLE SET, NOZZLE
main23600-56020i198601-199505
23618SPRING, NOZZLE HOLDER PRESSURE
main23618-56010i198601-199505
23619PIN, NOZZLE HOLDER PRESSURE
main23619-46010i198601-199505
23620NOZZLE ASSY
main23620-56020i198601-199505
23624NUT, NOZZLE RETAINING
main23624-54020i198601-199505
sub23624-58080
23628NUT(FOR RING PACKING SETTING)
main23628-46010i198601-199505
23629PIECE, DISTANCE(FOR NOZZLE)
main23629-46010i198601-199505
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
main23631-46010i198601-199505
main23632-46010i198601-199505
main23633-46010i198601-199505
main23634-46010i198601-199505
main23635-46010i198601-199505
main23636-46010i198601-199505
main23637-46010i198601-199505
main23638-46010i198601-199505
main23639-46010i198601-199505
main23641-46010i198601-199505
main23642-46010i198601-199505
main23643-46010i198601-199505
main23644-46010i198601-199505
main23645-46010i198601-199505
main23646-46010i198601-199505
main23647-46010i198601-199505
main23648-46010i198601-199505
main23649-46010i198601-199505
main23651-46010i198601-199505
main23652-46010i198601-199505
23654WASHER(FOR RING PACKING)
main23654-46010i198601-199505
23760PIPE ASSY, NOZZLE LEAKAGE
main23760-56040i198601-199505
23770PIPE ASSY, NOZZLE LEAKAGE, NO.2
main23770-56060i198601-198808
main23770-56090i198808-199505
23770BHOSE, FUEL
main95332-04020i198601-198702
sub95333-04020
main95333-04020i198702-199505
23770CCLAMP OR CLIP(FOR FUEL HOSE SET)
main96132-30400i198808-199302
sub96132-51000
main96132-41000i199302-199505
7751
9613241000
main96132-41000

18 parts on this diagram · 1 diagram in section
