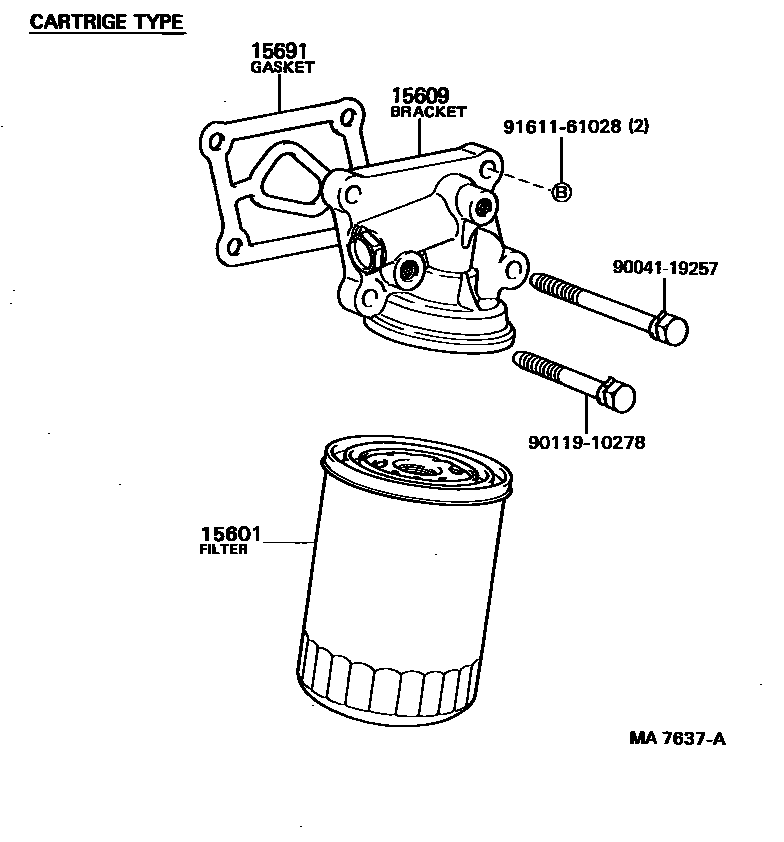

OIL FILTER

0001 1 0002 1

15601FILTER SUB-ASSY, OIL

main15600-41010iB..BU60198601-199505

15609BRACKET SUB-ASSY, OIL FILTER

main15609-56040iB..BU60198601-198808

main15609-56070iB..BU60198808-199505

15691GASKET, OIL FILTER

main15691-56030iB..BU60198601-198808

main15691-56040iB..BU60198808-199304

main15691-56041iB..BU60199304-199505

9004119257

main90041-19257

9011910278

main90119-10278

9161161028

main91611-61028

6 parts on this diagram · 2 diagrams in section
