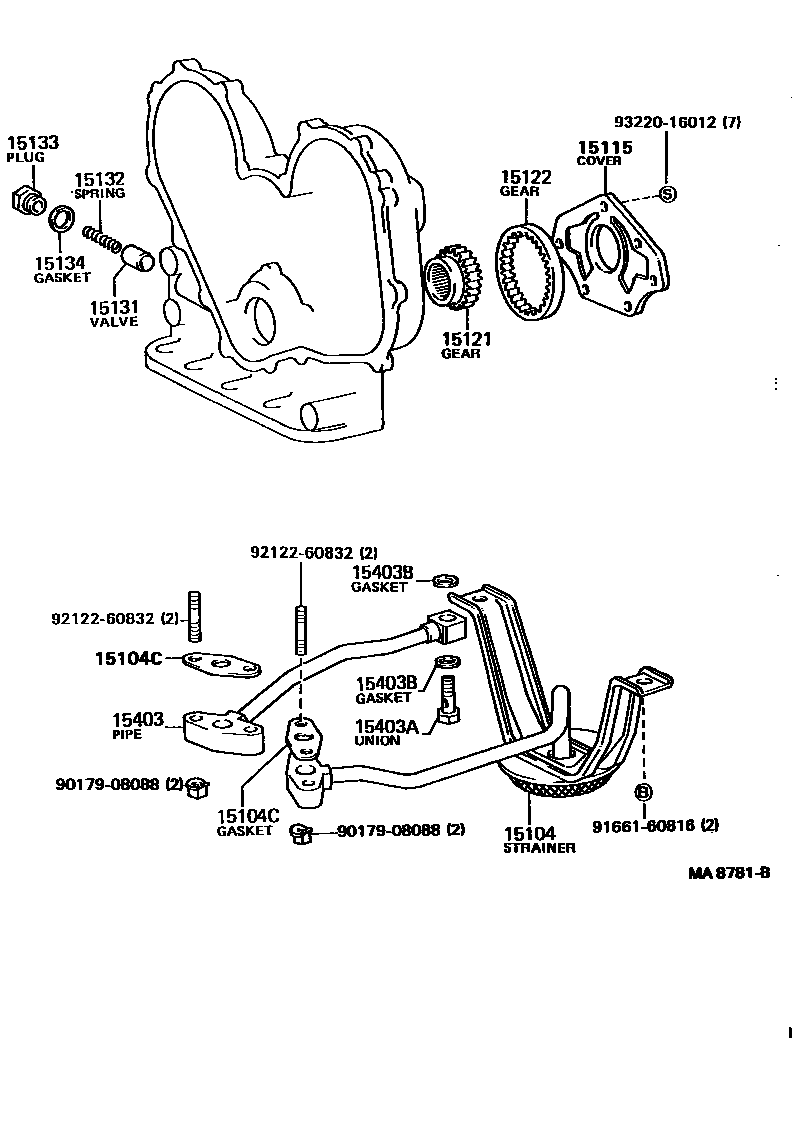

ENGINE OIL PUMP

0001 1 0002 1

15104STRAINER SUB-ASSY, OIL

main15104-56050iB..BU60198601-198808

main15104-56060iB..BU60198808-198910

main15104-56061iB..BU60198910-199505

15104CGASKET(FOR OIL STRAINER)

main15149-56020iB..BU60198808-199505

main15193-56020×2iB..BU60198601-198808

15115COVER, OIL PUMP

main15115-56030iB..BU60198601-198808

main15115-56040iB..BU60198808-199505

15121GEAR, OIL PUMP DRIVE

main15121-56030iB..BU60198601-198808

main15121-56040iB..BU60198808-199505

15122GEAR, OIL PUMP DRIVEN

main15122-56030iB..BU60198601-198808

main15122-56040iB..BU60198808-199505

15131VALVE, OIL PUMP RELIEF

main15131-24010iB..BU60198601-199505

15132SPRING, OIL PUMP RELIEF VALVE

main15132-56080iB..BU60198808-199505

main15132-76011iB..BU60198601-198808

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010iB..BU60198601-199505

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010iB..BU60198601-199505

15403PIPE SUB-ASSY, OIL PUMP OUTLET

main15403-56041iB..BU60198601-198808

main15403-56050iB..BU60198808-199505

15403AUNION(FOR OIL PUMP OUTLET PIPE)

main90401-18002iB..BU60198601-198808

main90401-20009iB..BU60198808-199505

15403BGASKET(FOR OIL PUMP OUTLET PIPE)

main90430-18012×2iB..BU60198601-198808

main90430-20018×2iB..BU60198808-199505

9017908088

main90179-08088

9166160816

main91661-60816

9212260832

main92122-60832

9322016012

main93220-16012

16 parts on this diagram · 2 diagrams in section
