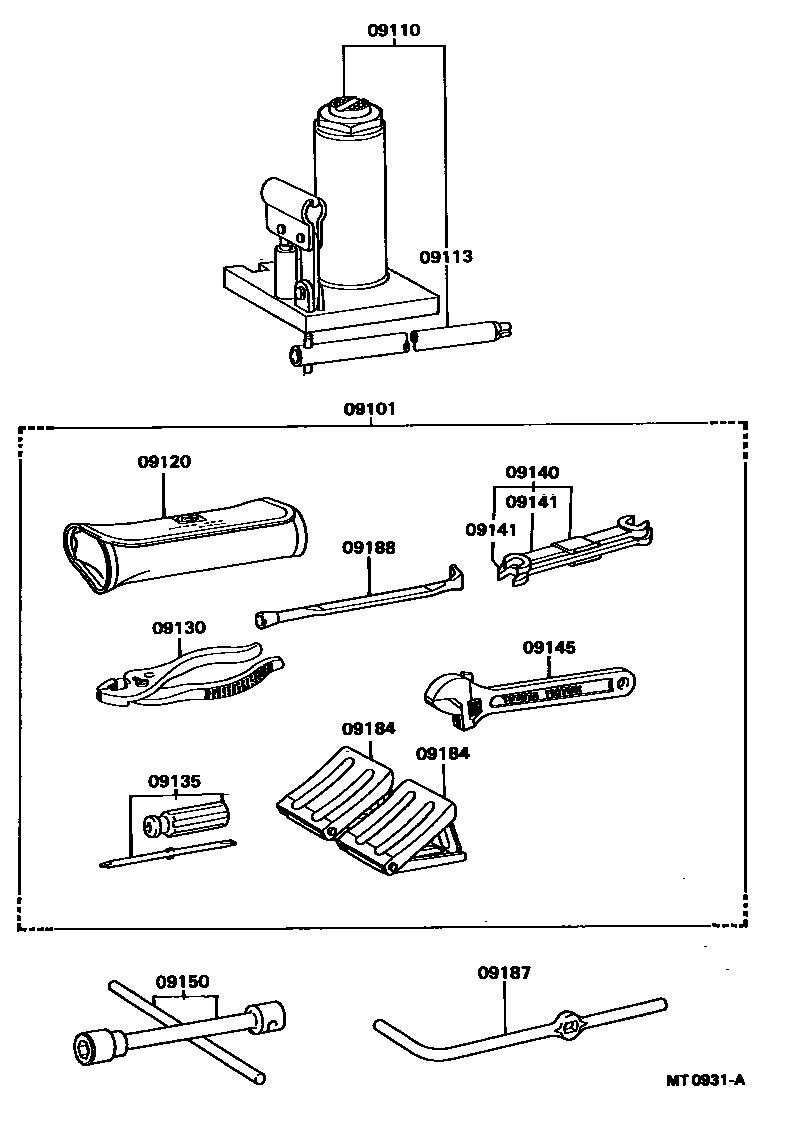

STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09102-36310iBU60198601-198708

main09102-36380iBU60198708-198805

main09102-36390iBU60198711-198805

09110JACK ASSY

main09110-36160iBU60198601-199505

09113HANDLE, JACK

main09113-36060iBU60198601-199505

09120BAG, TOOL

main09120-28010iBU60198708-199505

main09120-36030iBU60198601-198708

09130PLIERS

main99913-11500iBU60198601-199505

09135DRIVER, SCREW

main99915-10700iBU60198601-199505

09140SPANNER SET

main09140-27010iBU60198601-198708

09141SPANNER

main99914-11012iBU60198805-199505

main99914-11417iBU60198601-198805

09145WRENCH, MONKEY

main99911-10200iBU60198601-198605

main99911-11200iBU60198605-199505

09150WRENCH, HUB NUT BOX

main09150-25020iBU60198601-198805

09184STOPPER, WHEEL

main09184-00031×2iBU60198601-199407

main09184-60010×2iBU60199407-199505

09187HANDLE, SPARE WHEEL CARRIER

main09187-36070iBU60198601-199505

09188WRENCH, VALVE CAP

main09188-00030iBU60198601-198711

13 parts on this diagram · 1 diagram in section
