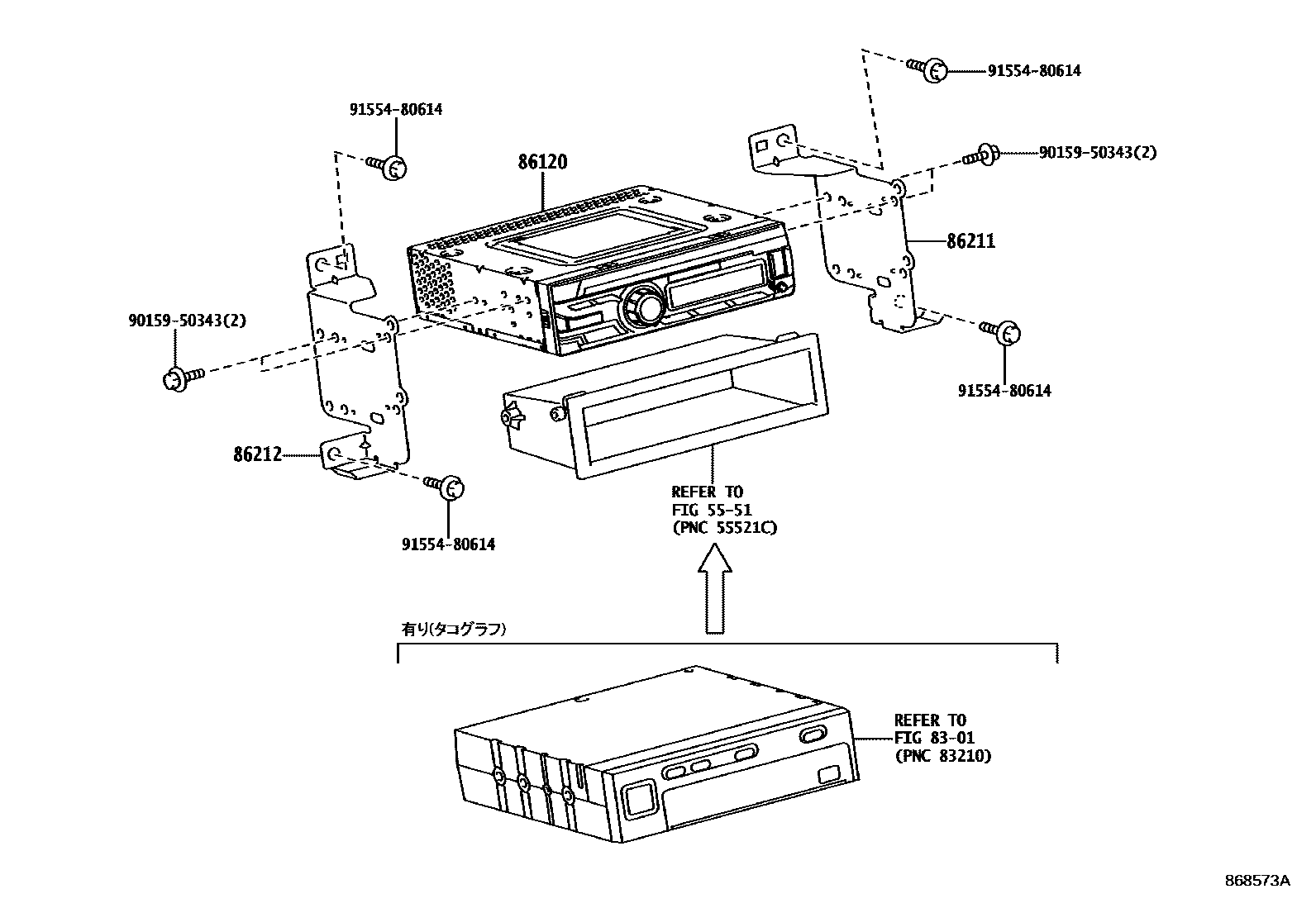

RADIO RECEIVER & AMPLIFIER & CONDENSER

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

8301METER

→ Go to FIG 83-01

86120RECEIVER ASSY, RADIO

main86120-E0350supersedes 86120-E0340iXKC605,XKU605,645,655202103

86211BRACKET, RADIO, NO.1

main86211-37110iXKC605,XKU605,645,655202103

86212BRACKET, RADIO, NO.2

main86212-37090iXKC605,XKU605,645,655202103

9015950343

main90159-50343

9155480614

main91554-80614

7 parts on this diagram · 1 diagram in section
