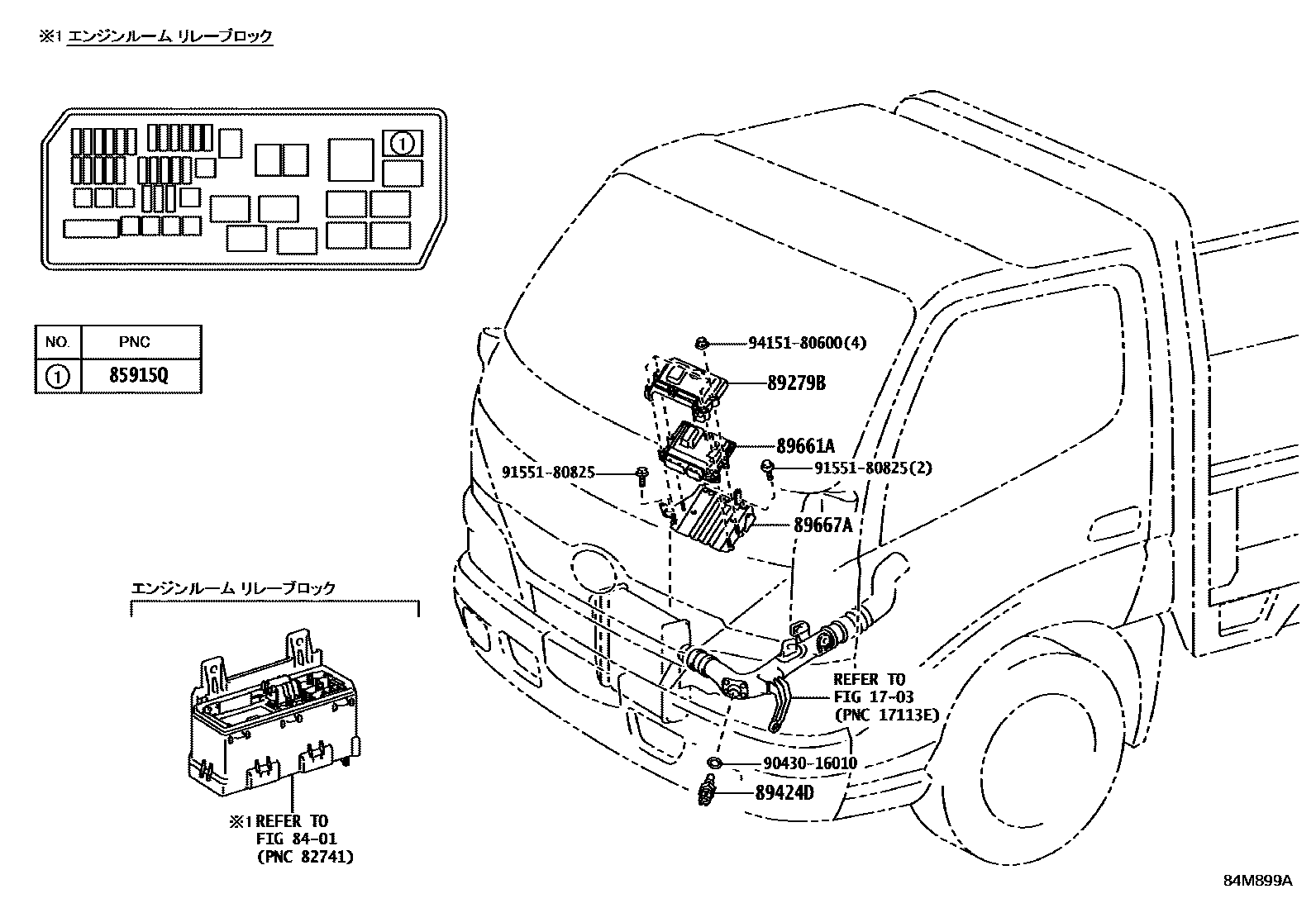

ELECTRONIC CONTROLED DIESEL (ECD)

1703AIR CLEANER

→ Go to FIG 17-03

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85915QRELAY, COMPUTER (FOR DIESEL)

main85900-37150iXKC605,XKU605,645,655202103

89279BCOVER, DIESEL ENGINE CONTROL COMPUTOR

mainF171237060iXKC605,XKU605,645,655202103-202502

89424DSENSOR, INLET AIR TEMPERATURE

main89424-60010iXKC605,XKU605,645,655202103

89661ACOMPUTER, ENGINE CONTROL

main89661-37T80supersedes 89661-37V32iXKC605,XKU605,645,655202103

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-37200iXKC605,XKU605,645,655202103

9043016010

main90430-16010

9155180825

main91551-80825

9415180600

main94151-80600

10 parts on this diagram · 1 diagram in section
