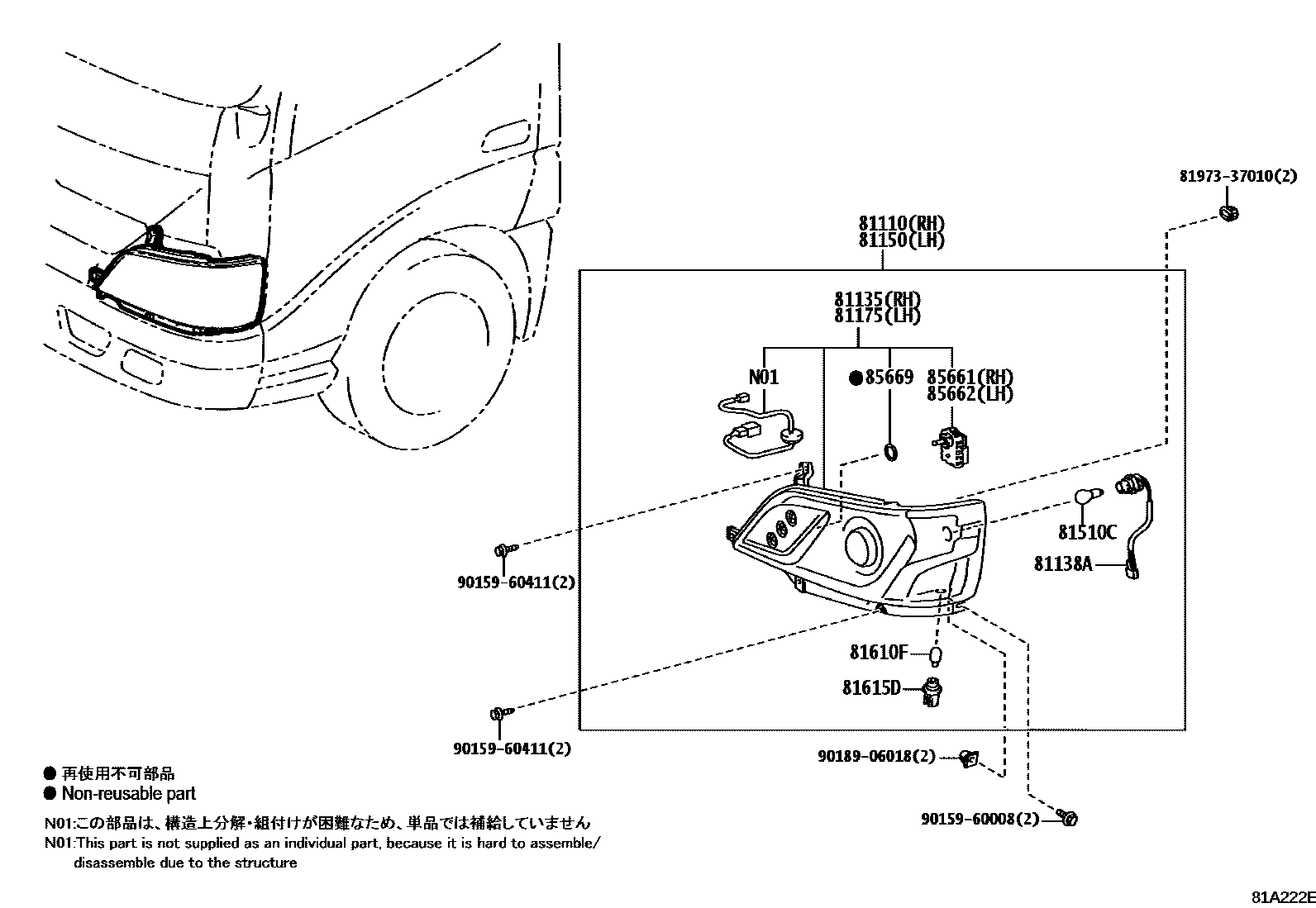

HEADLAMP

0001 1 0002 1

81110HEADLAMP ASSY, RH

main81110-37771iXKC605,XKU605,645,655202103-202310

main81110-37B70iXKC605,XKU605,645,655202310

81135UNIT ASSY, HEADLAMP, RH

main81140-37771iXKC605,XKU605,645,655202103-202310

main81140-37B70iXKC605,XKU605,645,655202310

81138ASOCKET & WIRE, HEADLAMP

main81125-37630×2iXKC605,XKU605,645,655202103

81150HEADLAMP ASSY, LH

main81150-37771iXKC605,XKU605,645,655202103-202310

main81150-37B70iXKC605,XKU605,645,655202310

81175UNIT ASSY, HEADLAMP, LH

main81070-37771iXKC605,XKU605,645,655202103-202310

main81070-37B70iXKC605,XKU605,645,655202310

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15023×2iXKC605,XKU605,645,655202103

81610FBULB(FOR CLEARANCE LAMP)

main90981-12015×2iXKC605,XKU605,645,655202103

81615DSOCKET, CLEARANCE LAMP

main90075-60020×2iXKC605,XKU605,645,655202103

85661MOTOR, HEADLAMP LEVELING, RH

main85661-37020iXKC605,XKU605,645,655202103

85662MOTOR, HEADLAMP LEVELING, LH

main85661-37020iXKC605,XKU605,645,655202103

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iXKC605,XKU605,645,655202103

8197337010

main81973-37010

9015960008

main90159-60008

9015960411

main90159-60411

9018906018

main90189-06018

15 parts on this diagram · 2 diagrams in section
