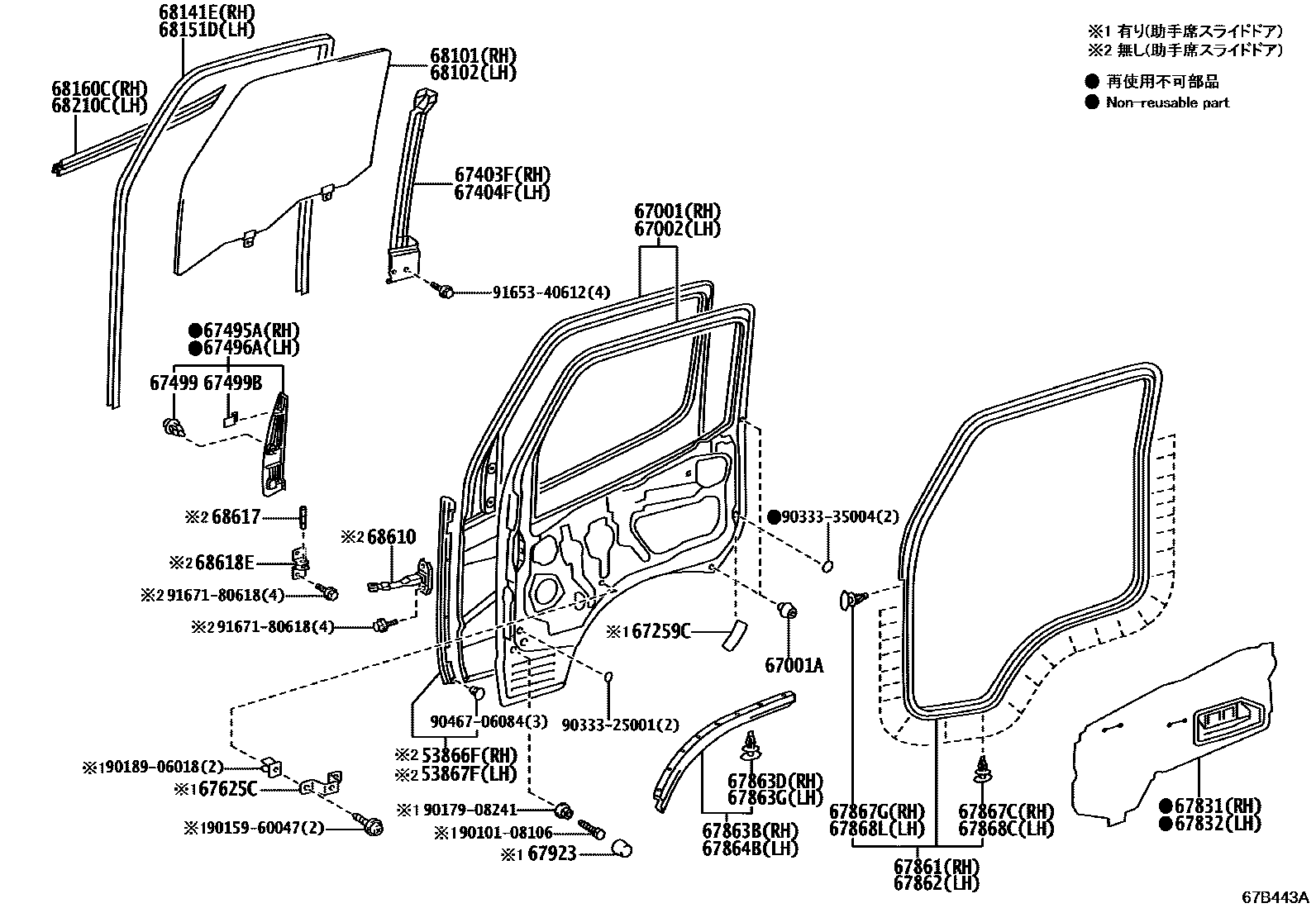

FRONT DOOR PANEL & GLASS

0001 1������� 0002 1������ 0003 1������,�������(����������)

53866FSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-37042iXKC605,XKU605,645,655202103

53867FSEAL, FR FENDER TO COWL SIDE, LH

main53867-37032iXKC605,XKU605,645,655202103

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-37384iXKU605..IV5202103

main67001-37610supersedes 67001-37620iXKU655..CBU;XKC605,XKU605,645..T4; XKU655..IV3202103

main67001-37620iXKU655..CBU; XKU655..IV3202103

main67001-37630supersedes 67001-37610iXKU655..CBU;XKC605,XKU605,645..T4; XKU655..IV3202103

main67001-37640supersedes 67001-37620iXKU655..CBU; XKU655..IV3202103

67001ACUSHION, FRONT DOOR PANEL

main90541-09031×4iXKC605,XKU605,645,655202103

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-37372supersedes 67002-37383iXKU655..CBU;XKC605,XKU605,645..T4; XKU655..IV3202103-202106

main67002-37373iXKU655..CBU;XKC605,XKU605,645..T4; XKU655..IV3202107

main67002-37382iXKU655..CBU; XKU655..IV3202103-202106

main67002-37383iXKU655..CBU; XKU655..IV3202107

main67002-37400supersedes 67002-37414iXKU605..IV5202103

67259CREFLECTOR, FRONT SLIDE DOOR

main67259-37010iXKU605..IV5202103

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-37021iXKC605,XKU605,645,655202103

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-37021iXKC605,XKU605,645,655202103

67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-37010iXKC605,XKU605,645,655202103

67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-37010iXKC605,XKU605,645,655202103

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67771-12050×4iXKC605,XKU605,645,655202103

67499BRETAINAR, FRONT DOOR LOWER FRAME BRACKET GARNISH, NO.2

main67499-37010×2iXKC605,XKU605,645,655202103

67625CBRACKET, DOOR TRIM, NO.1

main67625-37010iXKU605..IV5202103

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-37050iXKC605,XKU605,645,655202103

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-37060iXKC605,XKU605,645,655202103

main67832-37040iXKU605..IV5202103

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-89112iXKC605,XKU605,645,655202103

main67861-37021iXKU605..IV5202103

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-89111iXKC605,XKU605,645,655202103

main67862-37042iXKU605..IV5202103

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-37011iXKC605,XKU605,645,655..CBU,IV3202103

main67863-37021iXKU605..IV5202103

67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-12150×7iXKC605,XKU605,645,655..CBU,IV3; XKU605..IV5202103

67863GRETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-12150×8iXKC605,XKU605,645,655..CBU,IV3; XKU605..IV5202103

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-37011supersedes 67864-37021iXKC605,XKU605,645,655..CBU,IV3; XKU605..IV5202103

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×27iXKC605,XKU605,645,655202103

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-89103iXKC605,XKU605,645,655202103

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×27iXKC605,XKU605,645,655; XKU605..IV5202103

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-89103iXKC605,XKU605,645,655202103

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-37020iXKU605..IV5202103

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-37130iXKC605,XKU605,645,655202103

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-37140iXKC605,XKU605,645,655202103

68141ERUN, FRONT DOOR GLASS, RH

main68141-37030iXKC605,XKU605,645,655202103

68151DRUN, FRONT DOOR GLASS, LH

main68151-37030iXKC605,XKU605,645,655202103

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68161-37011iXKC605,XKU605,645,655202103

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68162-37011iXKC605,XKU605,645,655202103

68610CHECK ASSY, FRONT DOOR

main68610-37030×2supersedes 68610-37040iXKC605,XKU605,645,655..CBU,IV3; XKU605..IV5202103

main68610-37040×2iXKU605..IV5; XKU655..30T;XKC605,XKU605,655..T4..IV3202103

68617PIN, FRONT DOOR CHECK

main68617-20011×2iXKC605,XKU605,645,655; XKU605..IV5202103

68618EBRACKET, FRONT DOOR CHECK ARM

main68618-37020×2iXKC605,XKU605,645,655; XKU605..IV5202103

9010108106

main90101-08106

9015960047

main90159-60047

9017908241

main90179-08241

9018906018

main90189-06018

9033325001

main90333-25001

9033335004

main90333-35004

9046706084

main90467-06084

9165340612

main91653-40612

9167180618

main91671-80618

44 parts on this diagram · 3 diagrams in section
