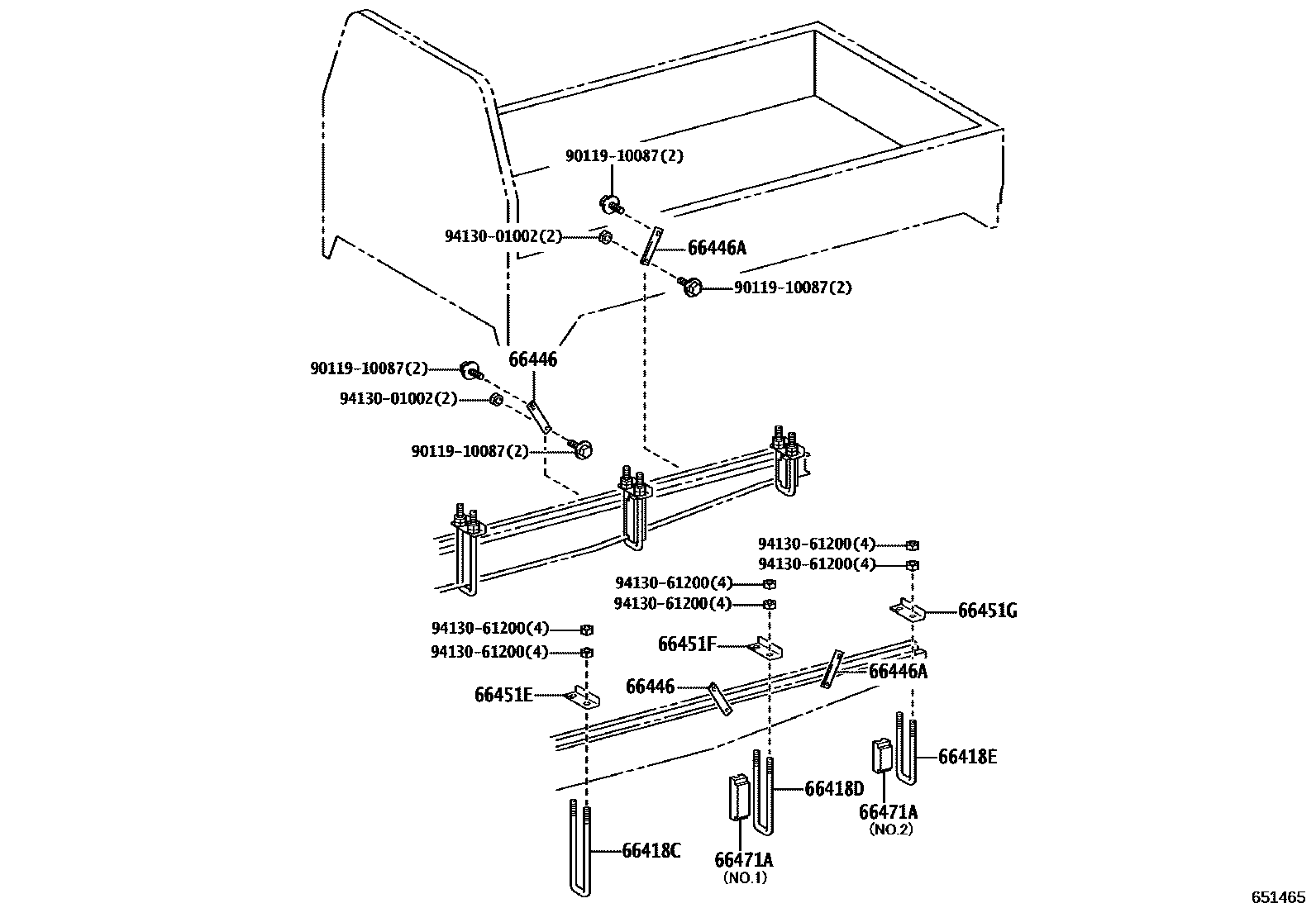

REAR BODY MOUNTING

66418CBOLT, U, FRONT

main90117-12038×2iXKC605,XKU605,655..CBU; XKU645202103

66418DBOLT, U, CENTER

main90117-12038×2iXKC605,XKU605,655..CBU; XKU645202103

66418EBOLT, U, REAR

main90117-12044×2iXKC605,XKU605,655..CBU; XKU645202103

66446BRACE, FRAME FLOOR

main66446-37110×2iXKU655..CBU202103

66446ABRACE, FRAME TO REAR BODY FLOOR

main66446-37110×2iXKC605,XKU605,655..CBU202103

main66446-37100×2iXKU645202103

66451EPLATE, U BOLT, FRONT

main66451-37030×2iXKC605,XKU605,655..CBU; XKU645202103

66451FPLATE, U BOLT, CENTER

main66451-37030×2iXKC605,XKU605,655..CBU; XKU645202103

66451GPLATE, U BOLT, REAR

main66451-37030×2iXKC605,XKU605,655..CBU; XKU645202103

66471AREINFORCEMENT, FRAME U BOLT

main66471-37220×2iXKC605,XKU605,655..CBU; XKU645202103

main66471-37230×2iXKC605,XKU605,655..CBU; XKU645202103

9011910087

main90119-10087

9413001002

main94130-01002

9413061200

main94130-61200

12 parts on this diagram · 1 diagram in section
