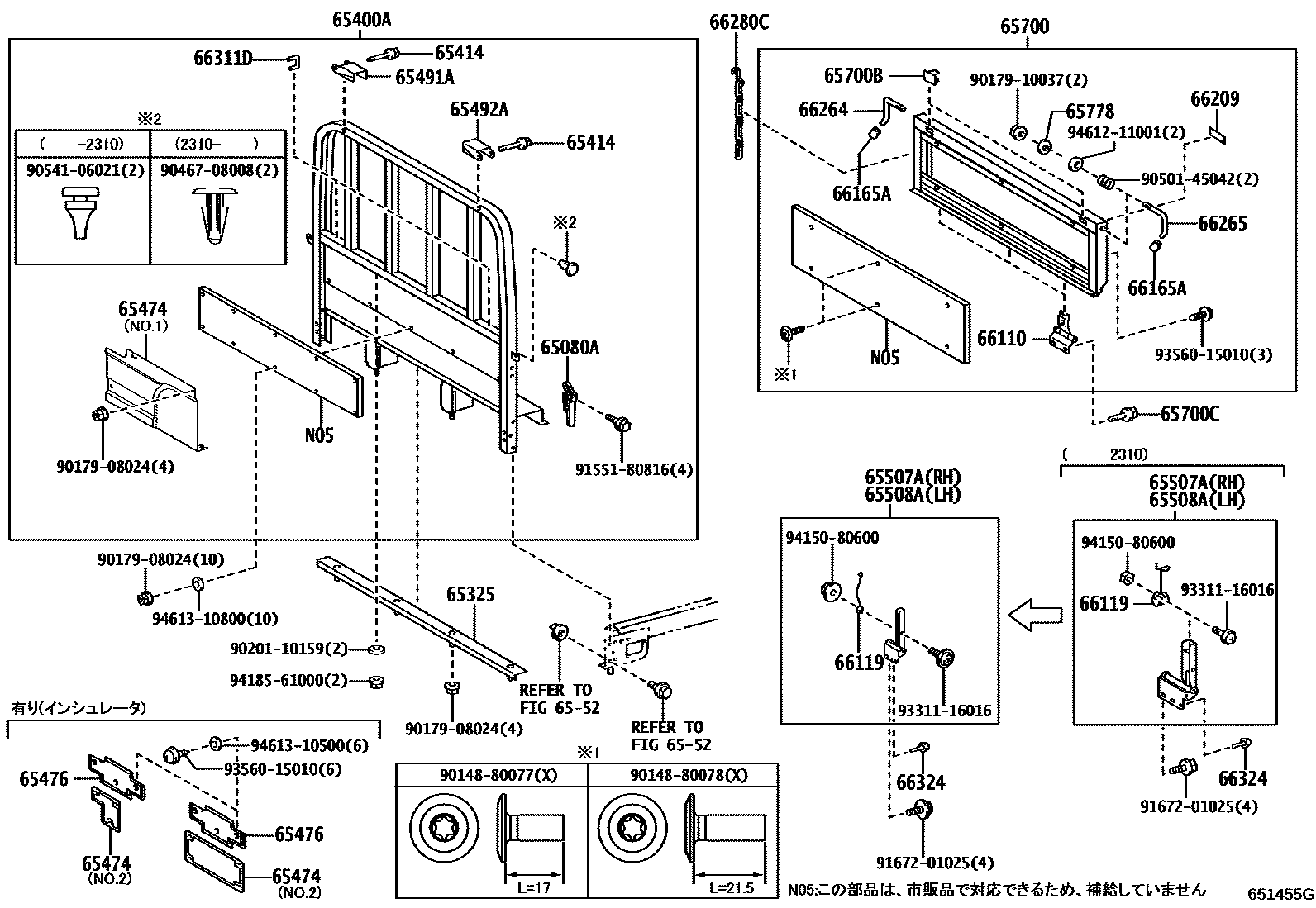

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1

65080AHANDLE ASSY, SIDE GATE LATCH

main65080-92701×2iXKC605,XKU605,655..CBU; XKU645202103-202402

main65080-92702×2iXKC605,XKU605,655..CBU; XKU645202403

65325PLATE, FLOOR BOARD, FRONT

main65325-37020iXKC605,XKU605..CBU202103

main65325-37090iXKU645; XKU655..CBU202103

65400AGUARD ASSY, REAR BODY

main65400-37Q60iXKU645; XKU655..T4..CBU202103-202205

main65400-37Q70iXKU655..T3..CBU202103-202205

main65400-37U40iXKC605,XKU605..CBU202103-202306

main65400-37U41iXKC605,XKU605..CBU202307-202309

main65400-37U42iXKC605,XKU605..CBU202310

main65400-37W00iXKU645; XKU655..T4..CBU202205-202309

main65400-37W01iXKU645; XKU655..T4..CBU202310

main65400-37W10iXKU655..T3..CBU202205-202309

main65400-37W11iXKU655..T3..CBU202310

65414STOPPER, GUARD FRAME

main90119-08913×2iXKC605,XKU605..CBU202103

65474INSULATOR, HEADER

main65474-25090iXKC605,XKU605,655..CBU; XKU645202103-202106

main65474-25110iXKC605,XKU605,655..CBU; XKU645202107

main65474-37150iXKC605,XKU605,655..CBU; XKU645202103

main65474-37170iXKC605,XKU605,655..CBU; XKU645202103

65476INSULATOR, HEADER BOARD, NO.2

main65476-25050×2iXKC605,XKU605,655..CBU; XKU645202107

main65476-37040×2iXKC605,XKU605,655..CBU; XKU645202103-202106

65491ASTOP, GUARD FRAME LOAD SLIDE, RH

main65491-25020iXKC605,XKU605..CBU202103

65492ASTOP, GUARD FRAME LOAD SLIDE, LH

main65492-25020iXKC605,XKU605..CBU202103

65507ASUPPORT SUB-ASSY, CORNER, RH

main65507-25011iXKC605,XKU605,655..CBU; XKU645202310

main65507-37051iXKC605,XKU605,655..CBU; XKU645202103-202310

65508ASUPPORT SUB-ASSY, CORNER, LH

main65508-25011iXKC605,XKU605,655..CBU; XKU645202310

main65508-37051iXKC605,XKU605,655..CBU; XKU645202103-202310

6552REAR BODY FLOOR & FENDER

→ Go to FIG 65-52

65700GATE ASSY, REAR BODY TAIL

main65700-37251iXKU645; XKU655..CBU202103-202205

main65700-37260iXKC605,XKU605..CBU202103-202306

main65700-37261iXKC605,XKU605..CBU202307

main65700-37330iXKU645; XKU655..CBU202205

65700BPLUG, HOLE(FOR TAIL GATE)

main90950-01430×2iXKC605,XKU605,655..CBU; XKU645202103

65700CBOLT, W/WASHER(FOR TAIL GATE)

main91551-80820×6iXKC605,XKU605..CBU; XKU645; XKU655..CBU202103

65778STOPPER, TAIL GATE STAY

main65772-37010×2iXKC605,XKU605,655..CBU; XKU645202103

66110HINGE ASSY, TAIL GATE

main66110-37021×3iXKC605,XKU605..CBU; XKU645; XKU655..CBU202103

66119SPRING, TAIL GATE CHECK BALL

main72771-25011iXKC605,XKU605,655..CBU; XKU645202310

main72772-25011iXKC605,XKU605,655..CBU; XKU645202310

main90035-08023iXKC605,XKU605,655..CBU; XKU645202103-202310

main90035-08024iXKC605,XKU605,655..CBU; XKU645202103-202310

66165ACAP, GATE LATCH HANDLE

main66165-87402×2iXKC605,XKU605,655..CBU; XKU645202103

66209PROTECTOR SUB-ASSY, REAR

main66243-37060×3iXKC605,XKU605..CBU202103

66264HANDLE, TAIL GATE LATCH, RH

main66264-37010iXKC605,XKU605,655..CBU; XKU645202103

66265HANDLE, TAIL GATE LATCH, LH

main66265-37010iXKC605,XKU605,655..CBU; XKU645202103

66280CCHAIN ASSY, TAIL GATE

main66280-37030×2iXKC605,XKU605,655..CBU; XKU645202103

66311DHOOK, ROPE

main66312-37030×2iXKC605,XKU605,655..CBU; XKU645202103

66324CUSHION, TAIL GATE SIDE

main90541-09107×2iXKC605,XKU605,655..CBU; XKU645202103

9014880077

main90148-80077

9014880078

main90148-80078

9017908024

main90179-08024

9017910037

main90179-10037

9020110159

main90201-10159

9046708008

main90467-08008

9050145042

main90501-45042

9054106021

main90541-06021

9155180816

main91551-80816

9167201025

main91672-01025

9331116016

main93311-16016

9356015010

main93560-15010

9415080600

main94150-80600

9418561000

main94185-61000

9461211001

main94612-11001

9461310500

main94613-10500

9461310800

main94613-10800

41 parts on this diagram · 2 diagrams in section
