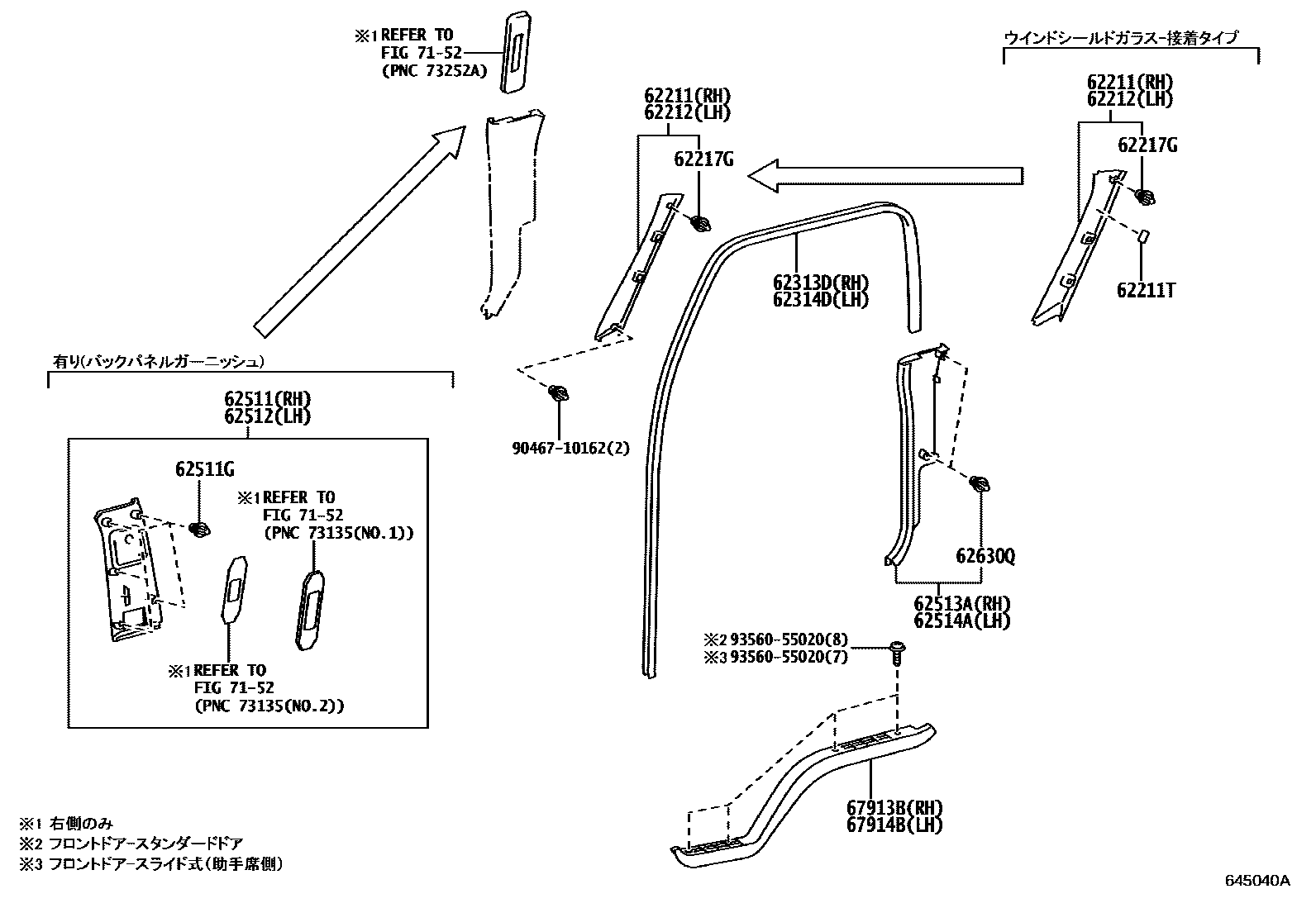

INSIDE TRIM BOARD

0001 1 0002 1��(���������������)

62211GARNISH, FRONT PILLAR, RH

main62210-37020-B0iXKC605,XKU605,645,655202103

GRAY,TRIM1#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main62217-89101iXKC605,XKU605,645,655202103

62212GARNISH, FRONT PILLAR, LH

main62220-37020-B0iXKC605,XKU605,645,655202103

GRAY,TRIM1#

62217GCLIP, FRONT PILLAR GARNISH

main62217-13010iXKC605,XKU605,645,655202103

62313DTRIM, FRONT DOOR OPENING, RH

main62313-89122-B1iXKC605,XKU605,645,655202103

GRAY,TRIM1#

62314DTRIM, FRONT DOOR OPENING, LH

main62314-89106-B1iXKC605,XKU605,645,655202103

GRAY,TRIM1#

62511BOARD, QUARTER INSIDE TRIM, RH

main62510-37060

main90467-10161

62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)

62512BOARD, QUARTER INSIDE TRIM, LH

main62520-37040

62513APANEL, QUARTER TRIM, LOWER RH

main62530-37020-B0iXKC605,XKU605,645,655202103

GRAY,TRIM1#

62514APANEL, QUARTER TRIM, LOWER LH

main62540-37020-B0iXKC605,XKU605,645,655202103

GRAY,TRIM1#

62630QCLIP (FOR QUARTER TRIM)

main90467-10161iXKC605,XKU605,645,655202103

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-37010-B1iXKC605,XKU605,645,655202103

GRAY,TRIM1#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-37010-B1iXKC605,XKU605,645,655202103

GRAY,TRIM1#

7152

9046710162

main90467-10162

9356055020

main93560-55020

17 parts on this diagram · 2 diagrams in section
