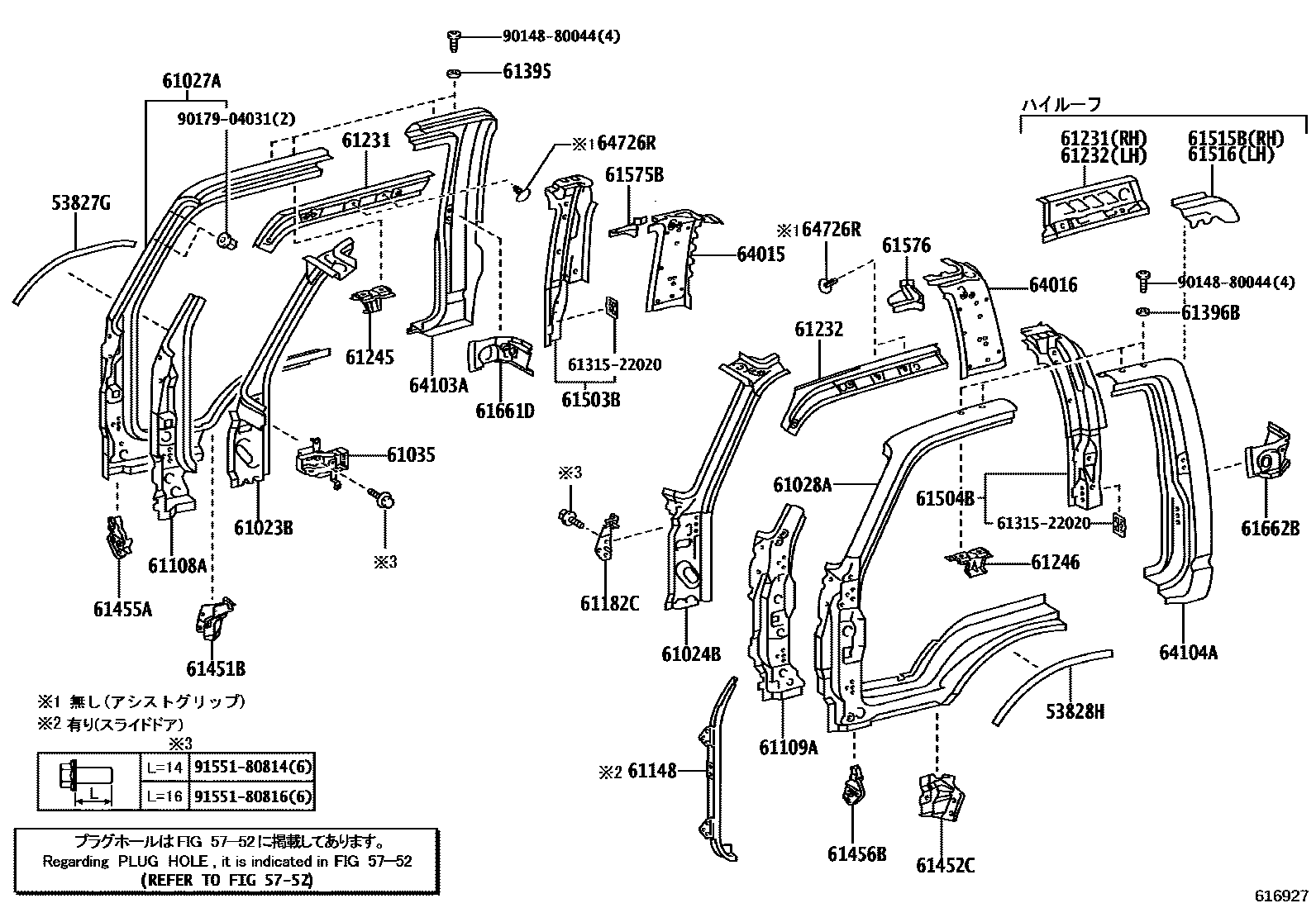

SIDE MEMBER

0001 1��������������=��������������0002 1��������������=���������

53827GPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-37010iXKC605,XKU605,645,655202103

53828HPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53827-37010iXKC605,XKU605,645,655202103

5752HOLE PLUG

→ Go to FIG 57-52

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-37051iXKU605..IV5202103

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-37131iXKU605..IV5202103

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-37120iXKC605,XKU605..IV3; XKU645,655;XKU605..IV5202103

main61027-37130iXKC605,XKU605..T4; XKU605..IV5;XKU645,655..IV3; XKU645,655..IV3202103

main61131-37073iXKU605..IV5202103

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-37150iXKC605,XKU605..IV3; XKU645,655;XKU605..IV5202103

main61028-37160iXKC605,XKU605..T4; XKU605..IV5;XKU645,655..IV3; XKU645,655..IV3202103

main61132-37112iXKU605..IV5202103

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61035-37070iXKC605,XKU605,645,655202103

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-37060iXKC605,XKU605,645,655202103

main61108-37031iXKU605..IV5202103

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-37050iXKC605,XKU605,645,655202103

main61109-37031iXKU605..IV5202103

61148EXTENSION, FRONT BODY PILLAR, OUTER LH

main61148-37040iXKU605..IV5202103

61182CBRACKET, INSTRUMENT SIDE, LH

main61182-37040iXKC605,XKU605,645,655202103

61231RAIL, ROOF SIDE, INNER RH

main61231-89119iXKC605,XKU605..IV3; XKU645,655;XKU605..IV5202103

main61231-89120iXKC605,XKU605..T4; XKU605..IV5;XKU645,655..IV3; XKU645,655..IV3202103

main61231-37060iXKU605..IV5202103

61232RAIL, ROOF SIDE, INNER LH

main61232-89119iXKC605,XKU605..IV3; XKU645,655;XKU605..IV5202103

main61232-89120iXKC605,XKU605..T4; XKU605..IV5;XKU645,655..IV3; XKU645,655..IV3202103

main61232-37060iXKU605..IV5202103

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-37010iXKC605,XKU605..T4; XKU605..IV5;XKU645,655..IV3; XKU645,655..IV3202103

main61245-37020iXKC605,XKU605..IV3; XKU645,655;XKU605..IV5202103

61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH

main61245-37010iXKC605,XKU605..T4; XKU605..IV5;XKU645,655..IV3; XKU645,655..IV3202103

main61246-37010iXKC605,XKU605..IV3; XKU645,655;XKU605..IV5202103

61395SEAL, CENTER BODY PILLAR, RH

main61395-37010×4iXKC605,XKU605,645,655202103

61396BSEAL, CENTER BODY PILLAR, LH

main61395-37010×4iXKC605,XKU605,645,655202103

61451BPLATE, STEP, LOWER RH

main61451-37010iXKC605,XKU605,645,655202103

61452CPLATE, STEP, LOWER LH

main61452-37010iXKC605,XKU605,645,655202103

61455ARETAINER, FRONT STEP, RH

main61455-37010iXKC605,XKU605,645,655202103

61456BRETAINER, FRONT STEP, LH

main61456-37010iXKC605,XKU605,645,655202103

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-37011iXKC605,XKU605..T4; XKU605..IV5;XKU645,655..IV3; XKU645,655..IV3202103

main61503-37030iXKC605,XKU605..IV3; XKU645,655;XKU605..IV5202103

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61504-37011iXKC605,XKU605..T4; XKU605..IV5;XKU645,655..IV3; XKU645,655..IV3202103

main61504-37020iXKC605,XKU605..IV3; XKU645,655;XKU605..IV5202103

main61504-37040iXKU605..IV5202103

61515BEXTENSION, QUARTER LOCK PILLAR, RH

main61515-37010iXKC605,XKU605..IV3; XKU645,655;XKU605..IV5202103

61516EXTENSION, QUARTER LOCK PILLAR, LH

main61516-37010iXKC605,XKU605..IV3; XKU645,655;XKU605..IV5202103

61575BPLATE, CAB REAR PILLAR, UPPER RH

main61575-37010iXKC605,XKU605,645,655202103

61576PLATE, CAB REAR PILLAR, UPPER LH

main61576-37010iXKC605,XKU605,645,655202103

61661DEXTENSION, QUARTER PANEL TO UPPER BACK, RH

main61661-37010iXKC605,XKU605,645,655202103

61662BEXTENSION, QUARTER PANEL TO UPPER BACK, LH

main61662-37010iXKC605,XKU605,645,655202103

64015PANEL SUB-ASSY, BACK CORNER, INNER RH

main61531-37022iXKC605,XKU605,645,655202103

main61531-37012iXKC605,XKU605,645,655..CBU,IV3; XKC605,XKU605..IV3; XKU645,655..IV3202103

64016PANEL SUB-ASSY, BACK CORNER, INNER LH

main61532-37012iXKC605,XKU605,645,655202103

main61532-37023iXKC605,XKU605,645,655..CBU,IV3; XKC605,XKU605..IV3; XKU645,655..IV3202103

64103APANEL SUB-ASSY, BACK CORNER, OUTER RH

main61111-37310iXKC605,XKU605..IV3; XKU645,655;XKU605..IV5202103

main61111-37320iXKC605,XKU605..T4; XKU605..IV5;XKU645,655..IV3; XKU645,655..IV3202103

main61611-37152iXKU605..IV5202103

64104APANEL SUB-ASSY, BACK CORNER, OUTER LH

main61112-37420iXKC605,XKU605..IV3; XKU645,655;XKU605..IV5202103

main61112-37430iXKC605,XKU605..T4; XKU605..IV5;XKU645,655..IV3; XKU645,655..IV3202103

main61612-37122iXKU605..IV5202103

64726RCLIP, ROOF SIDE PANEL

main90467-06048-B9×2iXKC605,XKU605,645,655202103

6131522020RETAINER, DOOR LOCK STRIKER PLATE

main61315-22020

9014880044

main90148-80044

9017904031

main90179-04031

9155180814

main91551-80814

9155180816

main91551-80816

40 parts on this diagram · 2 diagrams in section
