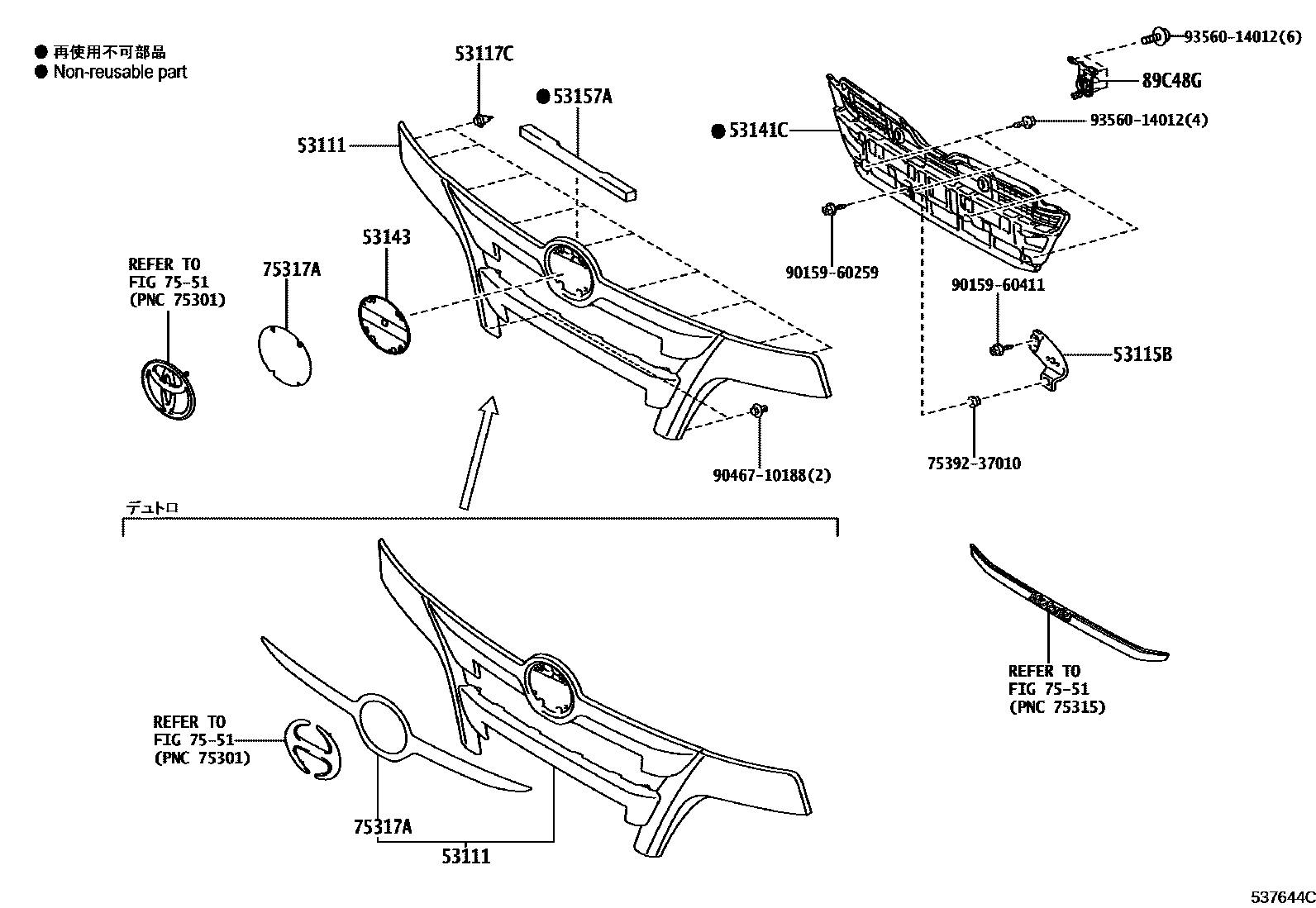

RADIATOR GRILLE

53111GRILLE, RADIATOR

main53111-37A80iXKC605,XKU605,645,655202103

main53111-37A90-A0supersedes 53111-37A70-A0iXKC605,XKU605,645,655202103

main53111-37A90-B0supersedes 53111-37A70-B1iXKC605,XKU605,645,655..CBU,IV3202103

main53111-37A90-D0supersedes 53111-37A70-D0iXKU655..30T;XKU605..20T..IV3202103

main53111-37A90-H0supersedes 53111-37A70-H0iXKC605,XKU605,645,655202103

main53111-37A90-J0supersedes 53111-37A70-J0iXKU655..30T;XKU605..20T..IV3202103

main53111-37A90-J1supersedes 53111-37A70-J1iXKC605,XKU605,645,655202103

53115BBRACKET, RADIATOR GRILLE

main53115-37100iXKC605,XKU605,645,655202103

53117CRETAINER, RADIATOR GRILLE, NO.1

main67771-37040×9iXKC605,XKU605,645,655202103

53141CGARNISH, RADIATOR GRILLE

main53142-37010iXKC605,XKU605,645,655202103

53143GARNISH, RADIATOR GRILLE, NO.3

main53143-37010iXKC605,XKU605,645,655202103

53157ASEAL, RADIATOR GRILLE, NO.3

main53157-37020iXKC605,XKU605,645,655202103

75317APLATE, RADIATOR GRILLE ORNAMENT

main75317-37050supersedes 75317-37020iXKC605,XKU605,645,655202103

7551EMBLEM & NAME PLATE

→ Go to FIG 75-51

89C48GRETAINER, ULTRASONIC SENSOR, FRONT CENTER

main89348-37031iXKC605,XKU605,645,655202103

main89348-37041iXKC605,XKU605,645,655202103

7539237010RETAINER, OUTSIDE MOULDING

main75392-37010

9015960259

main90159-60259

9015960411

main90159-60411

9046710188

main90467-10188

9356014012

main93560-14012

14 parts on this diagram · 1 diagram in section
