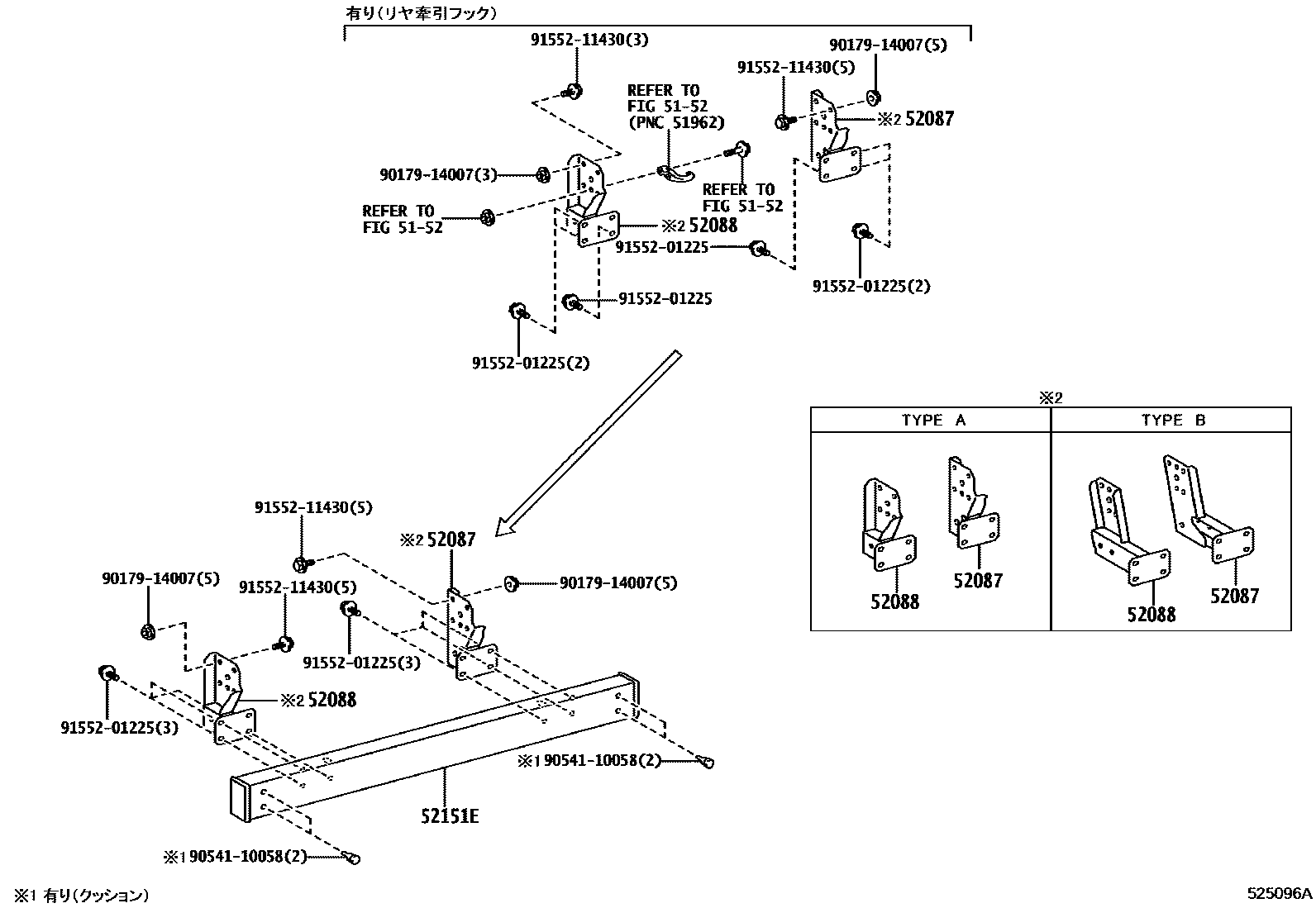

REAR BUMPER & BUMPER STAY

0001 1 0002 1��(������������)

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

52087STAY SUB-ASSY, REAR BUMPER SIDE, RH

main52151-37510iXKC605,XKU605..IV3; XKU645; XKU645,655; XKU645,655..IV3202103

main52151-37520iXKC605,XKU605..IV3202103

52088STAY SUB-ASSY, REAR BUMPER SIDE, LH

main52152-37210iXKC605,XKU605..IV3; XKU645; XKU645,655; XKU645,655..IV3202103

main52152-37220iXKC605,XKU605..IV3202103

52151EBAR, REAR BUMPER

main52105-37430iXKU645,655202103

main52105-37420iXKC605,XKU605..IV3202103

9017914007

main90179-14007

9054110058

main90541-10058

9155201225

main91552-01225

9155211430

main91552-11430

8 parts on this diagram · 2 diagrams in section
