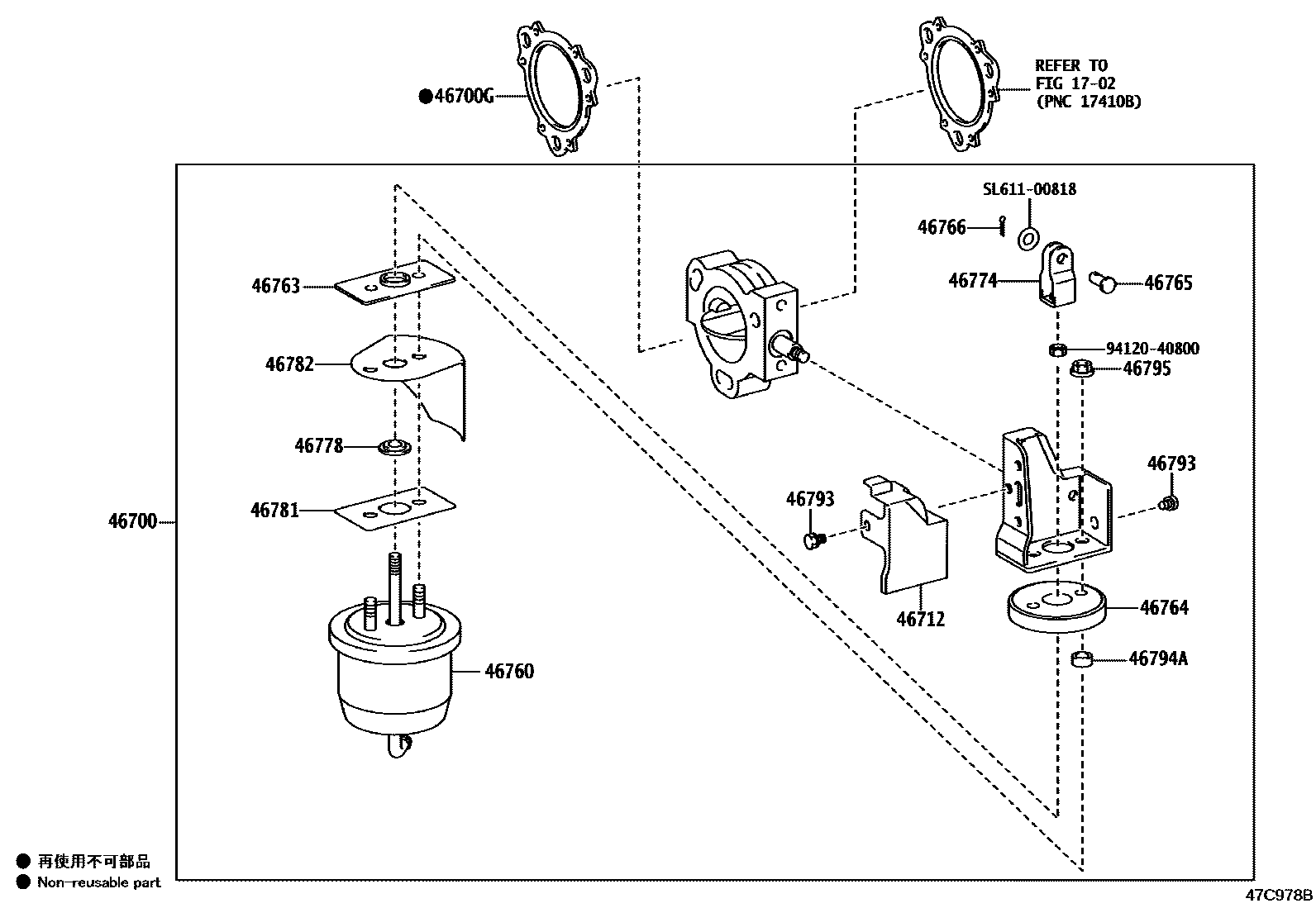

EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER

1702

46700RETARDER ASSY, EXHAUST

main46700-37241iXKC605,XKU605,645,655202103

46700GGASKET(FOR EXHAUST BRAKE)

main17451-E0110iXKC605,XKU605,645,655202103

46712COVER, EXHAUST VALVE LINK

main46712-37230iXKC605,XKU605,645,655202103

46760CYLINDER ASSY, EXHAUST RETARDER VACUUM

main46760-37240iXKC605,XKU605,645,655202103

46763COVER, VACUUM CYLINDER DUST, NO.1

main46763-37230iXKC605,XKU605,645,655202103

46764COVER, VACUUM CYLINDER DUST, NO.2

main46764-37230iXKC605,XKU605,645,655202103

46765PIN, VACUUM CYLINDER CLEVIS

main46765-37240iXKC605,XKU605,645,655202103

46766PIN, VACUUM CYLINDER CLEVIS SNAP

main46766-37240iXKC605,XKU605,645,655202103

46774CLEVIS, EXHAUST BRAKE ROD

main46774-37240iXKC605,XKU605,645,655202103

46778BEARING, VACUUM CYLINDER

main46778-37241iXKC605,XKU605,645,655202103

46781INSULATOR, EXHAUST BRAKE CHAMBER, NO.1

main46781-28010iXKC605,XKU605,645,655202103

46782INSULATOR, EXHAUST BRAKE CHAMBER, NO.2

main46782-EV010iXKC605,XKU605,645,655202103

46793BOLT, EXHAUST VALVE LINK COVER

main46793-36010iXKC605,XKU605,645,655202103

46794ACOLLAR, ACTUATOR ROD GUIDE

mainSZ01015003iXKC605,XKU605,645,655202103

46795NUT, EXHAUST VALVE BRACKET

main46795-36260iXKC605,XKU605,645,655202103

9412040800

main94120-40800

SL61100818

mainSL611-00818

18 parts on this diagram · 1 diagram in section
