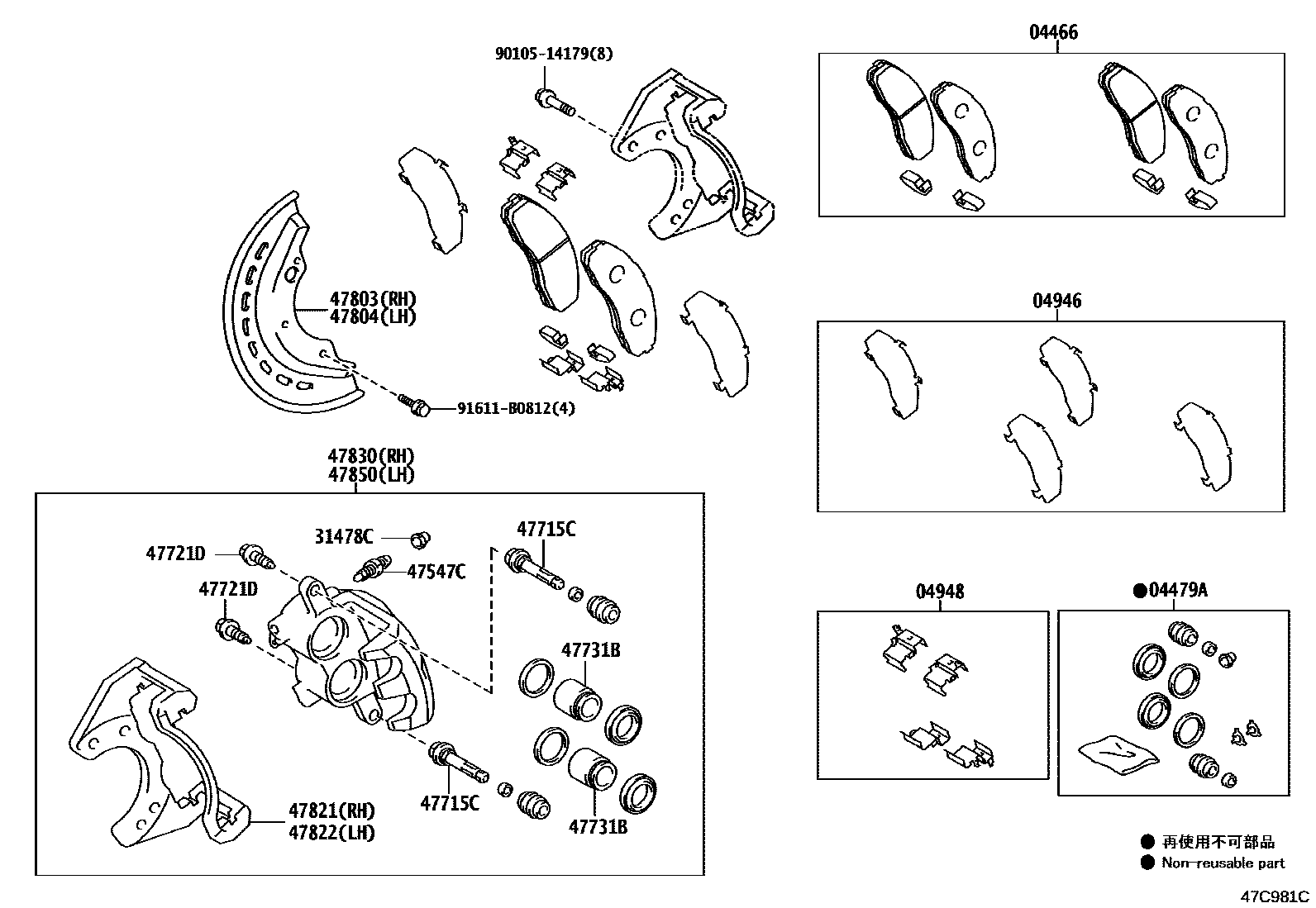

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04465-37220iXKC605202103

main04466-37141iXKU605,645,655..CBU,IV3202103

04479ACYLINDER KIT, DISC BRAKE, REAR

main0447B-37010iXKC605202103

main0447C-37010iXKU605,645,655..CBU,IV3202103

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04945-37240iXKC605202103

main04946-37031iXKU605,645,655..CBU,IV3202103

04948FITTING KIT, DISC BRAKE, REAR

main0494A-37010iXKC605202103

main0494A-37030iXKU605,645,655..CBU,IV3202103

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iXKC605202103

main31478-37030iXKU605,645,655..CBU,IV3202103

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12030iXKC605202103

main47847-37030iXKU605,645,655..CBU,IV3202103

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-37260iXKC605202103

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA601iXKC605202103

main90105-37120iXKU605,645,655..CBU,IV3202103

47731BPISTON, REAR DISC BRAKE

main47731-60070iXKC605202103

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-37040iXKC605,XKU605,645,655..CBU,IV3202103

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-37040iXKC605,XKU605,645,655..CBU,IV3202103

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-37030iXKU605,645,655..CBU,IV3202103

main47821-37040iXKC605202103

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-37030iXKU605,645,655..CBU,IV3202103

main47822-37040iXKC605202103

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-37031iXKU605,645,655..CBU,IV3202103

main47830-37042iXKC605202103

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-37031iXKU605,645,655..CBU,IV3202103

main47850-37042iXKC605202103

9010514179

main90105-14179

91611B0812

main91611-B0812

17 parts on this diagram · 2 diagrams in section
