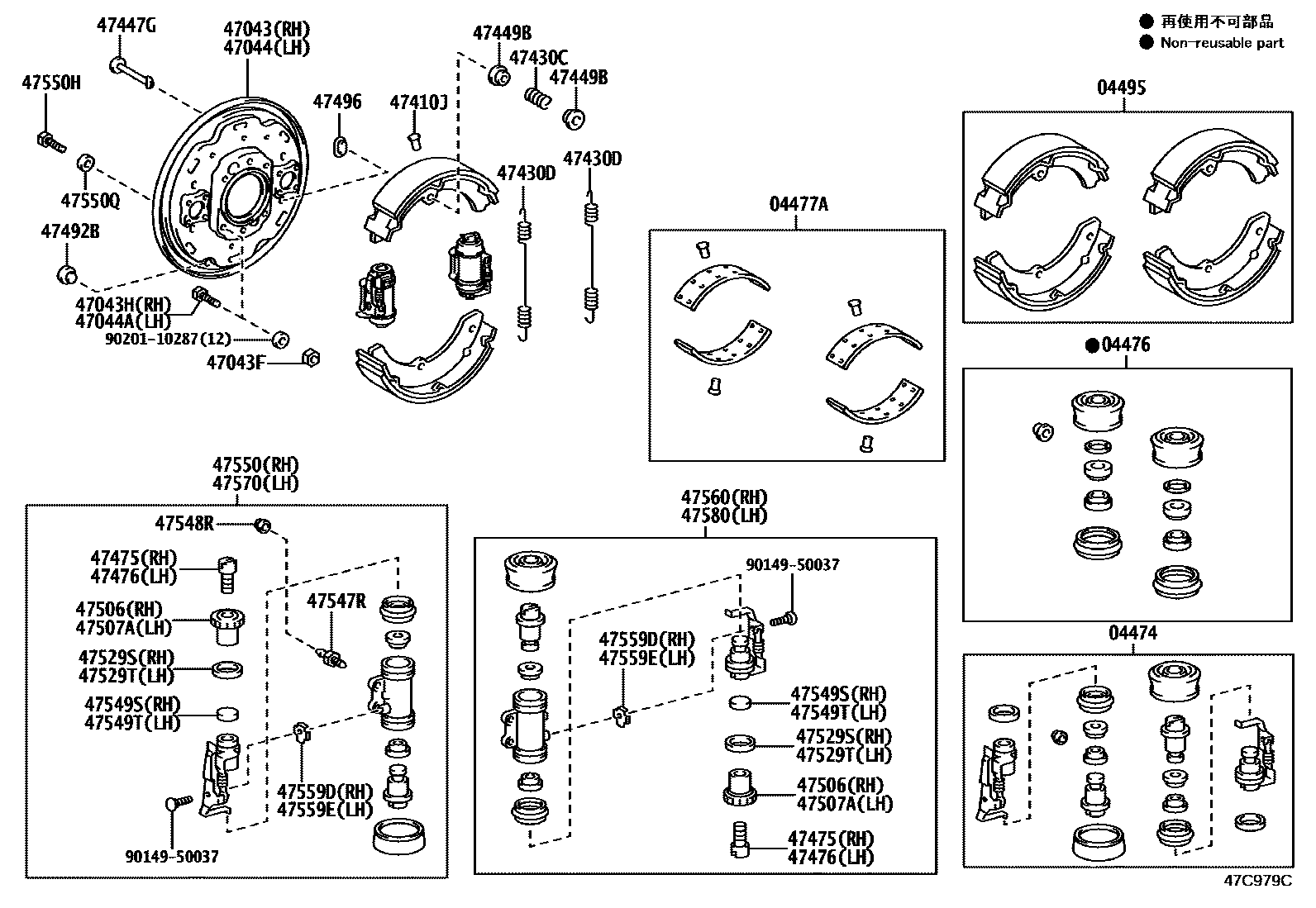

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04468-37020iXKU605..IV5202103

main04474-37240iXKU605..IV5202103

04476CUP KIT, REAR WHEEL CYLINDER

main04476-37040×2iXKU605..IV5202103

04477ALINING KIT, BRAKE

main04477-37040iXKU605..IV5202103

04495SHOE KIT, REAR BRAKE

main04495-37040iXKU605..IV5202103

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-37060iXKU605..IV5202103

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94130-01002×12iXKU605..IV5202103

47043HBOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)

main90114-10063×6iXKU605..IV5202103

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-37060iXKU605..IV5202103

47044ABOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)

main90114-10063×6iXKU605..IV5202103

47410JRIVET, BRAKE LINING(FOR REAR BRAKE)

main90266-05005×12iXKU605..IV5202103

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012×4iXKU605..IV5202103

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90507-29006×4iXKU605..IV5202103

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-60010×4iXKU605..IV5202103

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iXKU605..IV5202103

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-36070×2iXKU605..IV5202103

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47554-36070×2iXKU605..IV5202103

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010×4iXKU605..IV5202103

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-36020×8iXKU605..IV5202103

47506NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47506-36020×2iXKU605..IV5202103

47507ANUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47507-36020×2iXKU605..IV5202103

47529SSEAL, REAR BRAKE ADJUST NUT DUST, RH

main47529-36010×2iXKU605..IV5202103

47529TSEAL, REAR BRAKE ADJUST NUT DUST, LH

main47529-36010×2iXKU605..IV5202103

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-27020×2iXKU605..IV5202103

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iXKU605..IV5202103

47549SSEAT, REAR BRAKE AUTOMATIC ADJUST NUT, RH

main47549-37091×2iXKU605..IV5202103

47549TSEAT, REAR BRAKE AUTOMATIC ADJUST NUT, LH

main47549-37091×2iXKU605..IV5202103

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-37113iXKU605..IV5202103

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90101-10127×16iXKU605..IV5202103

47550QWASHER(FOR REAR WHEEL CYLINDER)

main90201-10287×16iXKU605..IV5202103

47559DSPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, RH

main47559-36010×2iXKU605..IV5202103

47559ESPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, LH

main47559-36010×2iXKU605..IV5202103

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-37083iXKU605..IV5202103

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-37073iXKU605..IV5202103

47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

main47580-37073iXKU605..IV5202103

9014950037

main90149-50037

9020110287

main90201-10287

36 parts on this diagram · 1 diagram in section
