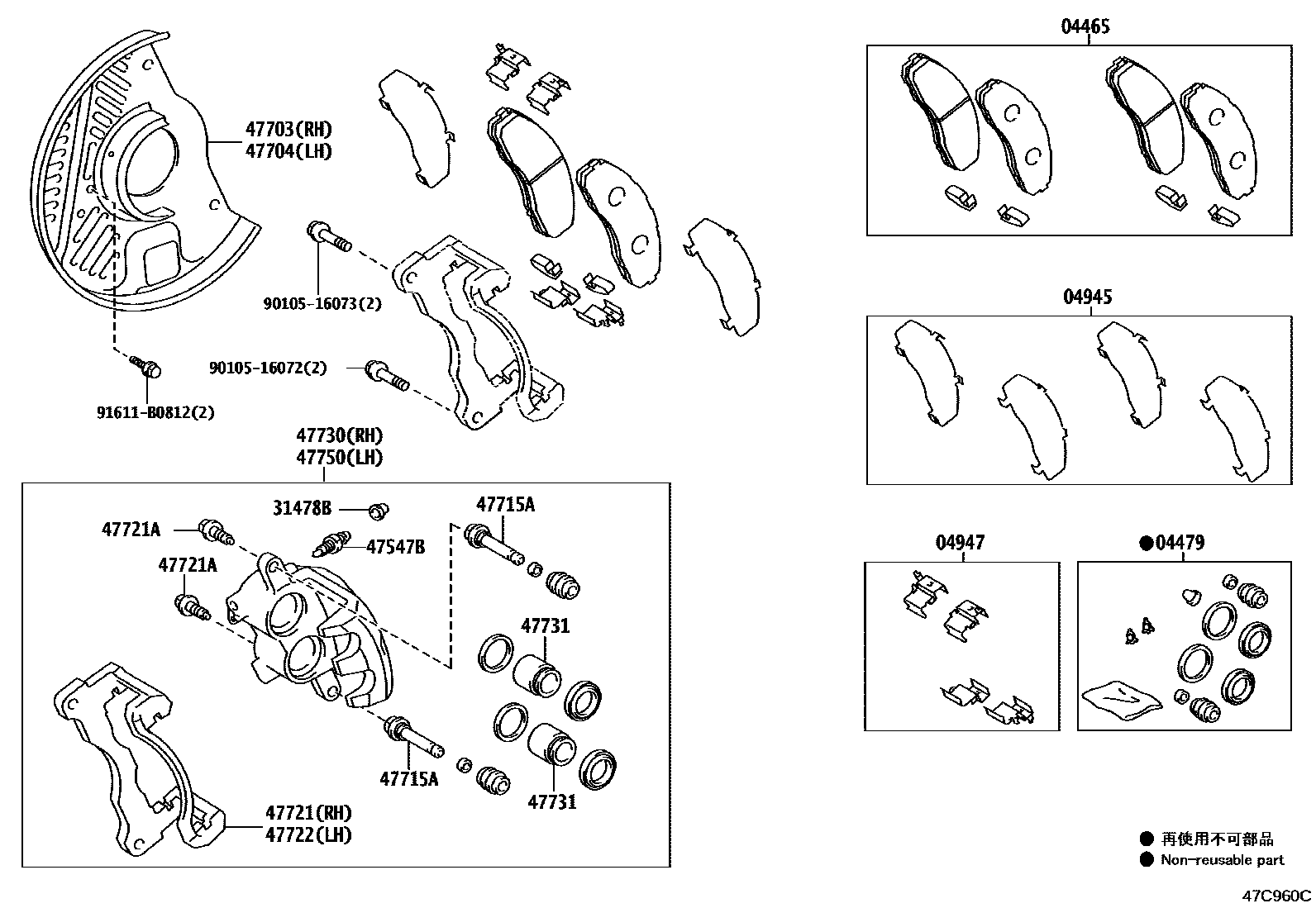

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-37220iXKC605202103

main04465-37240iXKU605,655..T4..20T202103

main04465-37250iXKU605,645..30T;XKU605,655..DM6,T3202103

04479CYLINDER KIT, DISC BRAKE, FRONT

main0447B-37010×2iXKC605202103

main0447B-37021×2iXKU605,645,655202103

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-37220iXKU605,655..T4..20T202103

main04945-37230iXKU605,645..30T;XKU605,655..DM6,T3202103

main04945-37240iXKC605202103

04947FITTING KIT, DISC BRAKE, FRONT

main0494A-37010×2iXKC605202103

main0494A-37050×2iXKU605,645,655202103

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iXKC605,XKU605,645,655202103

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010×2iXKU605,645,655202103

main47547-12030×2iXKC605202103

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-37043iXKC605,XKU605,645,655202103

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-37043iXKC605,XKU605,645,655202103

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-37260×4iXKC605202103

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-37050iXKU605,655..T4..20T202103

main47721-37180iXKU605,645..30T;XKU605,655..DM6,T3202103

main47721-37260iXKC605202103

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA601×4iXKC605202103

main90119-08B87×4iXKU605,645,655202103

main90119-12256×4iXKU605,645,655202103

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-37050iXKU605,655..T4..20T202103

main47721-37180iXKU605,645..30T;XKU605,655..DM6,T3202103

main47721-37260iXKC605202103

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-37010iXKU605,655..T4..20T202103

main47730-37180iXKU605,645..30T;XKU605,655..DM6,T3202103

main47730-37262iXKC605202103

47731PISTON, FRONT DISC BRAKE

main47731-36020×4iXKU605,645,655202103

main47731-60070×4iXKC605202103

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-37010iXKU605,655..T4..20T202103

main47750-37180iXKU605,645..30T;XKU605,655..DM6,T3202103

main47750-37262iXKC605202103

9010516072

main90105-16072

9010516073

main90105-16073

91611B0812

main91611-B0812

18 parts on this diagram · 2 diagrams in section
