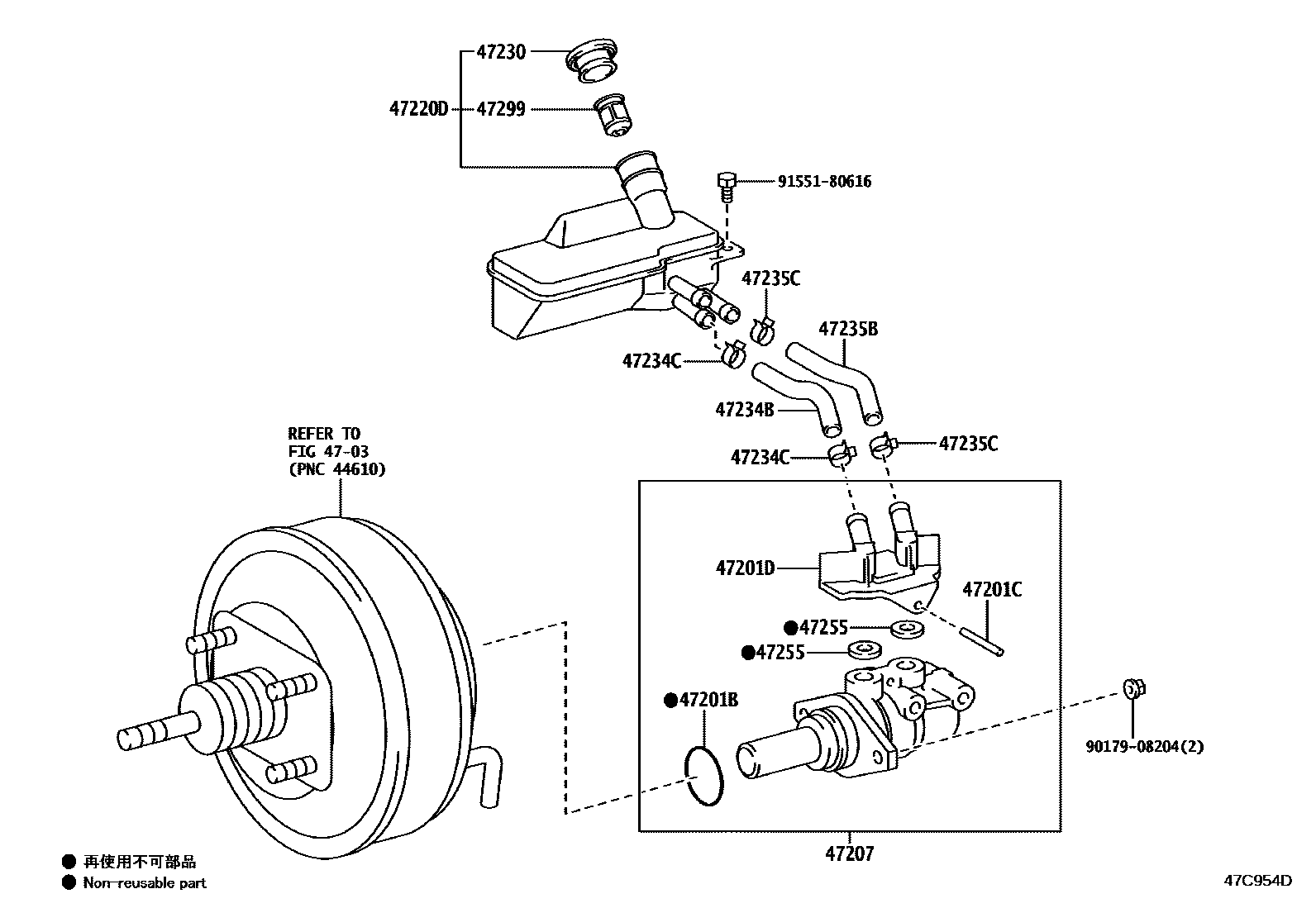

BRAKE MASTER CYLINDER

0001 1 0002 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-37360iXKU605,645,655202103

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iXKU605,645,655202103

main90015-AH002iXKC605202103

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iXKC605202103

47201DUNION, BRAKE MASTER CYLINDER, NO.1

main90015-AM007iXKC605202103

47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK

main47207-37151iXKC605202103

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-37160iXKC605,XKU605,645,655202103

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-37020iXKC605,XKU605,645,655202103

47234BTUBE, RESERVOIR, NO.1

main47234-37170iXKU605,645,655202103

main47234-37180iXKC605202103

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main96133-41500×2iXKC605,XKU605,645,655202103

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-37160iXKU605,645,655202103

main47235-37170iXKC605202103

47235CCLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2)

main96133-41500×2iXKC605,XKU605,645,655202103

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2iXKC605202103

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-28010iXKC605,XKU605,645,655202103

9017908204

main90179-08204

9155180616

main91551-80616

16 parts on this diagram · 2 diagrams in section
