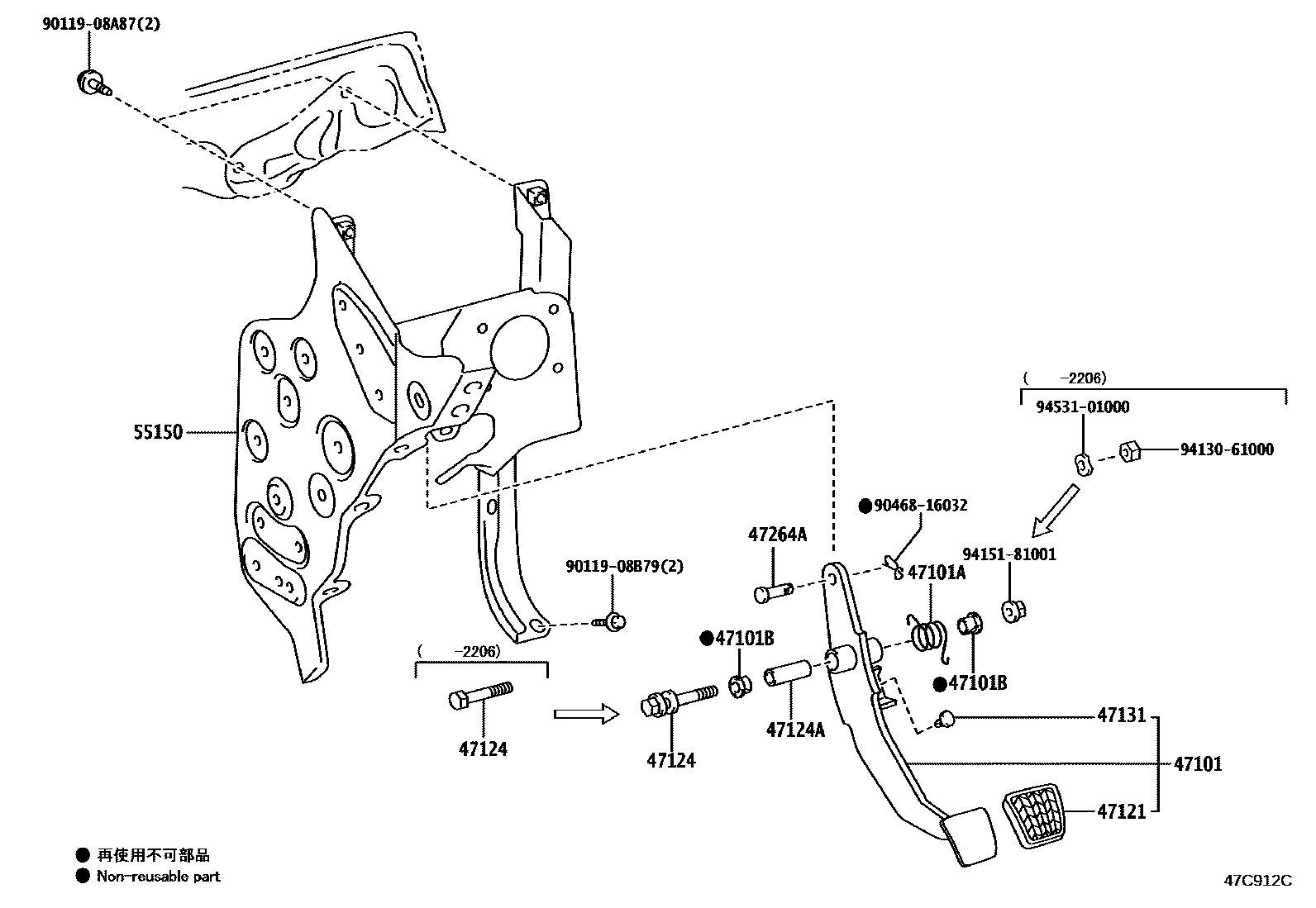

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-37131iXKC605202103

main47101-37150iXKU605,645,655202103

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35039iXKC605,XKU605,645,655202103

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iXKC605,XKU605,645,655202103

47121PAD, BRAKE PEDAL

main31321-52020iXKC605,XKU605,645,655202103

47124SHAFT, BRAKE PEDAL

main90119-10980iXKC605,XKU605,645,655202206

main91112-61070iXKC605,XKU605,645,655202103-202206

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iXKC605,XKU605,645,655202103

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iXKC605,XKU605,645,655202103

47264APIN(FOR PUSH ROD)

main90240-10037iXKC605,XKU605,645,655202103

55150BRACKET ASSY, PEDAL

main55150-37450iXKU605,645,655202103-202107

sub55150-37451

main55150-37451iXKU605,645,655202108

main55150-37460iXKC605202103-202107

sub55150-37461

main55150-37461iXKC605202108

9011908A87

main90119-08A87

9011908B79

main90119-08B79

9046816032

main90468-16032

9413061000

main94130-61000

9415181001

main94151-81001

9453101000

main94531-01000

15 parts on this diagram · 1 diagram in section
