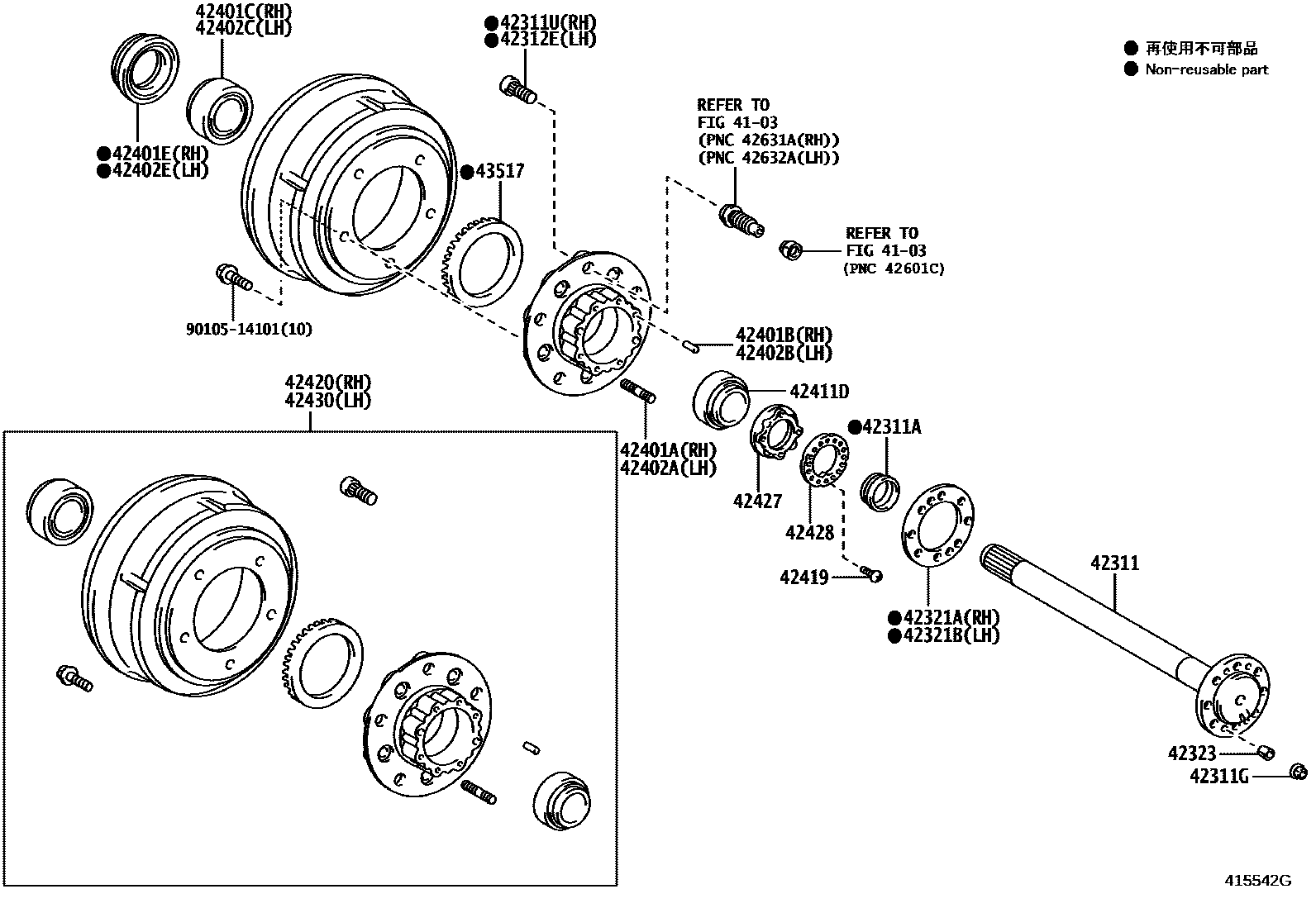

REAR AXLE SHAFT & HUB
4103
42311ASEAL, OIL(FOR REAR AXLE SHAFT)
42311GNUT(FOR REAR AXLE SHAFT)
42311UBOLT, HUB(FOR REAR AXLE RH)
42312EBOLT, HUB(FOR REAR AXLE LH)
42321AGASKET, REAR AXLE SHAFT, RH
42321BGASKET, REAR AXLE SHAFT, LH
42323WASHER, CONE (FOR REAR AXLE SHAFT)
42401ABOLT, STUD (FOR REAR AXLE HUB RH)
42401BPIN, STRAIGHT (FOR REAR AXLE HUB RH)
42401CBEARING (FOR REAR AXLE HUB INNER RH)
42401ESEAL, OIL (FOR REAR AXLE HUB RH)
42402ABOLT, STUD (FOR REAR AXLE HUB LH)
42402BPIN, STRAIGHT (FOR REAR AXLE HUB LH)
42402CBEARING (FOR REAR AXLE HUB INNER LH)
42402ESEAL, OIL (FOR REAR AXLE HUB LH)
42411DBEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)
42419SCREW, REAR AXLE BEARING LOCK NUT
42420HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH
42427NUT, REAR AXLE BEARING LOCK
42428PLATE, REAR AXLE LOCK NUT
42430HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH
43517ROTOR, SKID CONTROL, REAR
9010514101
main90105-14101
25 parts on this diagram · 2 diagrams in section
