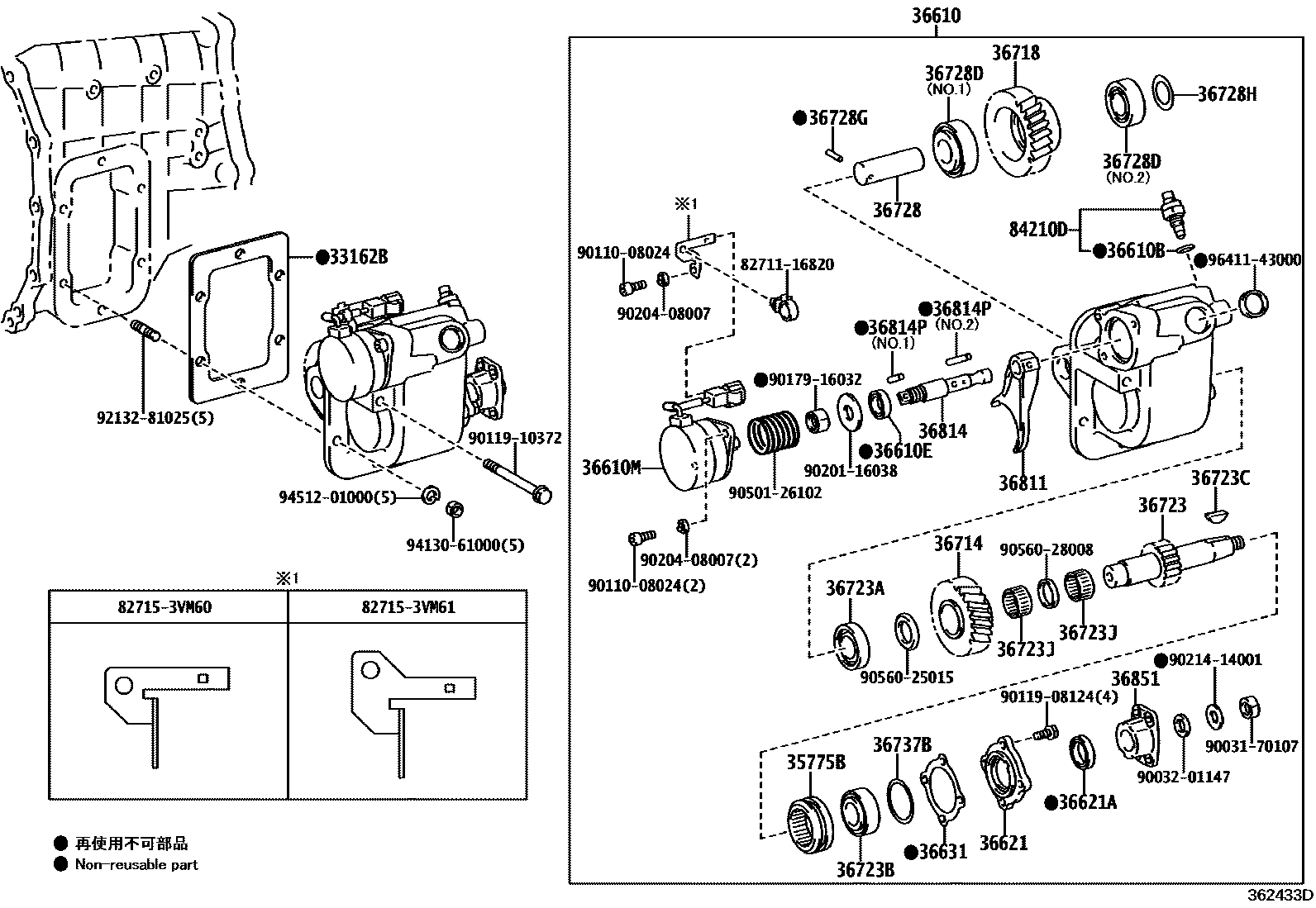

POWER TAKE-OFF CASE & GEAR
33162BGASKET, POWER TAKE-OFF COVER
35775BSLEEVE, OUTPUT SHAFT
36610BGASKET, SEAT (FOR POWER TAKE-OFF)
36610ESEAL, OIL (FOR POWER TAKE-OFF)
36610MSOLENOID ASSY, POWER TAKE-OFF
36621RETAINER, POWER TAKE-OFF BEARING
36621ASEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
36631GASKET, POWER TAKE-OFF BEARING RETAINER
36714GEAR, POWER TAKE-OFF OUTPUT
36718GEAR, POWER TAKE-OFF IDLER
36723SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723ABEARING (FOR OUTPUT SHAFT FRONT)
36723BBEARING (FOR OUTPUT SHAFT REAR)
36723CKEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT)
36723JBEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
36728SHAFT, POWER TAKE-OFF IDLER
36728DBEARING (FOR POWER TAKE-OFF IDLER SHAFT)
36728GPIN (FOR POWER TAKE-OFF IDLER SHAFT)
36728HSHIM (FOR POWER TAKE-OFF IDLER SHAFT)
36737BSHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
36811FORK, POWR TAKE-OFF SHIFT, NO.1
36814SHAFT, POWR TAKE-OFF FORK, NO.1
36814PPIN (FOR POWER TAKE-OFF SHIFT SHAFT)
36851RETAINER, POWER TAKE-OFF JOINT
84210DSWITCH ASSY, BACK-UP LAMP
8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16820
827153VM60BRACKET,WIRING HARNESS CLAMP
main82715-3VM60
827153VM61BRACKET,WIRING HARNESS CLAMP
main82715-3VM61
9003170107
main90031-70107
9003201147
main90032-01147
9011008024
main90110-08024
9011908124
main90119-08124
9011910372
main90119-10372
9017916032
main90179-16032
9020116038
main90201-16038
9020408007
main90204-08007
9021414001
main90214-14001
9050126102
main90501-26102
9056025015
main90560-25015
9056028008
main90560-28008
9213281025
main92132-81025
9413061000
main94130-61000
9451201000
main94512-01000
9641143000
main96411-43000
45 parts on this diagram · 1 diagram in section
