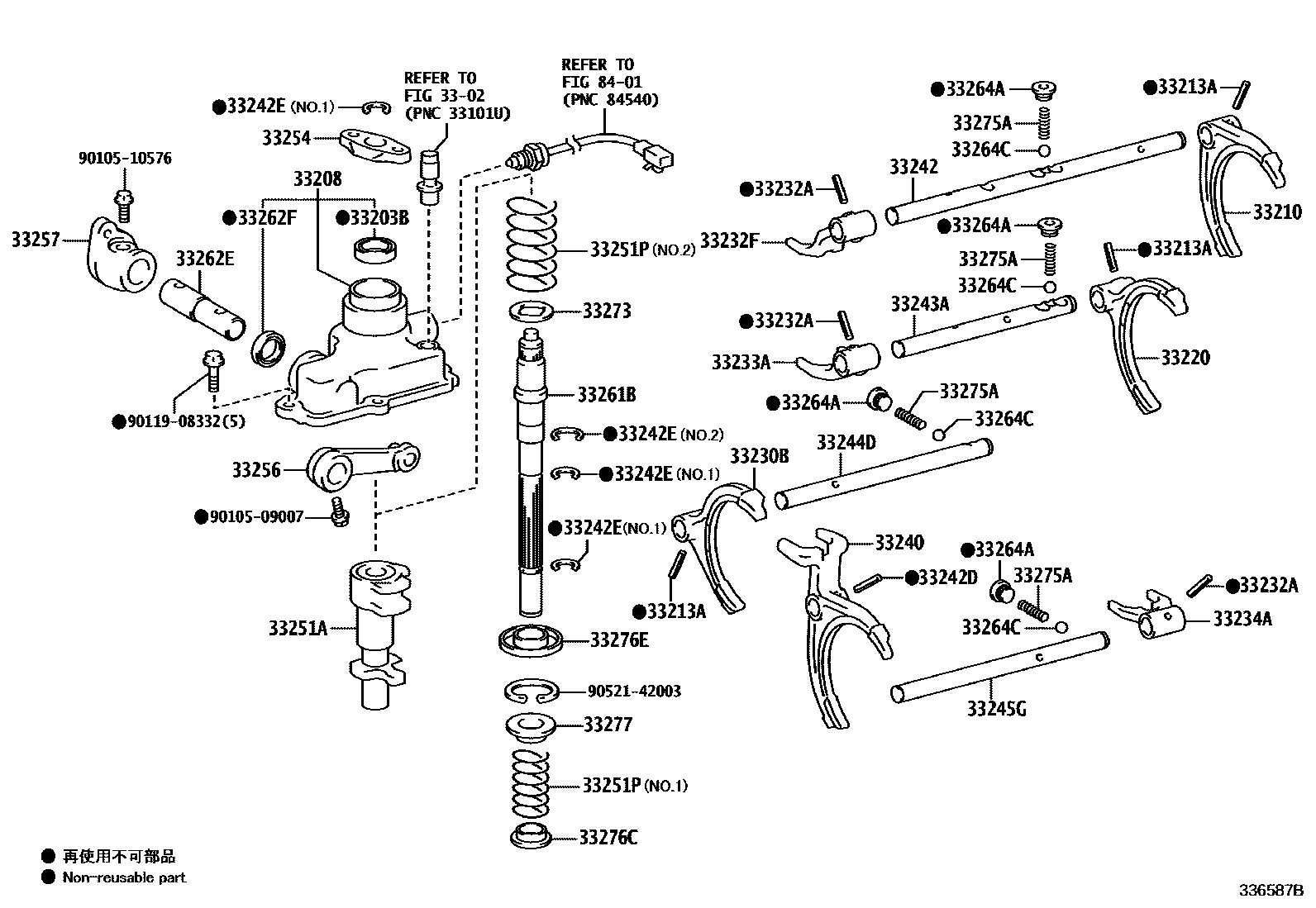

GEAR SHIFT FORK & LEVER SHAFT (MTM)
3302
33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)
33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT
33210FORK ASSY, GEAR SHIFT, NO.1
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33220FORK ASSY, GEAR SHIFT, NO.2
33230BFORK ASSY, GEAR SHIFT, NO.3
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33232FHEAD, GEAR SHIFT, NO.1
33233AHEAD, GEAR SHIFT, NO.2
33234AHEAD, GEAR SHIFT, NO.3
33240BRACKET ASSY, REVERSE SHIFT ARM
33242SHAFT, GEAR SHIFT FORK, NO.1
33242DPIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT)
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244DSHAFT, GEAR SHIFT FORK, NO.3
33245GSHAFT, GEAR SHIFT FORK, NO.4
33251ALEVER, SHIFT, INNER NO.1
33251PSPRING (FOR SHIFT & SELECT LEVER)
33254LEVER, SHIFT OUTER, NO.2
33256LEVER, SELECT INNER
33257LEVER, SELECT OUTER
33261BSHAFT, SHIFT LEVER
33262ESHAFT, SELECT LEVER
33262FSEAL, OIL (FOR SELECT LEVER SHAFT)
33264APLUG, INTERLOCK HOLE
33264CBALL (FOR SHIFT INTERLOCK)
33273WASHER, SHIFT LEVER SHAFT HOUSING, NO.1
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
33276CSEAT, SELECT SPRING
33276ESEAT, SELECT SPRING, NO.1
33277SEAT, SELECT SPRING, NO.2
8401
9010509007
main90105-09007
9010510576
main90105-10576
9011908332
main90119-08332
9052142003
main90521-42003
38 parts on this diagram · 1 diagram in section
