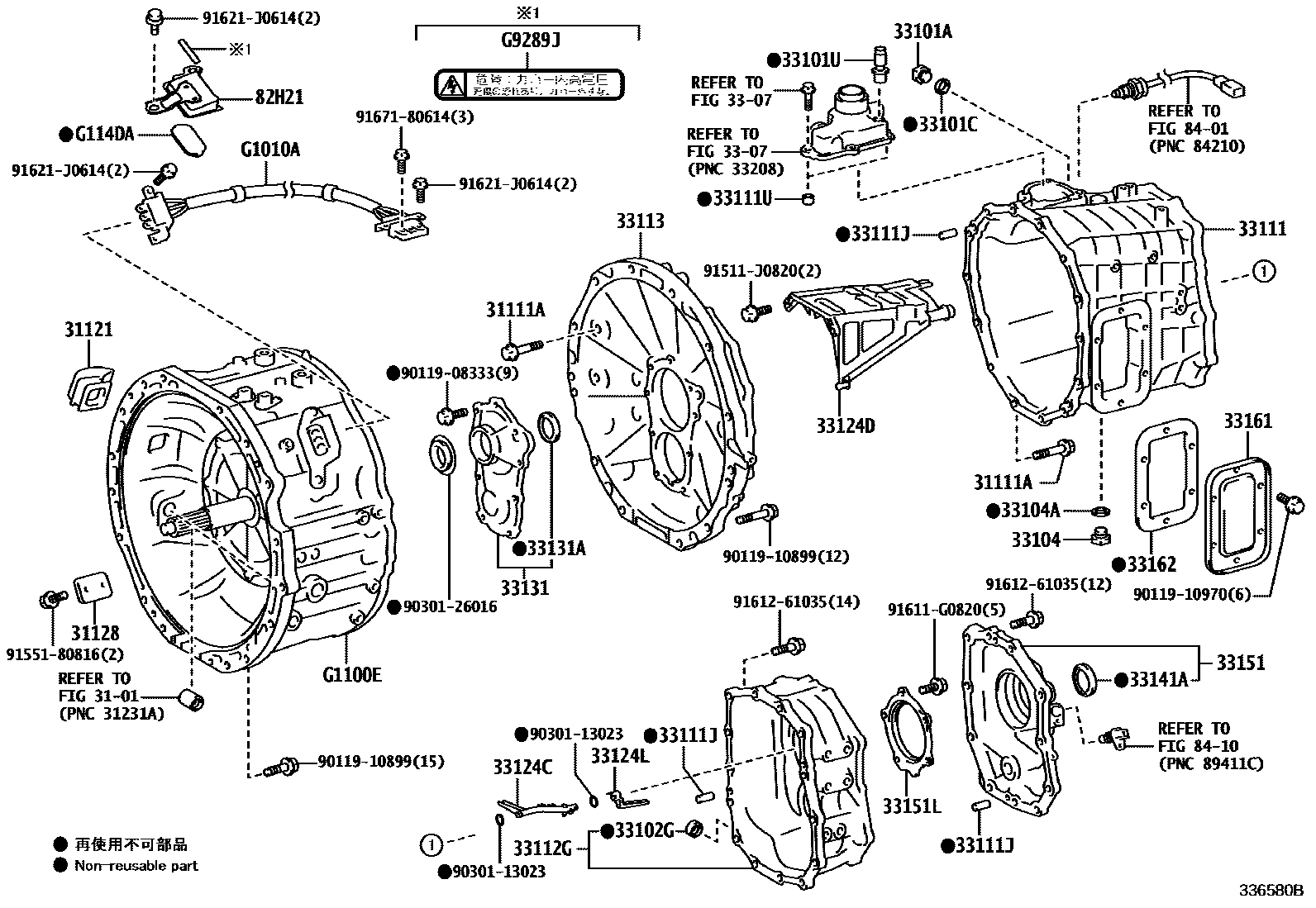

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
3101
31111ABOLT(FOR CLUTCH HOUSING & TRANSMISSION CASE SETTING)
31121COVER, CLUTCH HOUSING, NO.1
31128COVER, CLUTCH HOUSING UNDER
3307
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33102GSEAL, TYPE T OIL(FOR MANUAL TRANSMISSION CASE)
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111CASE, MANUAL TRANSMISSION
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)
33112GCASE, TRANSMISSION, REAR
33113ADAPTER, TRANSMISSION CASE, FRONT
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33124DPIPE, OIL RECEIVER, NO.2(MTM)
33124LPIPE, OIL RECEIVER, N0.3(MTM)
33131RETAINER, BEARING, FRONT(MTM)
33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
33141ASEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)
33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151LRETAINER, BEARING, REAR
33161COVER, MANUAL TRANSMISSION POWER TAKE-OFF
33162GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER
82H21COVER, CONNECTOR
8401
8410
G1010AWIRE ASSY, MOTOR STATOR
G1100EMOTOR ASSY, HYBRID VEHICLE
G114DACAP, MOTOR CABLE TERMINAL
G9289JLABEL, BATTERY CAUTION, NO.7
9011908333
main90119-08333
9011910899
main90119-10899
9011910970
main90119-10970
9030113023
main90301-13023
9030126016
main90301-26016
91511J0820
main91511-J0820
9155180816
main91551-80816
91611G0820
main91611-G0820
9161261035
main91612-61035
91621J0614
main91621-J0614
9167180614
main91671-80614
44 parts on this diagram · 1 diagram in section
