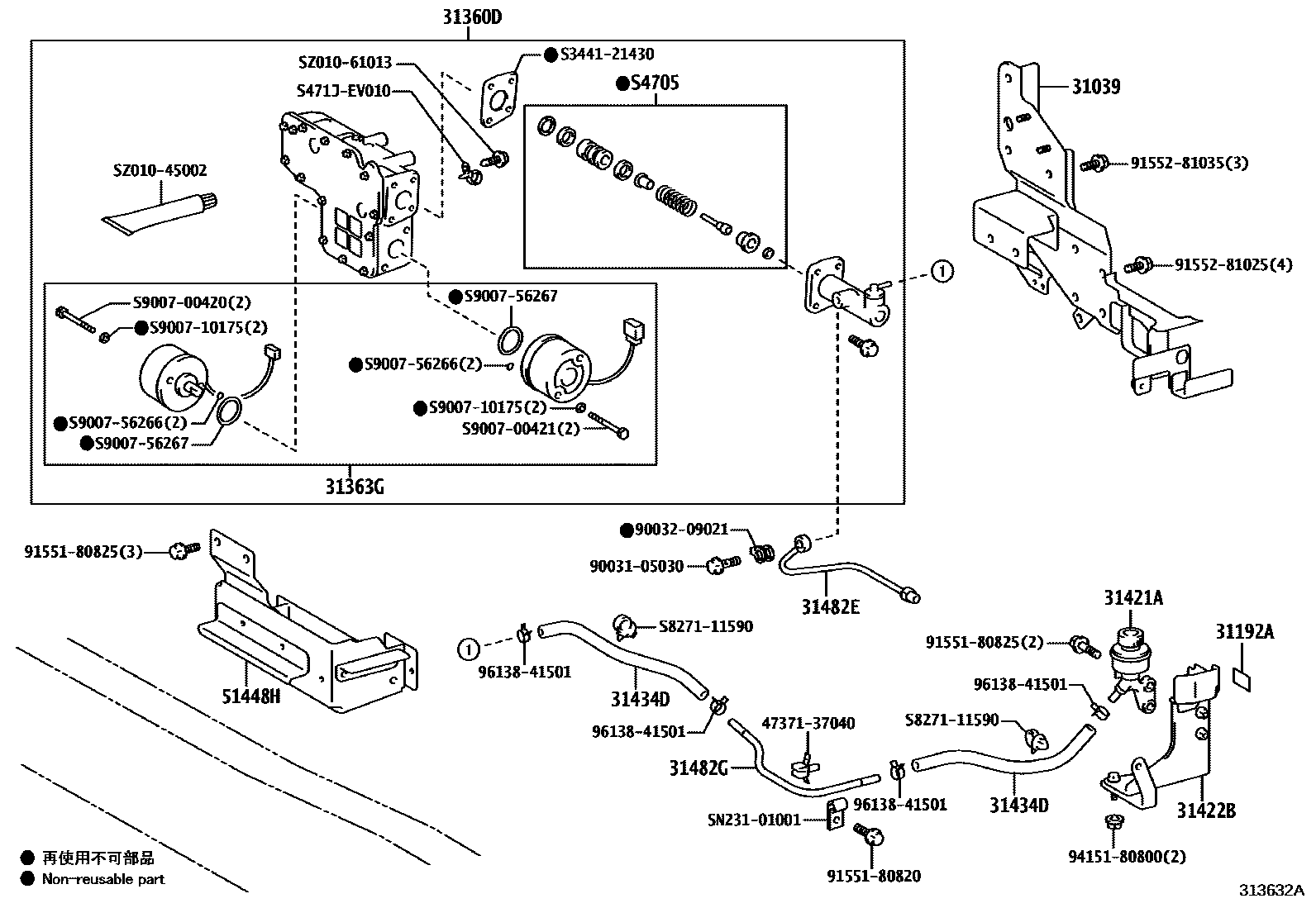

31039SUPPORT SUB-ASSY, CLUTCH RELEASE SECTOR

main31039-37021iXKC605,XKU605,645,655202103

31192ALABEL, CLUTCH NOTICE

main31192-37020iXKC605,XKU605,645,655202103

31360DACTUATOR ASSY, CLUTCH

main31360-37020iXKC605,XKU605,645,655202103

31363GMOTOR, CLUTCH ACTUATOR

main31363-37010iXKC605,XKU605,645,655202103

31421ARESERVOIR, CLUTCH ACTUATOR

main31421-37010iXKC605,XKU605,645,655202103

31422BBRACKET, CLUTCH RESERVOIR

main31422-37020iXKC605,XKU605,645,655202103

31434DTUBE, CLUTCH RESERVOIR

main31434-37310×2iXKC605,XKU605,645,655202103

31482ETUBE, CLUTCH RELEASE, NO.1

main31482-37431iXKC605,XKU605,645,655202103

31482GTUBE, CLUTCH RELEASE, NO.2

main31482-37450iXKC605,XKU605,645,655202103

51448HPROTECTOR, MOTOR UNDER SIDE

main51448-37300iXKC605,XKU605,645,655202103

S4705REPAIR KIT, CUP

mainS470591370iXKC605,XKU605,645,655202103

4737137040BRACKET, CONNECTOR

main47371-37040

9003105030

main90031-05030

9003209021

main90032-09021

9155180820

main91551-80820

9155180825

main91551-80825

9155281025

main91552-81025

9155281035

main91552-81035

9415180800

main94151-80800

9613841501

main96138-41501

S344121430

mainS3441-21430

S471JEV010

mainS471J-EV010

S827111590

mainS8271-11590

S900700420

mainS9007-00420

S900700421

mainS9007-00421

S900710175

mainS9007-10175

S900756266

mainS9007-56266

S900756267

mainS9007-56267

SN23101001

mainSN231-01001

SZ01045002

mainSZ010-45002

SZ01061013

mainSZ010-61013

31 parts on this diagram · 1 diagram in section
