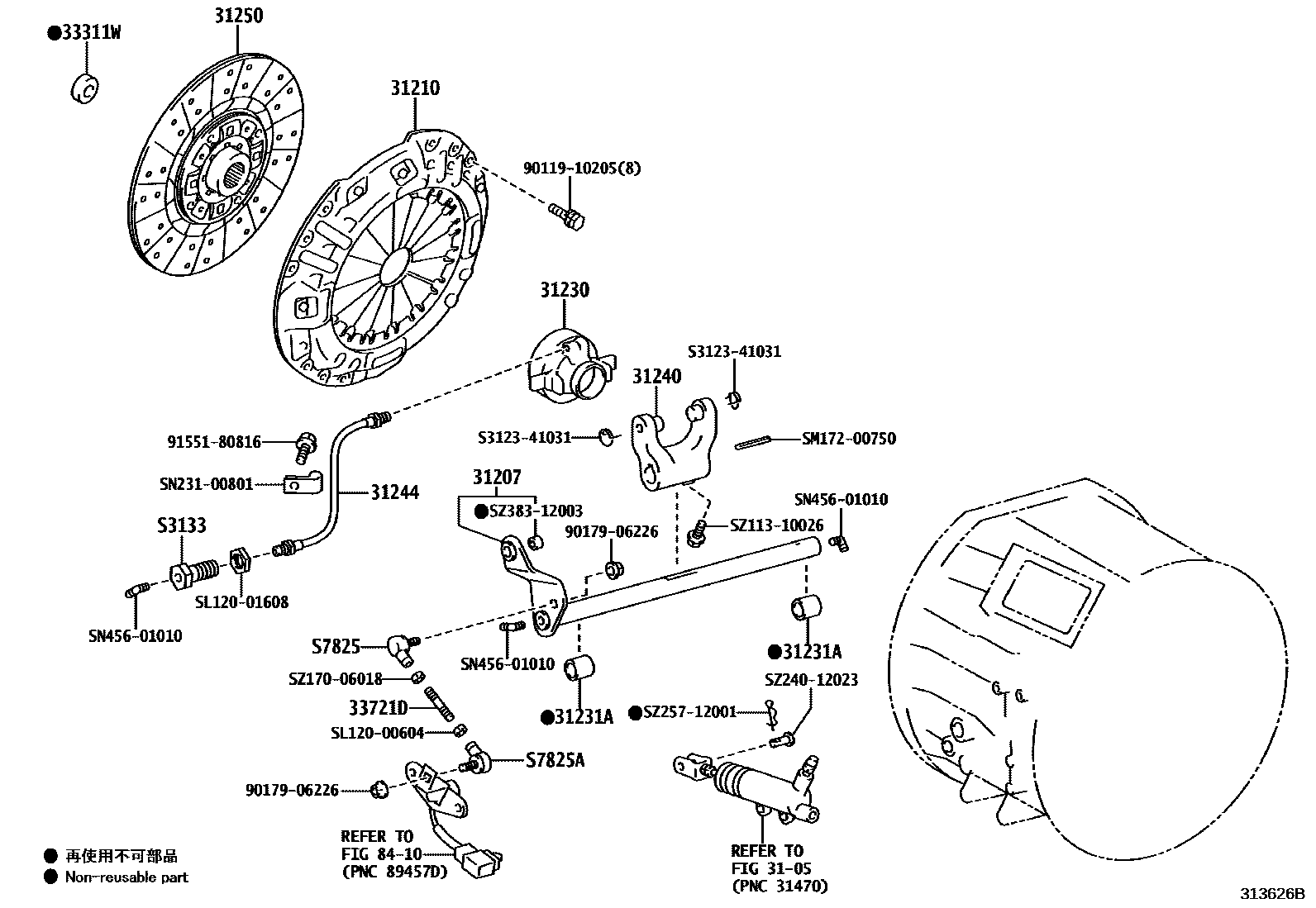

CLUTCH & RELEASE FORK

3105CLUTCH RELEASE CYLINDER

→ Go to FIG 31-05

31207LEVER SUB-ASSY, CLUTCH RELEASE FORK

main31207-37010iXKC605,XKU605,645,655202103

31210COVER ASSY, CLUTCH

main31210-37190iXKC605,XKU605,645,655202103

31230BEARING ASSY, CLUTCH RELEASE

main31230-37070iXKC605,XKU605,645,655202103

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main31231-37080iXKC605,XKU605,645,655202103

31240FORK ASSY, CLUTCH RELEASE

main31240-E0031iXKC605,XKU605,645,655202103

31244TUBE, RELEASE BEARING HUB TO UNION

main31244-37050iXKC605,XKU605,645,655202103

31250DISC ASSY, CLUTCH

main31250-37281iXKC605,XKU605,645,655202103

33311WBEARING (FOR INPUT SHAFT)

main90363-17037iXKC605,XKU605,645,655202103

33721DROD, CONNECTING

mainSZ12730039iXKC605,XKU605,645,655202103

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

S3133JOINT, CLUTCH GREASE HOSE

mainS3133E0010iXKC605,XKU605,645,655202103

S7825JOINT ASSY, LINK ROD

mainS782501540iXKC605,XKU605,645,655202103

S7825AJOINT ASSY, LINK ROD, NO.2

mainS782501550iXKC605,XKU605,645,655202103

9011910205

main90119-10205

9017906226

main90179-06226

9155180816

main91551-80816

S312341031SPRING, RELEASE FORK ANTI-RATTLE

mainS3123-41031

SL12000604

mainSL120-00604

SL12001608

mainSL120-01608

SM17200750

mainSM172-00750

SN23100801

mainSN231-00801

SN45601010

mainSN456-01010

SZ11310026

mainSZ113-10026

SZ17006018

mainSZ170-06018

SZ24012023

mainSZ240-12023

SZ25712001

mainSZ257-12001

SZ38312003

mainSZ383-12003

28 parts on this diagram · 1 diagram in section
