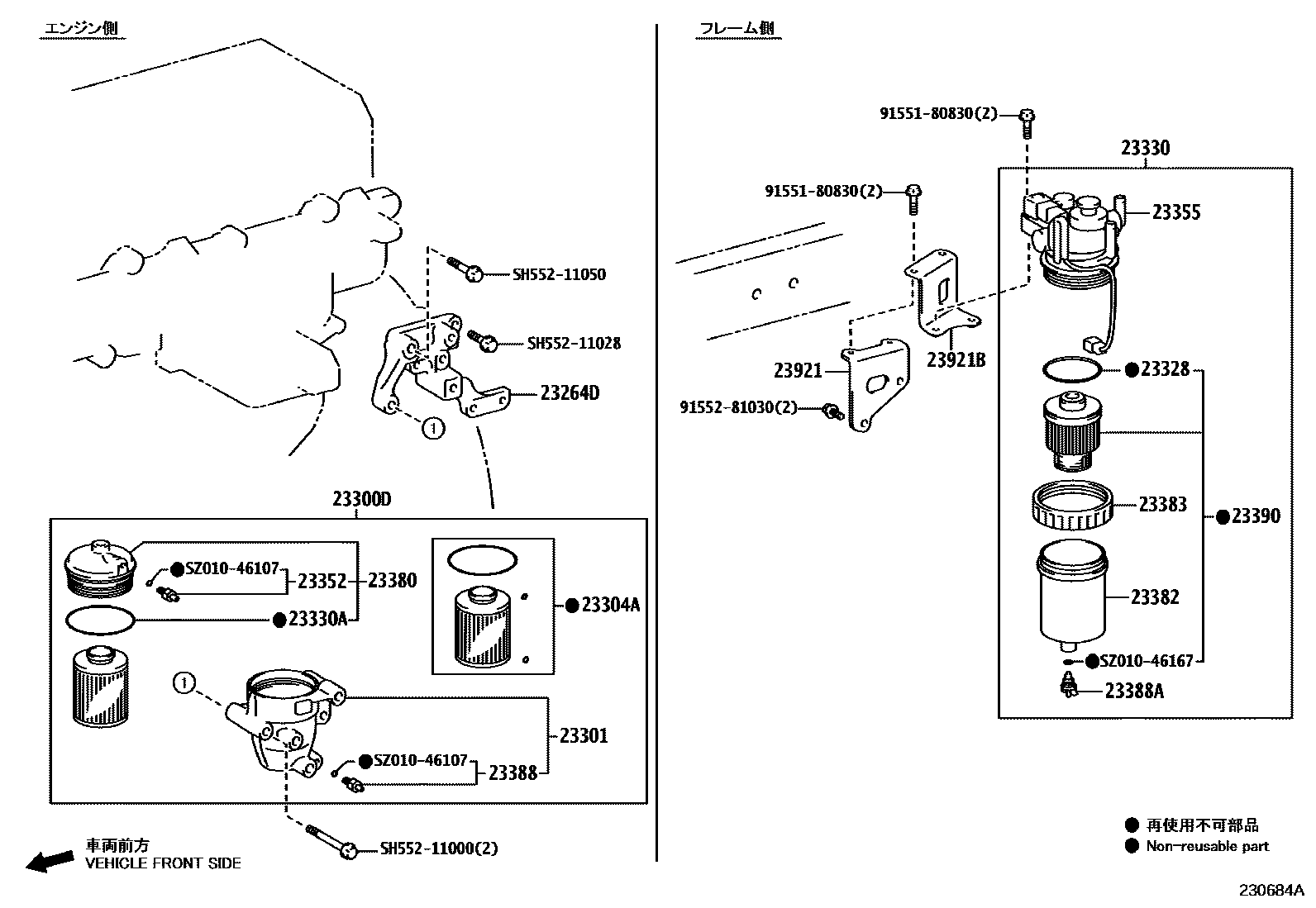

FUEL FILTER

23264DBRACKET, FUEL FILTER

main23264-78090iN04C..XKC605,XKU605,645,655202103

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-78501iN04C..XKC605,XKU605,645,655202103

23301BODY SUB-ASSY, FUEL FILTER

main23301-78501iN04C..XKC605,XKU605,645,655202103

23304AELEMENT SET, FUEL FILTER

main23304-EV570iN04C..XKC605,XKU605,645,655202103

23328GASKET(FOR FUEL FILTER)

main23385-78150iN04C..XKC605,XKU605,645,655202103

23330PREFILTER ASSY, FUEL

main23330-78500supersedes 23330-78490iN04C..XKC605,XKU605,645,655202103

23330AGASKET

main23386-78500iN04C..XKC605,XKU605,645,655202103

23352PLUG, BLEEDER

main23388-EV020iN04C..XKC605,XKU605,645,655202103

23355ELEMENT, PREFILTER

main23355-78500supersedes 23355-78292iN04C..XKC605,XKU605,645,655202103

23380CAP ASSY, FUEL FILTER

main23380-78501iN04C..XKC605,XKU605,645,655202103

23382CASE, FUEL FILTER

main23382-78152iN04C..XKC605,XKU605,645,655202103

23383UNION, FUEL FILTER

main23383-78150iN04C..XKC605,XKU605,645,655202103

23388PLUG, FUEL FILTER DRAIN

main23388-EV020iN04C..XKC605,XKU605,645,655202103

23388APLUG, FUEL FILTER DRAIN

main23388-EV060iN04C..XKC605,XKU605,645,655202103

23390ELEMENT ASSY, FUEL FILTER

main23304-78150iN04C..XKC605,XKU605,645,655202103

23921SUPPORT, FUEL FILTER

main23921-78561iN04C..XKC605,XKU605,645,655202103

23921BBRACKET(FOR FUEL FILTER)

main23921-78541iN04C..XKC605,XKU605,645,655202103

9155180830

main91551-80830

9155281030

main91552-81030

SH55211000

mainSH552-11000

SH55211028

mainSH552-11028

SH55211050

mainSH552-11050

SZ01046107

mainSZ010-46107

SZ01046167

mainSZ010-46167

24 parts on this diagram · 1 diagram in section
