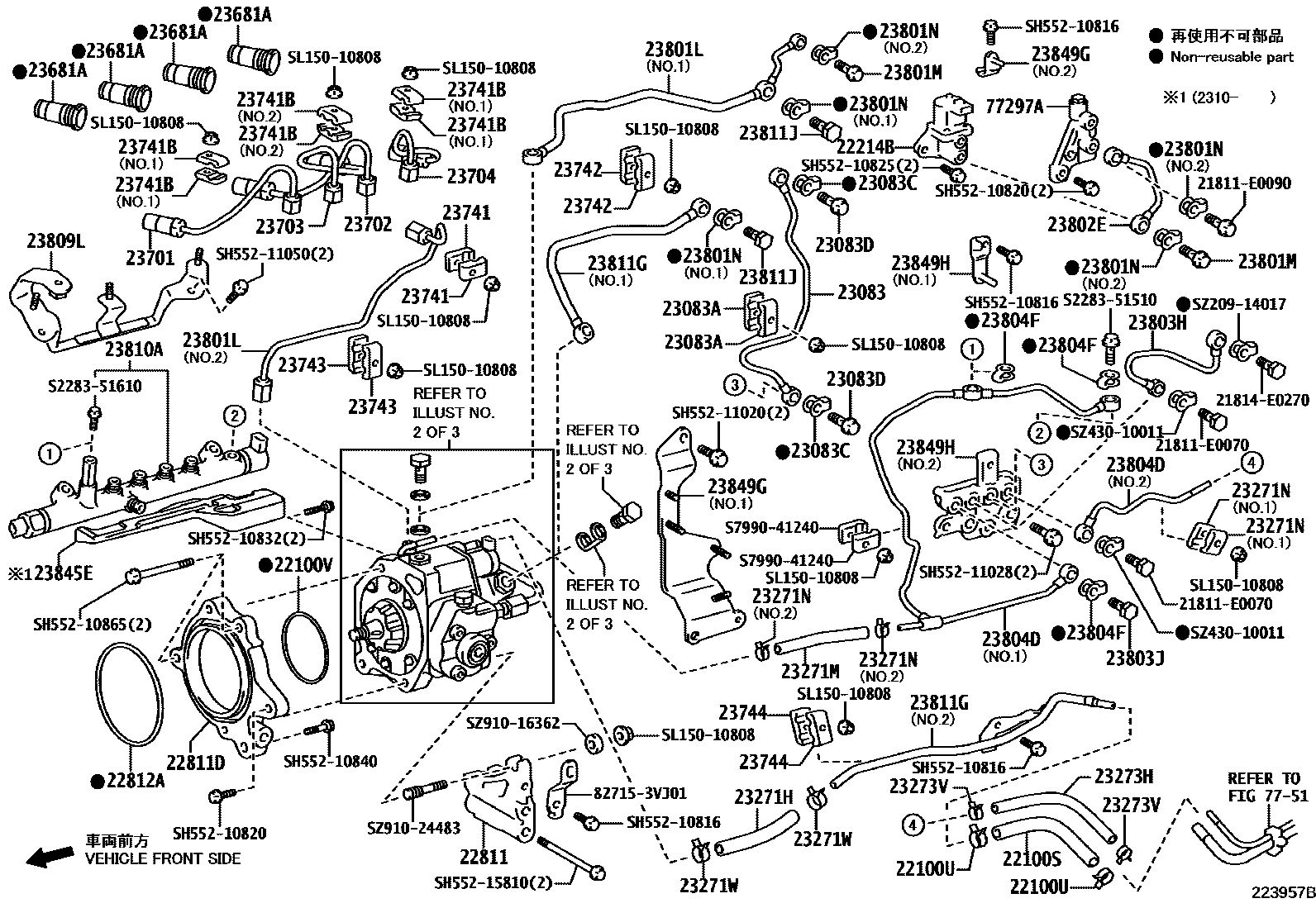

INJECTION PUMP ASSEMBLY
22100PUMP ASSY, INJECTION OR SUPPLY
22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
22100UCLIP, HOSE FUEL(FOR INJECTION PUMP)
22100VRING, O(FOR INJECTION PUMP)
22214BVALVE ASSY, FUEL ADDITION CUT
22811STAY, INJECTION PUMP, NO.1
22811DSTAY, INJECTION PUMP, NO.2
22812ARING, O
23083PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3
23083ACLAMP, NOZZLE LEAKAGE
23083CGASKET(NOZZLE LEKAGE PIPE NO.3)
23083DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23271HHOSE, FUEL, NO.1
23271MHOSE, FUEL
23271NCLIP, HOSE
23271WCLIP(FOR FUEL HOSE NO.1)
23273HHOSE, FUEL, NO.2
23273VCLIP(FOR FUEL HOSE NO.2)
23681ASEAL, NOZZLE HOLDER
23701PIPE SUB-ASSY, INJECTION, NO.1
23702PIPE SUB-ASSY, INJECTION, NO.2
23703PIPE SUB-ASSY, INJECTION, NO.3
23704PIPE SUB-ASSY, INJECTION, NO.4
23741CLAMP, INJECTION PIPE, NO.1
23741BCLAMP, INJECTION PIPE
23742CLAMP, INJECTION PIPE, NO.2
23743CLAMP, INJECTION PIPE, NO.3
23744CLAMP, INJECTION PIPE, NO.4
23801LPIPE SUB-ASSY, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23801MBOLT, UNION
23801NGASKET
23802EPIPE SUB-ASSY, FUEL
23803HPIPE SUB-ASSY, FUEL RETURN
23803JBOLT, UNION(FOR FUEL RETURN PIPE)
23804DPIPE SUB-ASSY, FUEL, NO.4
23804FGASKET(FOR FUEL PIPE NO.4)
23809LSUPPORT SUB-ASSY, FUEL PIPE
23810ARAIL ASSY, COMMON
23811GPIPE, FUEL, NO.1
23811JBOLT, UNION
23845EINSULATOR, FUEL PIPE
77297ACONNECTOR, FUEL TUBE
7751
21811E0070BOLT, UNION NIPPLE
main21811-E0070
21811E0090BOLT, UNION NIPPLE
main21811-E0090
21814E0270BOLT, FUEL INLET
main21814-E0270
827153VJ01BRACKET,WIRING HARNESS CLAMP
main82715-3VJ01
S228351510
mainS2283-51510
S228351610
mainS2283-51610
S799041240CLIP SUB-ASSY
mainS7990-41240
SH55210816
mainSH552-10816
SH55210820
mainSH552-10820
SH55210825
mainSH552-10825
SH55210832
mainSH552-10832
SH55210840
mainSH552-10840
SH55210865
mainSH552-10865
SH55211020
mainSH552-11020
SH55211028
mainSH552-11028
SH55211050
mainSH552-11050
SH55215810
mainSH552-15810
SL15010808
mainSL150-10808
SZ20914017
mainSZ209-14017
SZ43010011WASHER, SOFT, NO.1
mainSZ430-10011
SZ91016362
mainSZ910-16362
SZ91024483
mainSZ910-24483
67 parts on this diagram · 3 diagrams in section
