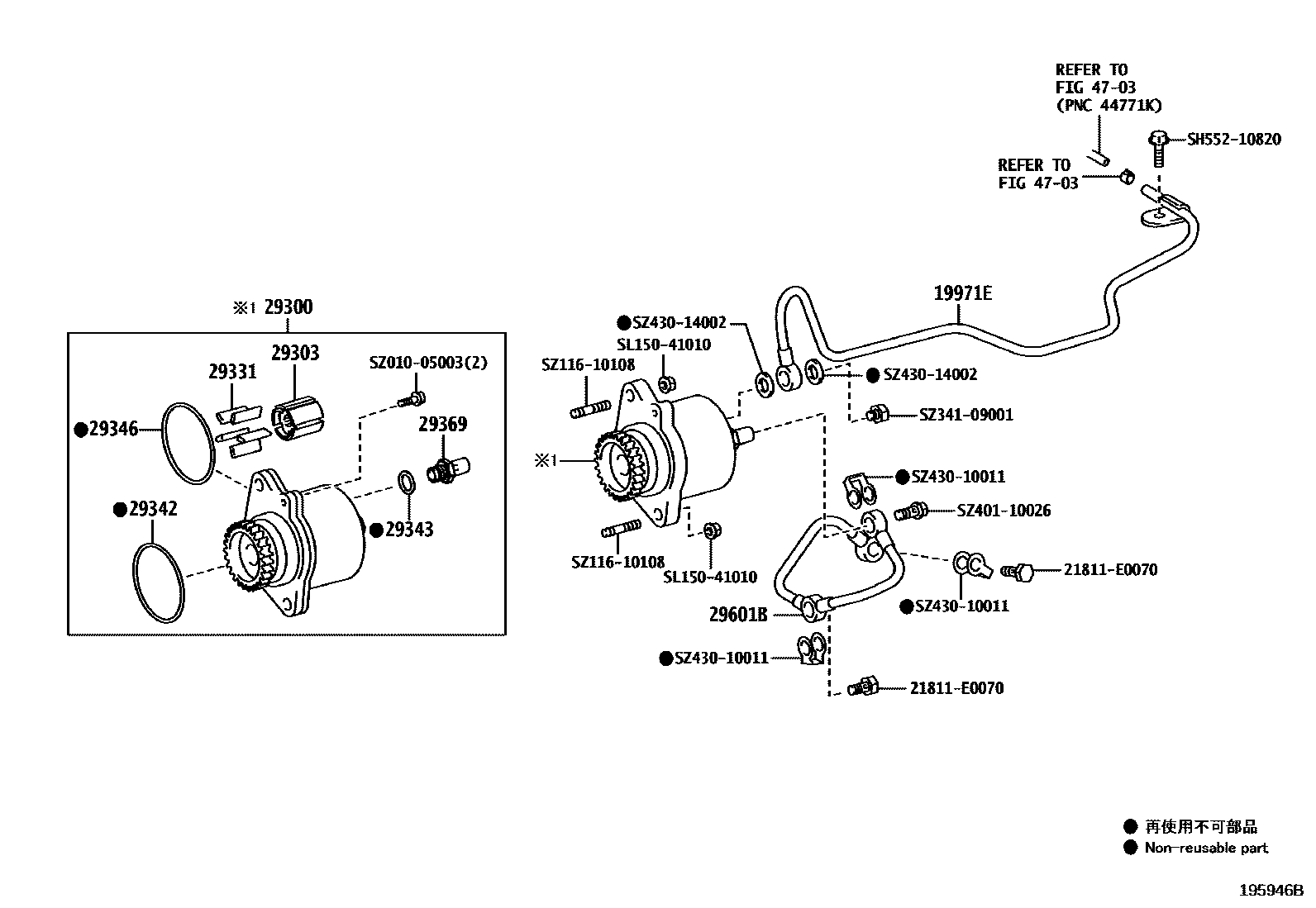

VACUUM PUMP

19971EPIPE, VACUUM

main87207-37F61iN04C..XKC605,XKU605,645,655202103

29300PUMP ASSY, VACUUM

main29300-E0090iN04C..XKC605,XKU605,645,655202103

29303ROTOR SUB-ASSY, VACUUM PUMP

main29303-EV020iN04C..XKC605,XKU605,645,655202103

29331BLADE, VACUUM PUMP, A

main29331-EV020×5iN04C..XKC605,XKU605,645,655202103

29342PACKING, VACUUM PUMP

main29343-EV030iN04C..XKC605,XKU605,645,655202103

29343RING, O VACUUM PUMP, NO.1

main29342-EV010iN04C..XKC605,XKU605,645,655202103

29346RING, O VACUUM PUMP COVER

main29346-EV010iN04C..XKC605,XKU605,645,655202103

29369VALVE SUB-ASSY, CHECK

main29369-EV060iN04C..XKC605,XKU605,645,655202103

29601BPIPE SUB-ASSY, OIL(FOR VACUUM PUMP)

main29601-E0320iN04C..XKC605,XKU605,645,655202103

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

21811E0070BOLT, UNION NIPPLE

main21811-E0070

SH55210820

mainSH552-10820

SL15041010

mainSL150-41010

SZ01005003

mainSZ010-05003

SZ11610108

mainSZ116-10108

SZ34109001

mainSZ341-09001

SZ40110026

mainSZ401-10026

SZ43010011WASHER, SOFT, NO.1

mainSZ430-10011

SZ43014002WASHER, SOFT, NO.1

mainSZ430-14002

19 parts on this diagram · 1 diagram in section
